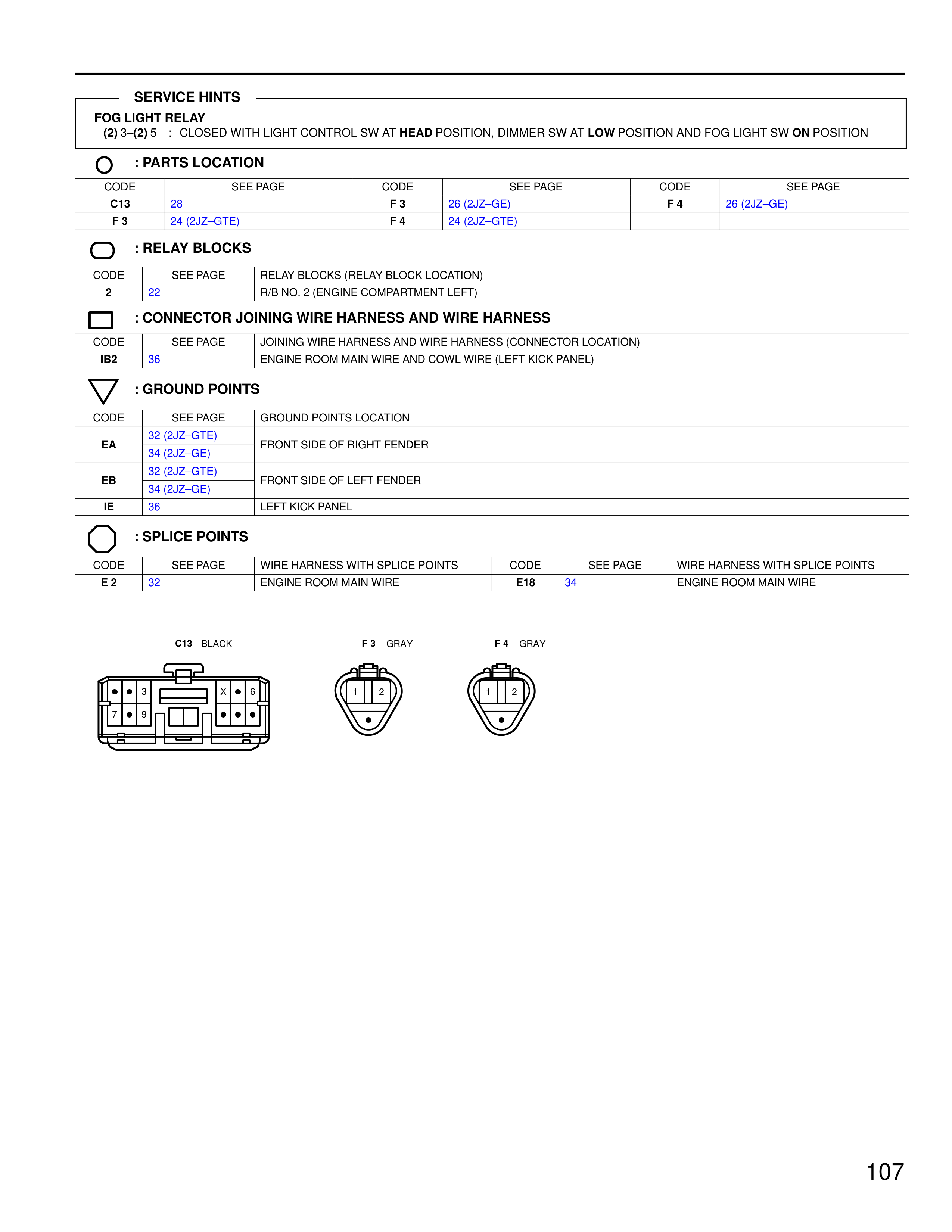

SERVICE HINTS
FOG LIGHT RELAY
(2) 3–(2) 5 : CLOSED WITH LIGHT CONTROL SW AT HEAD POSITION, DIMMER SW AT LOW POSITION AND FOG LIGHT SW ON POSITION

: PARTS LOCATION
CODE | SEE PAGE | CODE | SEE PAGE | CODE | SEE PAGE
C13 | 28 | F3 | 26 (2JZ–GE) | F4 | 26 (2JZ–GE)
F3 | 24 (2JZ–GTE) | F4 | 24 (2JZ–GTE)

: RELAY BLOCKS
CODE | SEE PAGE | RELAY BLOCKS (RELAY BLOCK LOCATION)
2 | 22 | R/B NO. 2 (ENGINE COMPARTMENT LEFT)

: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
CODE | SEE PAGE | JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)
IB2 | 36 | ENGINE ROOM MAIN WIRE AND COWL WIRE (LEFT KICK PANEL)

: GROUND POINTS
CODE | SEE PAGE | GROUND POINTS LOCATION
EA | 32 (2JZ–GTE) 34 (2JZ–GE) | FRONT SIDE OF RIGHT FENDER
EB | 32 (2JZ–GTE) 34 (2JZ–GE) | FRONT SIDE OF LEFT FENDER
IE | 36 | LEFT KICK PANEL

: SPLICE POINTS
CODE | SEE PAGE | WIRE HARNESS WITH SPLICE POINTS | CODE | SEE PAGE | WIRE HARNESS WITH SPLICE POINTS
E2 | 32 | ENGINE ROOM MAIN WIRE | E18 | 34 | ENGINE ROOM MAIN WIRE

C13 BLACK | F3 GRAY | F4 GRAY

[Diagram showing three connector pinouts: C13 (14-pin black connector), F3 (2-pin gray connector), and F4 (2-pin gray connector)]
