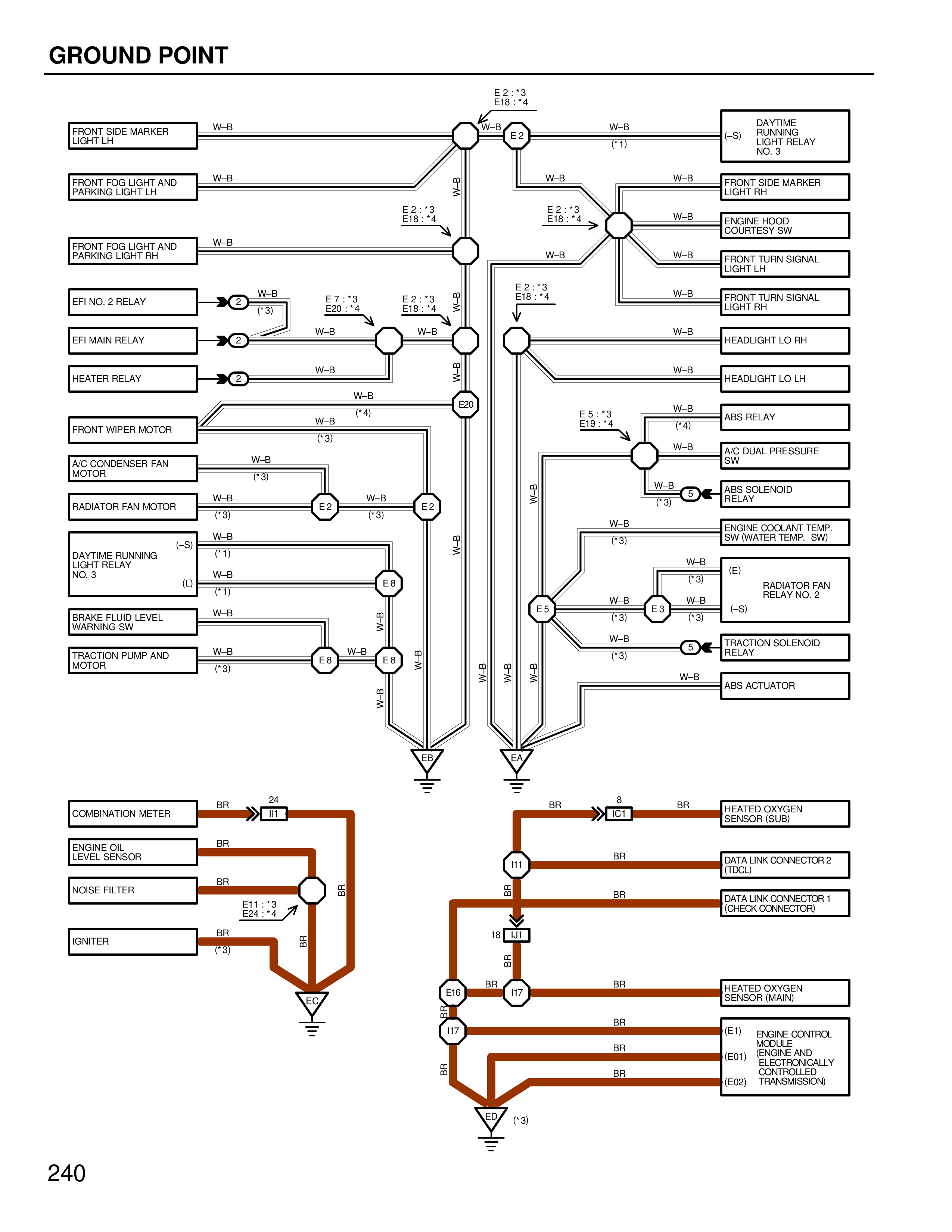

GROUND POINT
E2:*3
E18:*4
FRONT SIDE MARKER LIGHT LH W-B W-B W-B (*1) -SI DAYTIME RUNNING LIGHT RELAY NO. 3
FRONT FOG LIGHT AND PARKING LIGHT LH W-B W-R W-B W-B FRONT SIDE MARKER LIGHT RH
E2:*3
E18:*4 E2:*3
E18:*4 W-B ENGINE HOOD COURTESY SW
FRONT FOG LIGHT AND PARKING LIGHT RH W-B W-B W-B FRONT TURN SIGNAL LIGHT LH
E2:*3
E18:*4 W-B FRONT TURN SIGNAL LIGHT RH
EFI NO. 2 RELAY W-B (*3) E7:*3
E20:*4 E2:*3
E18:*4 W-R
EFI MAIN RELAY W-B W-B W-B HEADLIGHT LO RH
HEATER RELAY W-B W-B W-B HEADLIGHT LO LH
W-B (*4) E20
FRONT WIPER MOTOR W-B (*3) E5:*3
E19:*4 W-B (*4) ABS RELAY
A/C CONDENSER FAN MOTOR W-B (*3) W-B (*3) ABS DUAL PRESSURE SW
RADIATOR FAN MOTOR W-B (*3) E2 W-B (*3) E2 W-B (*3) ABS SOLENOID RELAY
W-B (*3) ENGINE COOLANT TEMP. SW (WATER TEMP. SW)
(-S) W-B
DAYTIME RUNNING LIGHT RELAY NO. 3 (*1) W-B (*1) E1 W-B (*3) (E) RADIATOR FAN RELAY NO. 2
(L)
BRAKE FLUID LEVEL WARNING SW W-B W-R E8 W-B (*3) E1 W-B (*3) (-S)
TRACTION PUMP AND MOTOR W-B (*3) E9 W-B E1 W-R W-B (*3) TRACTION SOLENOID RELAY
W-B
W-R W-R W-R W-R ABS ACTUATOR
E3 E6
24
COMBINATION METER BR III 8
BR BR HEATED OXYGEN SENSOR (SUB) E1
ENGINE OIL LEVEL SENSOR BR BR DATA LINK CONNECTOR 2 (TDCL) I1
NOISE FILTER BR BR BR DATA LINK CONNECTOR 1 (CHECK CONNECTOR)
E11:*3
E19:*4
IGNITER BR (*3) BR 18 U1
BR
BR
E16 BR I7 BR HEATED OXYGEN SENSOR (MAIN)
BR
I7 BR (E1) ENGINE CONTROL MODULE
BR (E01) (ENGINE AND TRANSMISSION ELECTRONICALLY CONTROLLED TRANSMISSION)
BR (E02)
(*3)
240
