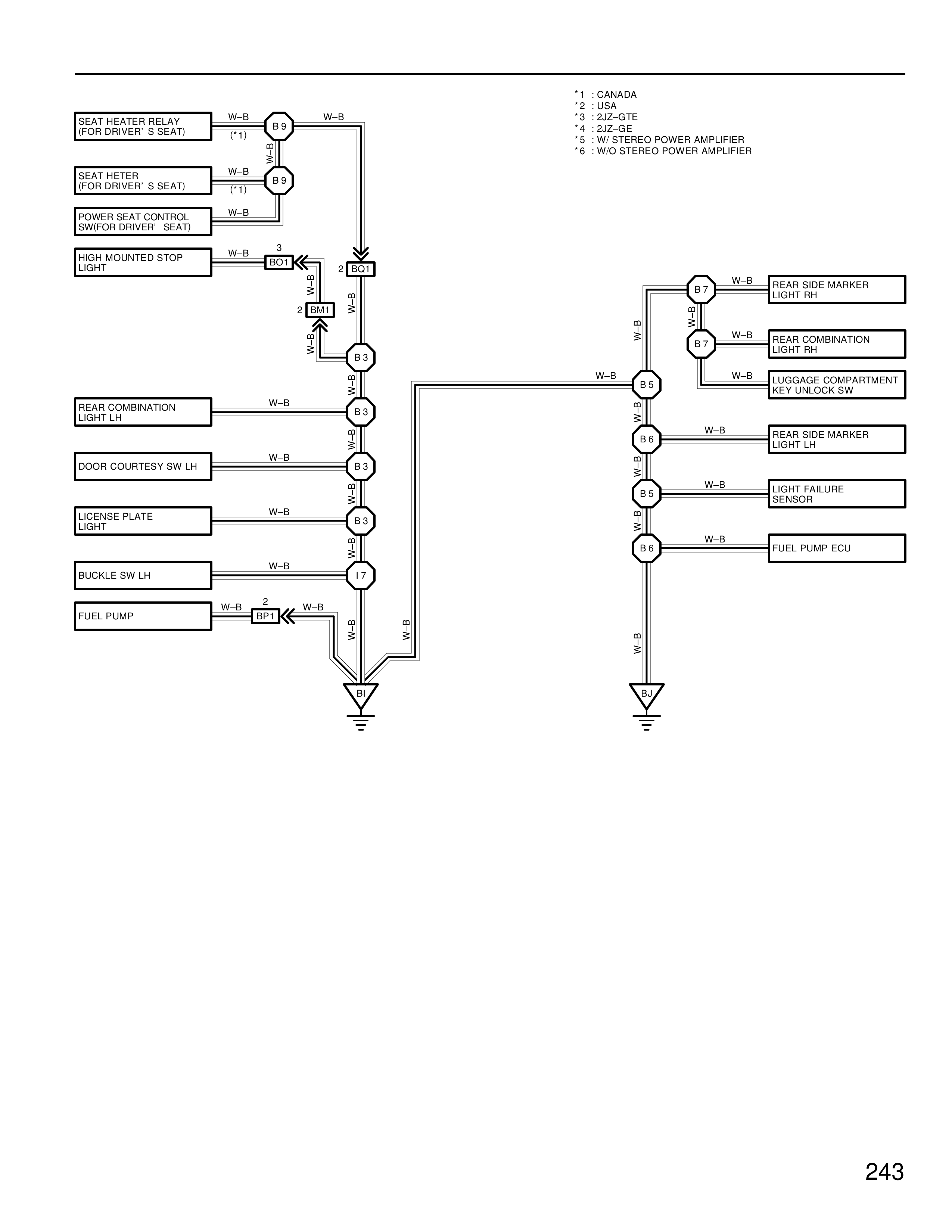

GP/Ground Points, page 4

*1 : CANADA
*2 : USA
*3 : 2JZ-GTE
*4 : 2JZ-GE
*5 : W/ STEREO POWER AMPLIFIER
*6 : W/O STEREO POWER AMPLIFIER

SEAT HEATER RELAY
(FOR DRIVER'S SEAT)
W-B
D-3
W-B
(-1)

SEAT HETER
(FOR DRIVER'S SEAT)
W-B
D-3
(-1)

POWER SEAT CONTROL
SW(FOR DRIVER'S SEAT)
W-B

HIGH MOUNTED STOP
LIGHT
W-B
BM1
2
BM1
*2
BM1
W-A
2

B-3
B-m

REAR COMBINATION
LIGHT LH
W-B
B-3
B-m

DOOR COURTESY SW LH
W-B
B-3
B-m

LICENSE PLATE
LIGHT
W-B
B-3
B-m

BUCKLE SW LH
W-B
J-7
B-m

FUEL PUMP
W-B
2
BP1
W-B
B-m
B-m

B-7
B-m
W-B
REAR SIDE MARKER
LIGHT RH

W-B
B-7
B-m
W-B
REAR COMBINATION
LIGHT RH

B-5
B-m
W-B
LUGGAGE COMPARTMENT
KEY UNLOCK SW

B-6
B-m
W-B
REAR SIDE MARKER
LIGHT LH

B-5
B-m
W-B
LIGHT FAILURE
SENSOR

B-6
B-m
W-B
FUEL PUMP ECU

W-B
W-B

243
