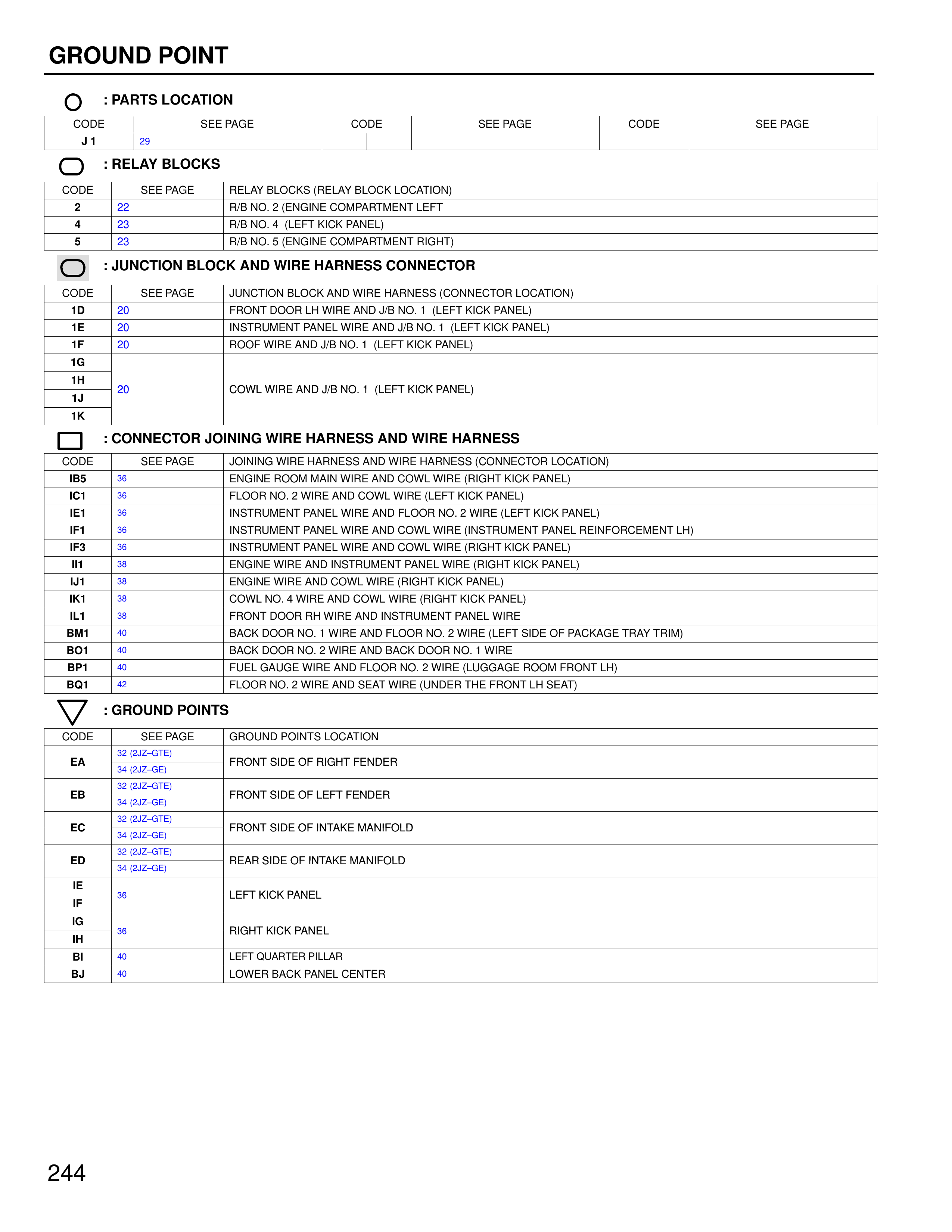

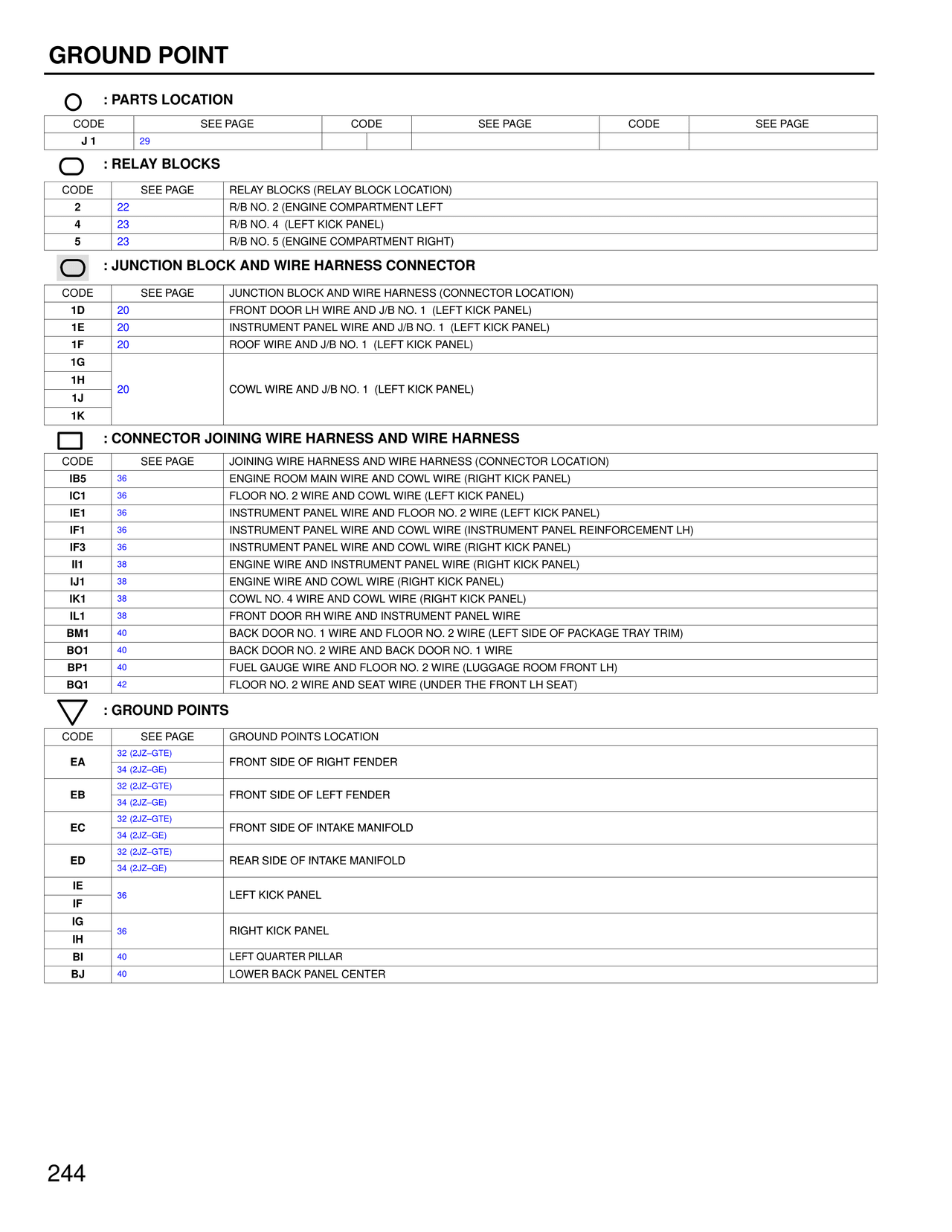

GROUND POINT : PARTS LOCATION CODE | SEE PAGE | CODE | SEE PAGE | CODE | SEE PAGE J1 | 29 : RELAY BLOCKS CODE | SEE PAGE | RELAY BLOCKS (RELAY BLOCK LOCATION) 2 | 22 | R/B NO. 2 (ENGINE COMPARTMENT LEFT 4 | 23 | R/B NO. 4 (LEFT KICK PANEL) 5 | 23 | R/B NO. 5 (ENGINE COMPARTMENT RIGHT) : JUNCTION BLOCK AND WIRE HARNESS CONNECTOR CODE | SEE PAGE | JUNCTION BLOCK AND WIRE HARNESS (CONNECTOR LOCATION) 1D | 20 | FRONT DOOR LH WIRE AND J/B NO. 1 (LEFT KICK PANEL) 1E | 20 | INSTRUMENT PANEL WIRE AND J/B NO. 1 (LEFT KICK PANEL) 1F | 20 | ROOF WIRE AND J/B NO. 1 (LEFT KICK PANEL) 1G 1H | 20 | COWL WIRE AND J/B NO. 1 (LEFT KICK PANEL) 1J 1K : CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS CODE | SEE PAGE | JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION) IB5 | 36 | ENGINE ROOM MAIN WIRE AND COWL WIRE (RIGHT KICK PANEL) IC1 | 36 | FLOOR NO. 2 WIRE AND COWL WIRE (LEFT KICK PANEL) IE1 | 36 | INSTRUMENT PANEL WIRE AND FLOOR NO. 2 WIRE (LEFT KICK PANEL) IF1 | 36 | INSTRUMENT PANEL WIRE AND COWL WIRE (INSTRUMENT PANEL REINFORCEMENT LH) IF3 | 36 | INSTRUMENT PANEL WIRE AND COWL WIRE (RIGHT KICK PANEL) II1 | 38 | ENGINE WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL) IJ1 | 38 | ENGINE WIRE AND COWL WIRE (RIGHT KICK PANEL) IK1 | 38 | COWL NO. 4 WIRE AND COWL WIRE (RIGHT KICK PANEL) IL1 | 38 | FRONT DOOR RH WIRE AND INSTRUMENT PANEL WIRE BM1 | 40 | BACK DOOR NO. 1 WIRE AND FLOOR NO. 2 WIRE (LEFT SIDE OF PACKAGE TRAY TRIM) BO1 | 40 | BACK DOOR NO. 2 WIRE AND BACK DOOR NO. 1 WIRE BP1 | 40 | FUEL GAUGE WIRE AND FLOOR NO. 2 WIRE (LUGGAGE ROOM FRONT LH) BQ1 | 42 | FLOOR NO. 2 WIRE AND SEAT WIRE (UNDER THE FRONT LH SEAT) : GROUND POINTS CODE | SEE PAGE | GROUND POINTS LOCATION EA | 32 (2JZ-GTE) | FRONT SIDE OF RIGHT FENDER | 34 (2JZ-GE) EB | 32 (2JZ-GTE) | FRONT SIDE OF LEFT FENDER | 34 (2JZ-GE) EC | 32 (2JZ-GTE) | FRONT SIDE OF INTAKE MANIFOLD | 34 (2JZ-GE) ED | 32 (2JZ-GTE) | REAR SIDE OF INTAKE MANIFOLD | 34 (2JZ-GE) IE | 36 | LEFT KICK PANEL IF IG | 36 | RIGHT KICK PANEL IH BI | 40 | LEFT QUARTER PILLAR BJ | 40 | LOWER BACK PANEL CENTER 244
