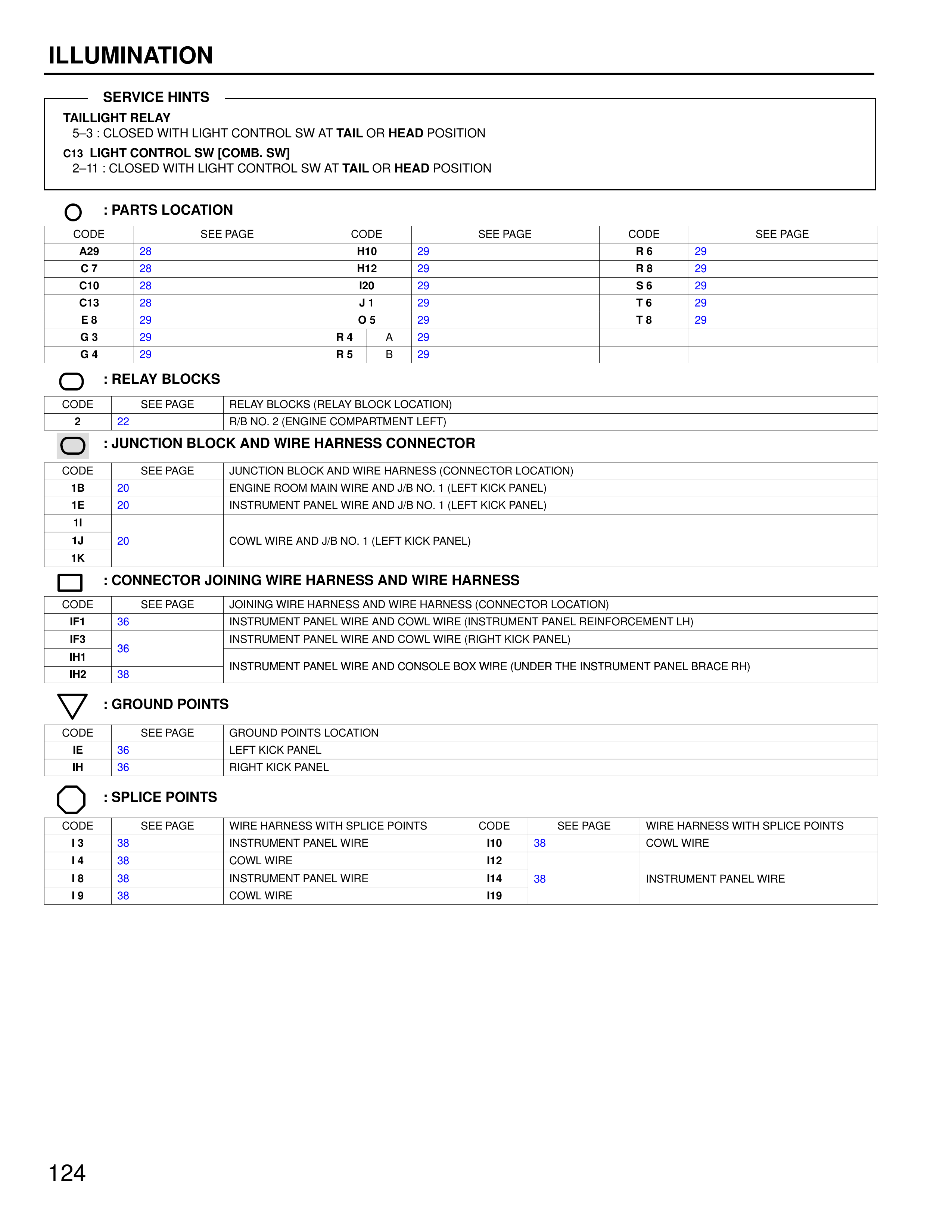

ILLUMINATION SERVICE HINTS TAILLIGHT RELAY 5–3 : CLOSED WITH LIGHT CONTROL SW AT TAIL OR HEAD POSITION C13 LIGHT CONTROL SW (COMB. SW) 2–11 : CLOSED WITH LIGHT CONTROL SW AT TAIL OR HEAD POSITION : PARTS LOCATION CODE SEE PAGE CODE SEE PAGE CODE SEE PAGE A29 28 H10 29 R6 29 C7 28 H12 29 R8 29 C10 28 I20 29 S6 29 C13 28 J1 29 T6 29 E8 29 O5 29 T8 29 G3 29 R4 A 29 G4 29 R5 B 29 : RELAY BLOCKS CODE SEE PAGE RELAY BLOCKS (RELAY BLOCK LOCATION) 2 22 R/B NO. 2 (ENGINE COMPARTMENT LEFT) : JUNCTION BLOCK AND WIRE HARNESS CONNECTOR CODE SEE PAGE JUNCTION BLOCK AND WIRE HARNESS (CONNECTOR LOCATION) 1B 20 ENGINE ROOM MAIN WIRE AND J/B NO. 1 (LEFT KICK PANEL) 1E 20 INSTRUMENT PANEL WIRE AND J/B NO. 1 (LEFT KICK PANEL) 1I 1J 20 COWL WIRE AND J/B NO. 1 (LEFT KICK PANEL) 1K : CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS CODE SEE PAGE JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION) IF1 36 INSTRUMENT PANEL WIRE AND COWL WIRE (INSTRUMENT PANEL REINFORCEMENT LH) IF3 36 INSTRUMENT PANEL WIRE AND COWL WIRE (RIGHT KICK PANEL) IH1 IH2 38 INSTRUMENT PANEL WIRE AND CONSOLE BOX WIRE (UNDER THE INSTRUMENT PANEL BRACE RH) : GROUND POINTS CODE SEE PAGE GROUND POINTS LOCATION IE 36 LEFT KICK PANEL IH 36 RIGHT KICK PANEL : SPLICE POINTS CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS I3 38 INSTRUMENT PANEL WIRE I10 38 COWL WIRE I4 38 COWL WIRE I12 I8 38 INSTRUMENT PANEL WIRE I14 38 INSTRUMENT PANEL WIRE I9 38 COWL WIRE I19
