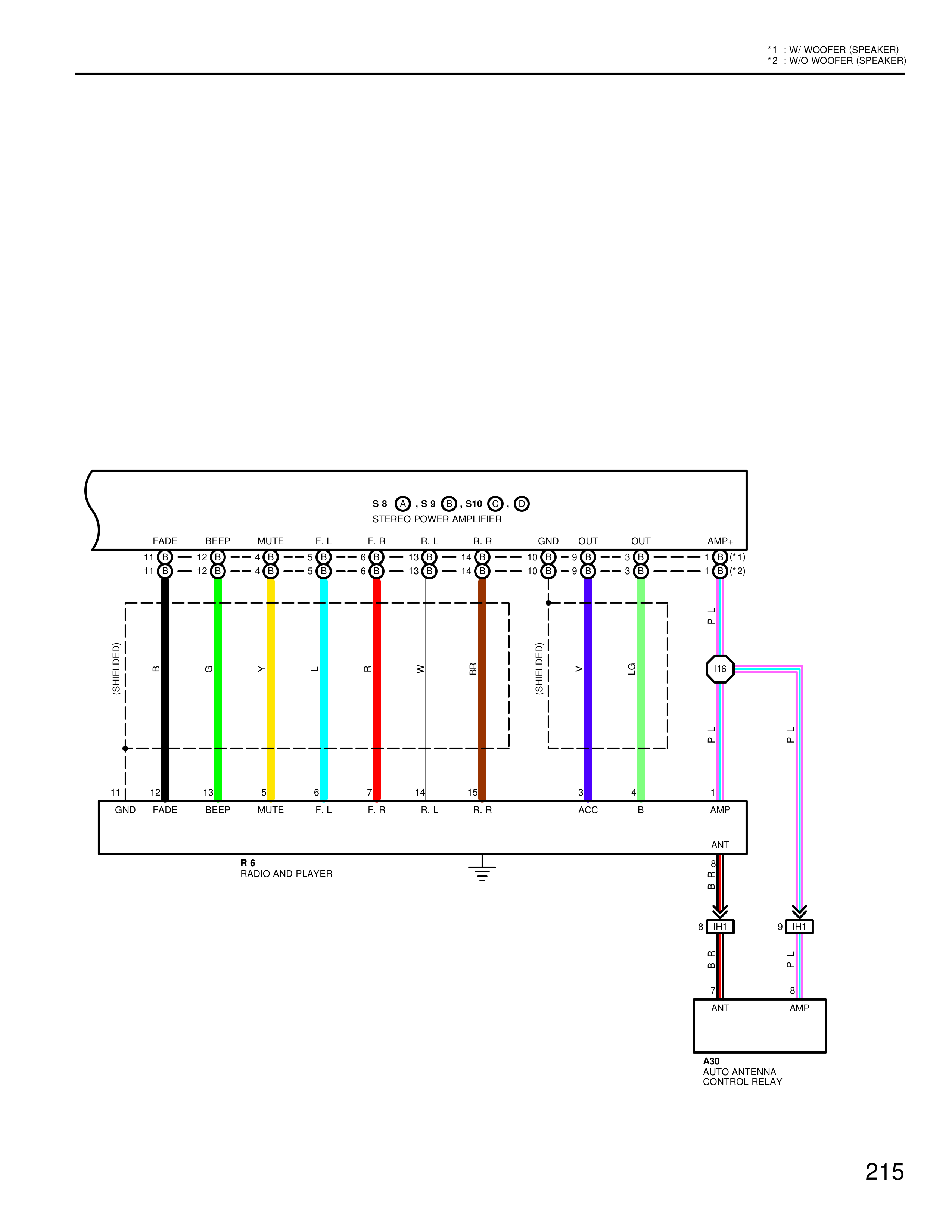

RAP/Radio and Player, page 2

*1 : W/ WOOFER (SPEAKER)
*2 : W/O WOOFER (SPEAKER)

S 8 X · S 9 Y · S10 Z · D
STEREO POWER AMPLIFIER

FADE    BEEP    MUTE    F. L    F. R    R. L    R. R    GND    OUT    OUT    AMP+
11 A - 7 B - 4 C - 5 D - 6 E - 13 F - 14 G - 10 H - 2 I - 3 J - 1 K (*2)
11 A - 12 B - 4 C - 5 D - 6 E - 13 F - 14 G - 10 H - 2 I - 3 J - 1 K (*2)

B    G    Y    L    R    W    BR
(SHIELDED)    (SHIELDED)    V    LG

116

P-L    P+L    P-L    P-L

11    12    13    5    6    7    14    15    3    4    1
GND    FADE    BEEP    MUTE    F. L    F. R    R. L    R. R    ACC    B    AMP

R 6
RADIO AND PLAYER

ANT

B-R

8 TM1    9 TM1

B-R    P-L

7    6
ANT    AMP

A30
AUTO ANTENNA
CONTROL RELAY

215
