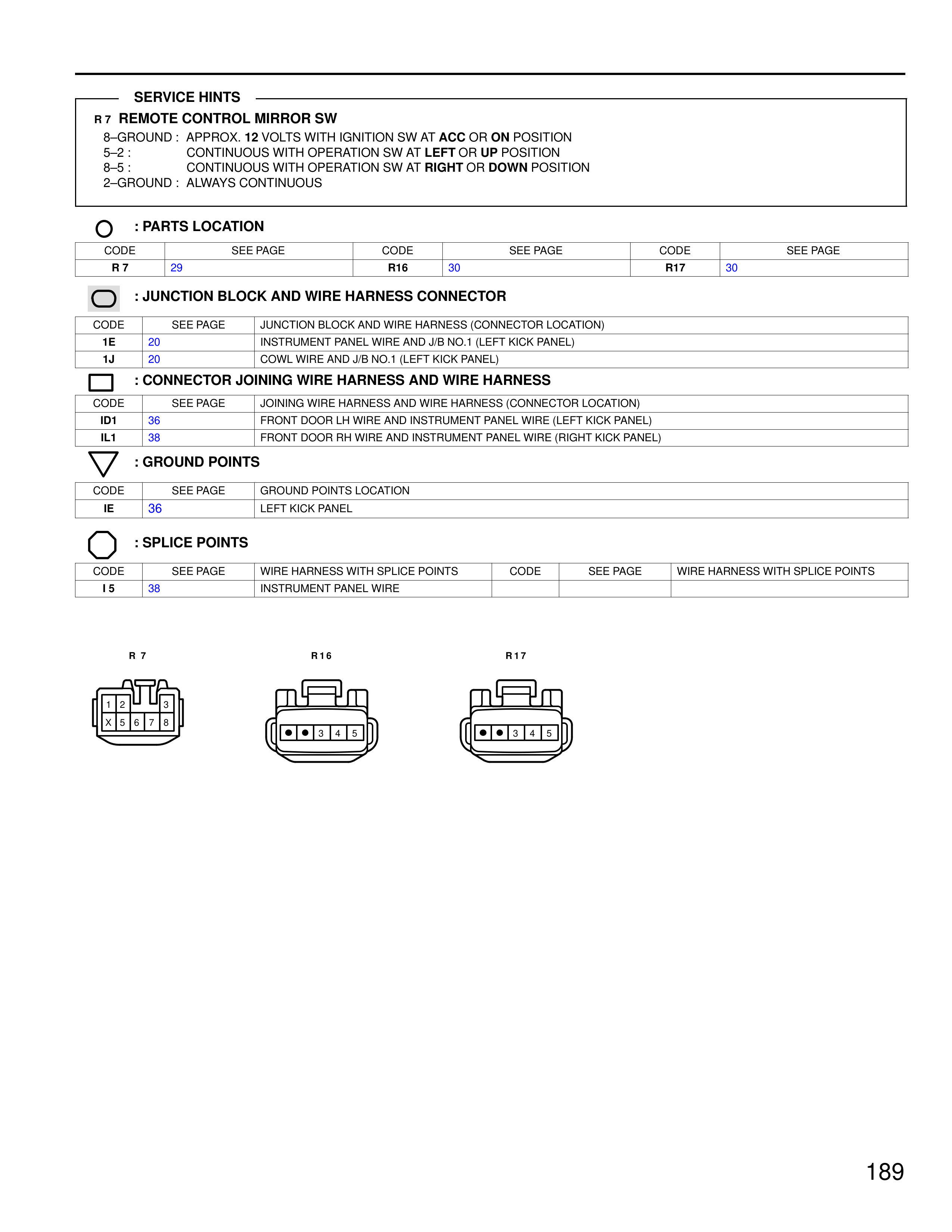

SERVICE HINTS R7 REMOTE CONTROL MIRROR SW 8–GROUND: APPROX. 12 VOLTS WITH IGNITION SW AT ACC OR ON POSITION 5–2: CONTINUOUS WITH OPERATION SW AT LEFT OR UP POSITION 8–5: CONTINUOUS WITH OPERATION SW AT RIGHT OR DOWN POSITION 2–GROUND: ALWAYS CONTINUOUS : PARTS LOCATION CODE SEE PAGE CODE SEE PAGE CODE SEE PAGE R 7 29 R16 30 R17 30 : JUNCTION BLOCK AND WIRE HARNESS CONNECTOR CODE SEE PAGE JUNCTION BLOCK AND WIRE HARNESS (CONNECTOR LOCATION) 1E 20 INSTRUMENT PANEL WIRE AND J/B NO.1 (LEFT KICK PANEL) 1J 20 COWL WIRE AND J/B NO.1 (LEFT KICK PANEL) : CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS CODE SEE PAGE JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION) ID1 36 FRONT DOOR LH WIRE AND INSTRUMENT PANEL WIRE (LEFT KICK PANEL) IL1 38 FRONT DOOR RH WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL) : GROUND POINTS CODE SEE PAGE GROUND POINTS LOCATION IE 36 LEFT KICK PANEL : SPLICE POINTS CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS I 5 38 INSTRUMENT PANEL WIRE R 7 R16 R17 [Connector diagrams showing: R7: 8-pin connector with pins labeled 1,2,3,4,X,5,6,7,8 R16: 5-pin connector with pins labeled 1,2,3,4,5 R17: 5-pin connector with pins labeled 1,2,3,4,5] 189
