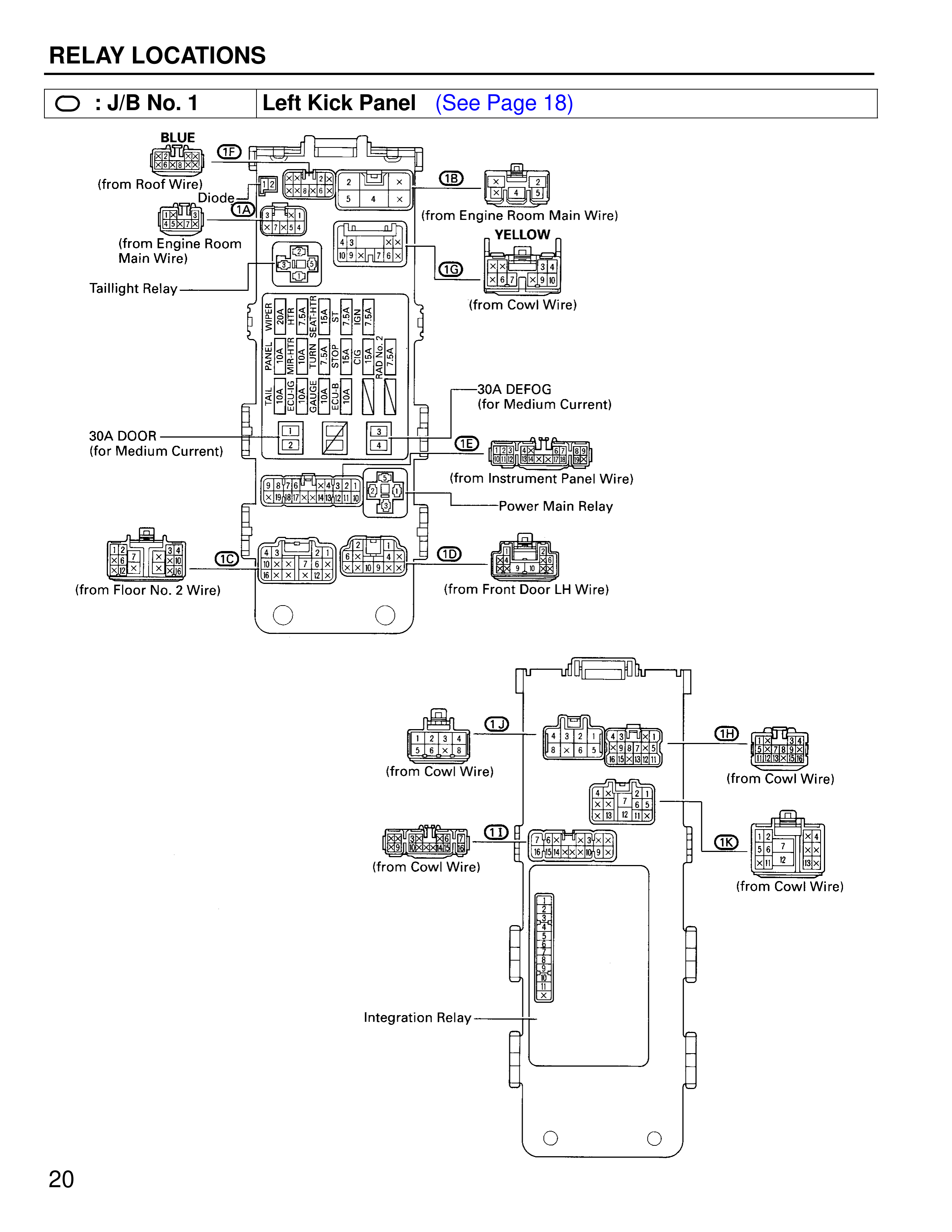

RELAY LOCATIONS
J/B No. 1 | Left Kick Panel (See Page 18)
BLUE
(from Roof Wire)
Diode
(from Engine Room Main Wire)
Taillight Relay
30A DOOR (for Medium Current)
1E
(from Instrument Panel Wire)
Power Main Relay
1G
(from Floor No. 2 Wire)
1D
(from Front Door LH Wire)
1B
(from Engine Room Main Wire)
YELLOW
1G
(from Cowl Wire)
30A DEFOG (for Medium Current)
1J
(from Cowl Wire)
1H
(from Cowl Wire)
1I
(from Cowl Wire)
1K
(from Cowl Wire)
Integration Relay
