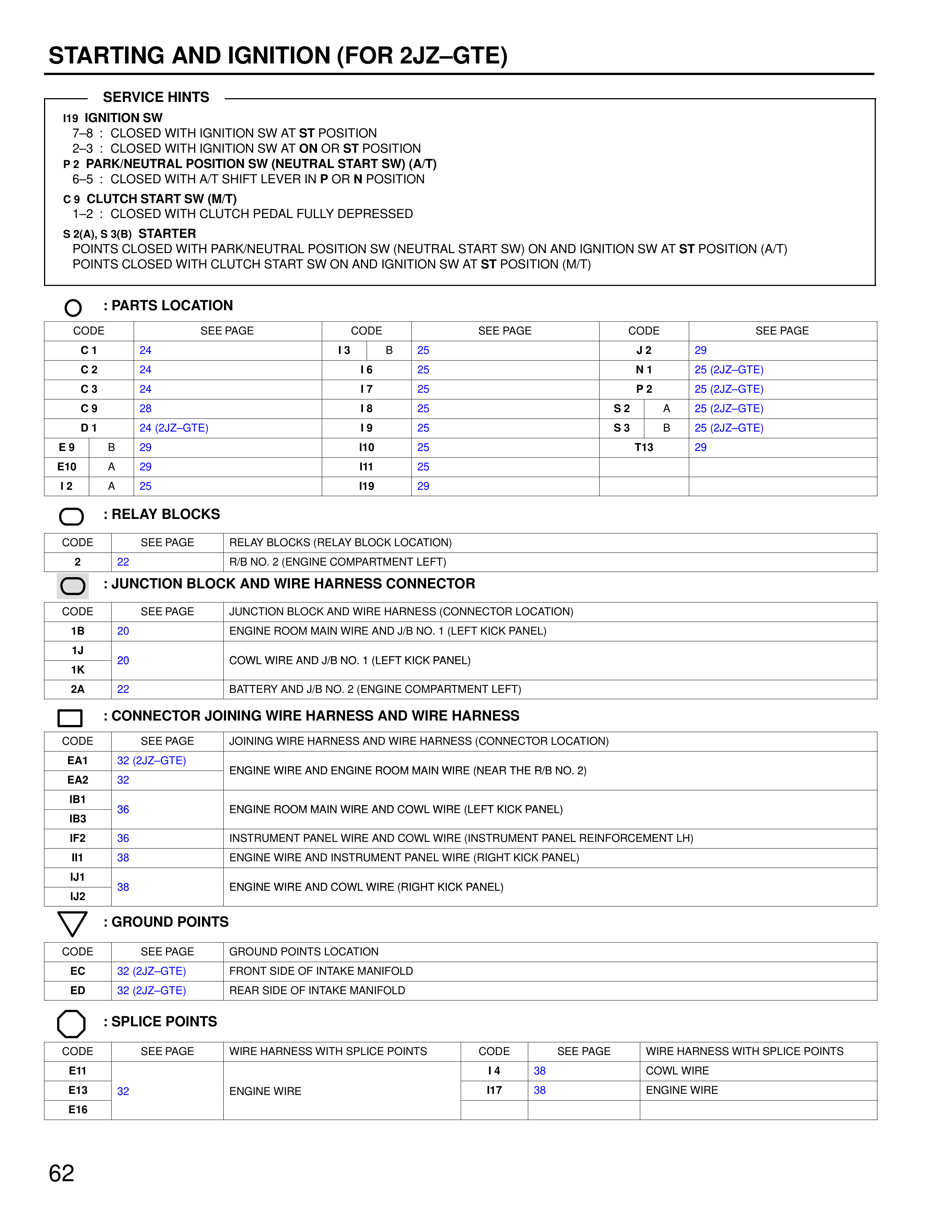

STARTING AND IGNITION (FOR 2JZ-GTE) SERVICE HINTS I19 IGNITION SW 7-8: CLOSED WITH IGNITION SW AT ST POSITION 2-3: CLOSED WITH IGNITION SW AT ON OR ST POSITION P2 PARK/NEUTRAL POSITION SW (NEUTRAL START SW) (A/T) 6-5: CLOSED WITH A/T SHIFT LEVER IN P OR N POSITION C9 CLUTCH START SW (M/T) 1-2: CLOSED WITH CLUTCH PEDAL FULLY DEPRESSED S2(A), S3(B) STARTER POINTS CLOSED WITH PARK/NEUTRAL POSITION SW (NEUTRAL START SW) ON AND IGNITION SW AT ST POSITION (A/T) POINTS CLOSED WITH CLUTCH START SW ON AND IGNITION SW AT ST POSITION (M/T) : PARTS LOCATION CODE SEE PAGE CODE SEE PAGE CODE SEE PAGE C1 24 I3 B 25 J2 29 C2 24 I6 25 N1 25 (2JZ-GTE) C3 24 I7 25 P2 25 (2JZ-GTE) C9 28 I8 25 S2 A 25 (2JZ-GTE) D1 24 (2JZ-GTE) I9 25 S3 B 25 (2JZ-GTE) E9 B 29 I10 25 T13 29 E10 A 29 I11 25 I2 A 25 I19 29 : RELAY BLOCKS CODE SEE PAGE RELAY BLOCKS (RELAY BLOCK LOCATION) 2 22 R/B NO. 2 (ENGINE COMPARTMENT LEFT) : JUNCTION BLOCK AND WIRE HARNESS CONNECTOR CODE SEE PAGE JUNCTION BLOCK AND WIRE HARNESS CONNECTOR LOCATION) 1B 20 ENGINE ROOM MAIN WIRE AND JB NO. 1 (LEFT KICK PANEL) 1J 20 COWL WIRE AND JB NO. 1 (LEFT KICK PANEL) 1K 2A 22 BATTERY AND JB NO. 2 (ENGINE COMPARTMENT LEFT) : CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS CODE SEE PAGE JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION) EA1 32 (2JZ-GTE) ENGINE WIRE AND ENGINE ROOM MAIN WIRE (NEAR THE R/B NO. 2) EA2 32 IB1 36 ENGINE ROOM MAIN WIRE AND COWL WIRE (LEFT KICK PANEL) IB3 IF2 36 INSTRUMENT PANEL WIRE AND COWL WIRE (INSTRUMENT PANEL REINFORCEMENT LH) II1 38 ENGINE WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL) LI1 38 ENGINE WIRE AND COWL WIRE (RIGHT KICK PANEL) LI2 : GROUND POINTS CODE SEE PAGE GROUND POINTS LOCATION EC 32 (2JZ-GTE) FRONT SIDE OF INTAKE MANIFOLD ED 32 (2JZ-GTE) REAR SIDE OF INTAKE MANIFOLD : SPLICE POINTS CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS EI1 I4 38 COWL WIRE EI3 32 ENGINE WIRE II7 38 ENGINE WIRE EI6 62
