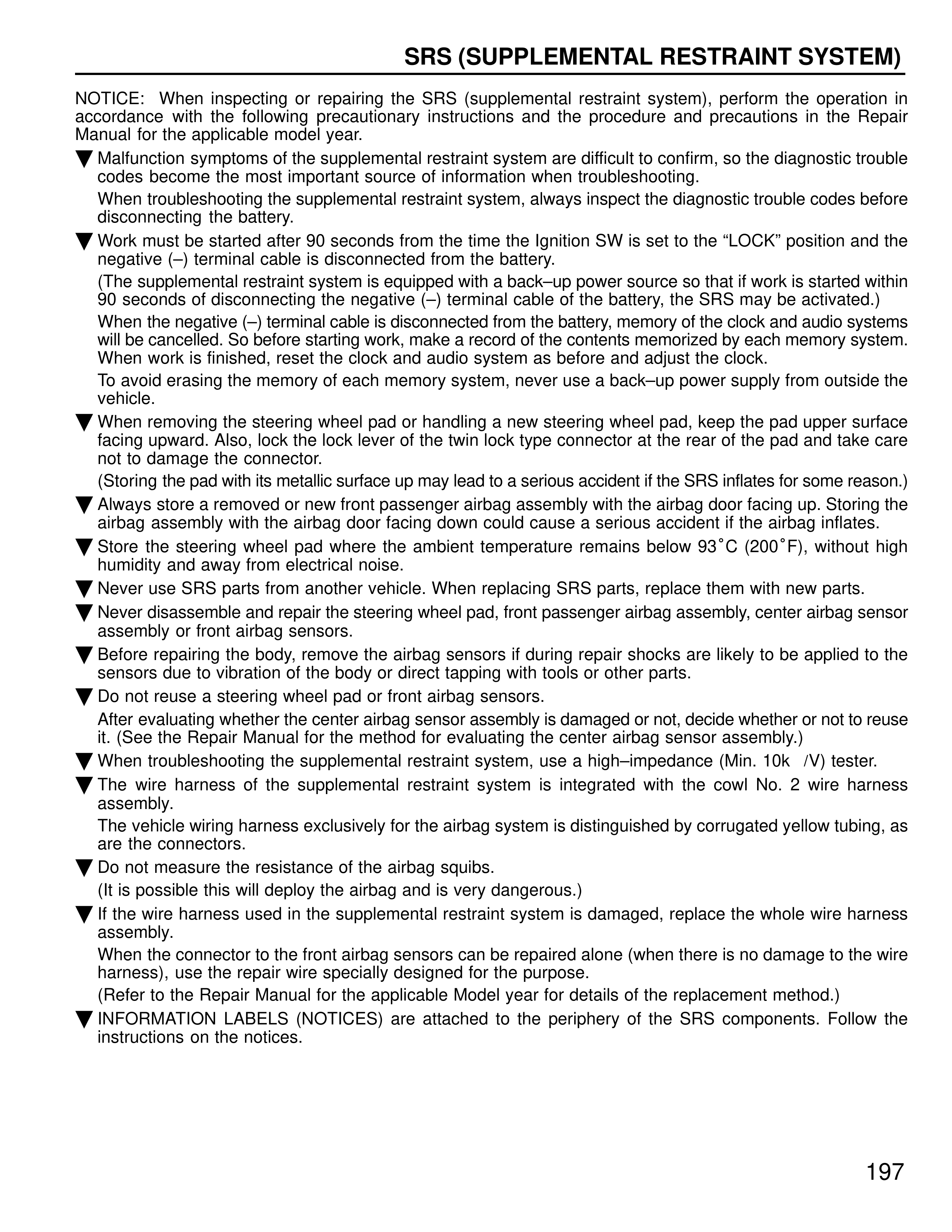

SRS (SUPPLEMENTAL RESTRAINT SYSTEM)\n\nNOTICE: When inspecting or repairing the SRS (supplemental restraint system), perform the operation in accordance with the following precautionary instructions and the procedure and precautions in the Repair Manual for the applicable model year.\n\n▼ Malfunction symptoms of the supplemental restraint system are difficult to confirm, so the diagnostic trouble codes become the most important source of information when troubleshooting.\nWhen troubleshooting the supplemental restraint system, always inspect the diagnostic trouble codes before disconnecting the battery.\n\n▼ Work must be started after 90 seconds from the time the Ignition SW is set to the \"LOCK\" position and the negative (–) terminal cable is disconnected from the battery.\n(The supplemental restraint system is equipped with a back–up power source so that if work is started within 90 seconds of disconnecting the negative (–) terminal cable of the battery, the SRS may be activated.)\nWhen the negative (–) terminal cable is disconnected from the battery, memory of the clock and audio systems will be cancelled. So before starting work, make a record of the contents memorized by each memory system. When work is finished, reset the clock and audio system as before and adjust the clock.\nTo avoid erasing the memory of each memory system, never use a back–up power supply from outside the vehicle.\n\n▼ When removing the steering wheel pad or handling a new steering wheel pad, keep the pad upper surface facing upward. Also, lock the lock lever of the twin lock type connector at the rear of the pad and take care not to damage the connector.\n(Storing the pad with its metallic surface up may lead to a serious accident if the SRS inflates for some reason.)\n\n▼ Always store a removed or new front passenger airbag assembly with the airbag door facing up. Storing the airbag assembly with the airbag door facing down could cause a serious accident if the airbag inflates.\n\n▼ Store the steering wheel pad where the ambient temperature remains below 93°C (200°F), without high humidity and away from electrical noise.\n\n▼ Never use SRS parts from another vehicle. When replacing SRS parts, replace them with new parts.\n\n▼ Never disassemble and repair the steering wheel pad, front passenger airbag assembly, center airbag sensor assembly or front airbag sensors.\n\n▼ Before repairing the body, remove the airbag sensors if during repair shocks are likely to be applied to the sensors due to vibration of the body or direct tapping with tools or other parts.\n\n▼ Do not reuse a steering wheel pad or front airbag sensors.\nAfter evaluating whether the center airbag sensor assembly is damaged or not, decide whether or not to reuse it. (See the Repair Manual for the method for evaluating the center airbag sensor assembly.)\n\n▼ When troubleshooting the supplemental restraint system, use a high–impedance (Min. 10k /V) tester.\n\n▼ The wire harness of the supplemental restraint system is integrated with the cowl No. 2 wire harness assembly.\nThe vehicle wiring harness exclusively for the airbag system is distinguished by corrugated yellow tubing, as are the connectors.\n\n▼ Do not measure the resistance of the airbag squibs.\n(It is possible this will deploy the airbag and is very dangerous.)\n\n▼ If the wire harness used in the supplemental restraint system is damaged, replace the whole wire harness assembly.\nWhen the connector to the front airbag sensors can be repaired alone (when there is no damage to the wire harness), use the repair wire specially designed for the purpose.\n(Refer to the Repair Manual for the applicable Model year for details of the replacement method.)\n\n▼ INFORMATION LABELS (NOTICES) are attached to the periphery of the SRS components. Follow the instructions on the notices.\n\n197
