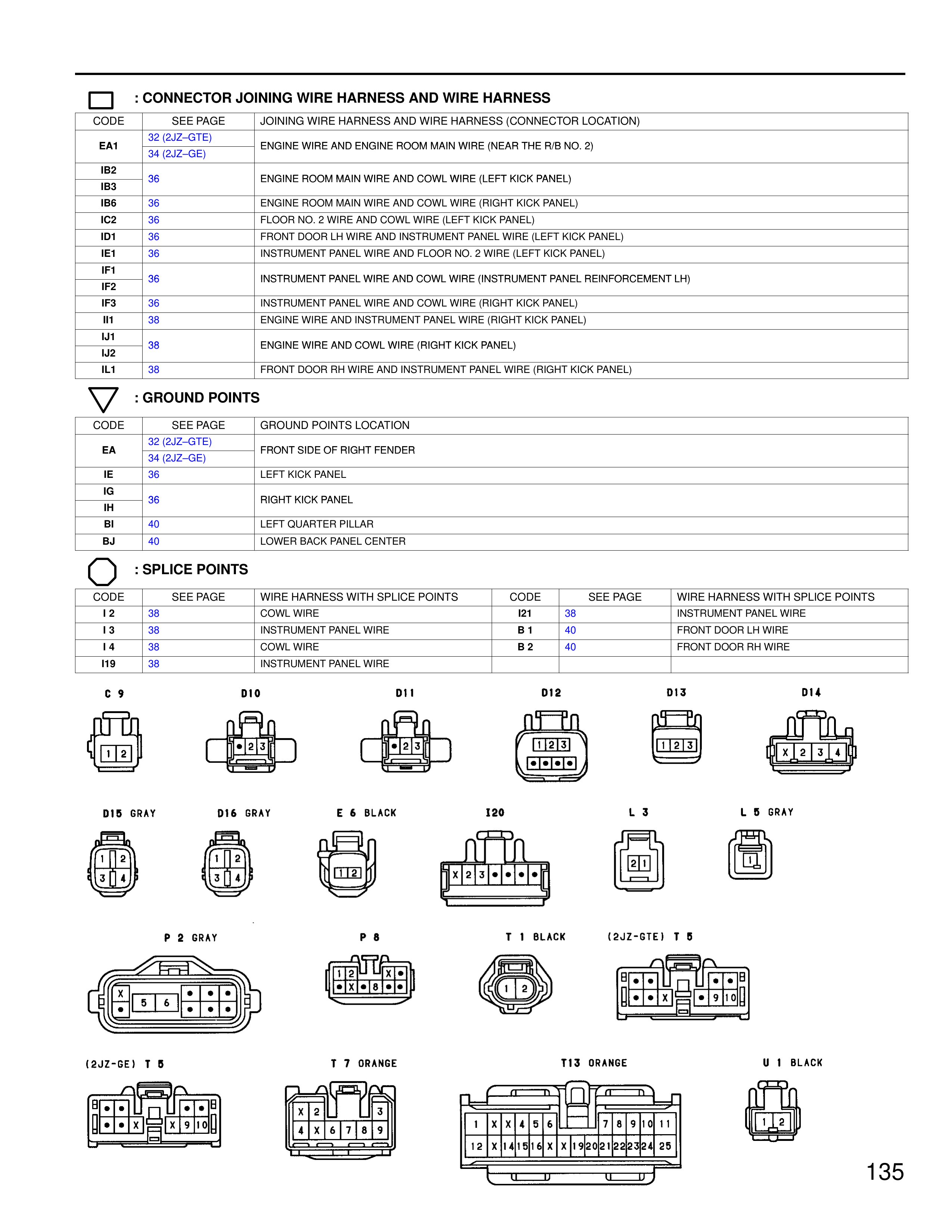

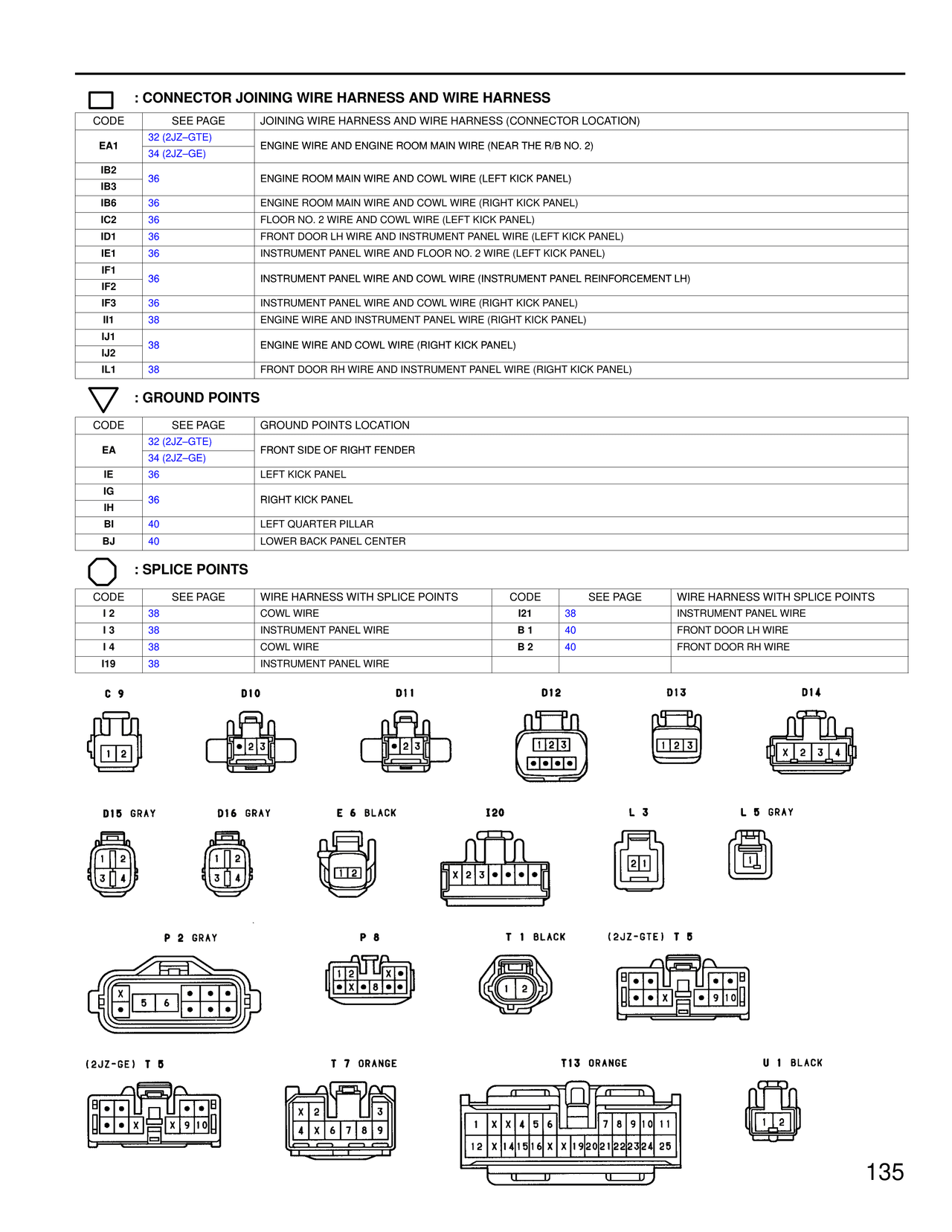

: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS CODE SEE PAGE JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION) EA1 32 (2JZ-GTE) 34 (2JZ-GE) ENGINE WIRE AND ENGINE ROOM MAIN WIRE (NEAR THE R/B NO. 2) IB2 36 ENGINE ROOM MAIN WIRE AND COWL WIRE (LEFT KICK PANEL) IB3 IB6 36 ENGINE ROOM MAIN WIRE AND COWL WIRE (RIGHT KICK PANEL) IC2 36 FLOOR NO. 2 WIRE AND COWL WIRE (LEFT KICK PANEL) ID1 36 FRONT DOOR LH WIRE AND INSTRUMENT PANEL WIRE (LEFT KICK PANEL) IE1 36 INSTRUMENT PANEL WIRE AND FLOOR NO. 2 WIRE (LEFT KICK PANEL) IF1 36 INSTRUMENT PANEL WIRE AND COWL WIRE (INSTRUMENT PANEL REINFORCEMENT LH) IF2 IF3 36 INSTRUMENT PANEL WIRE AND COWL WIRE (RIGHT KICK PANEL) II1 38 ENGINE WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL) IJ1 38 ENGINE WIRE AND COWL WIRE (RIGHT KICK PANEL) IJ2 IL1 38 FRONT DOOR RH WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL) : GROUND POINTS CODE SEE PAGE GROUND POINTS LOCATION EA 32 (2JZ-GTE) 34 (2JZ-GE) FRONT SIDE OF RIGHT FENDER IE 36 LEFT KICK PANEL IG 36 RIGHT KICK PANEL IH BI 40 LEFT QUARTER PILLAR BJ 40 LOWER BACK PANEL CENTER : SPLICE POINTS CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS I 2 38 COWL WIRE I21 38 INSTRUMENT PANEL WIRE I 3 38 INSTRUMENT PANEL WIRE B 1 40 FRONT DOOR LH WIRE I 4 38 COWL WIRE B 2 40 FRONT DOOR RH WIRE I19 38 INSTRUMENT PANEL WIRE C 9 D10 D11 D12 D13 D14 [Connector diagrams showing pin layouts for C9, D10, D11, D12, D13, D14] D16 GRAY D16 GRAY E 6 BLACK I20 L 3 L 5 GRAY [Connector diagrams showing pin layouts for D16, D16, E6, I20, L3, L5] P 2 GRAY P 8 T 1 BLACK (2JZ-GTE) T 5 [Connector diagrams showing pin layouts for P2, P8, T1, T5] (2JZ-GE) T 8 T 7 ORANGE T13 ORANGE U 1 BLACK [Connector diagrams showing pin layouts for T8, T7, T13, U1] 135
