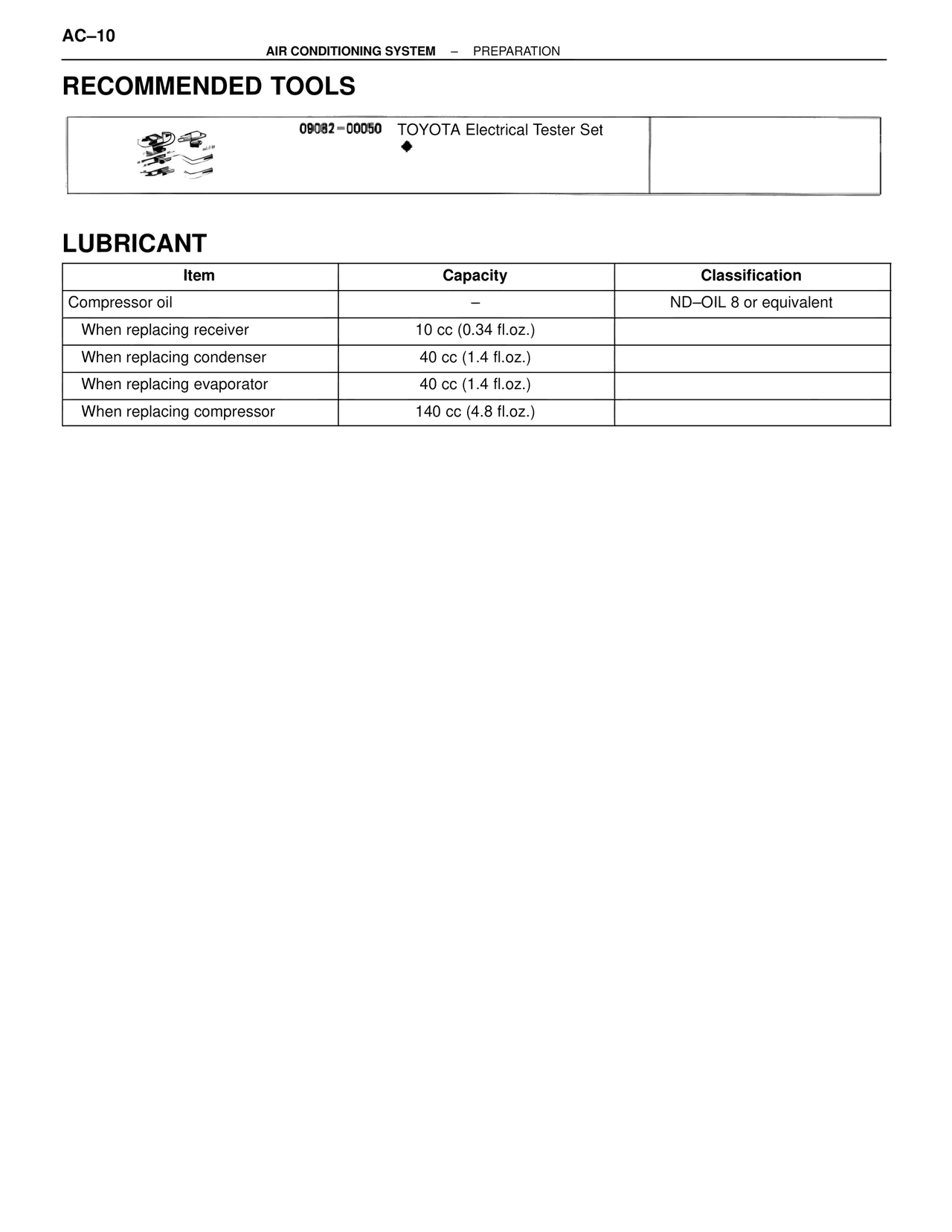

AC–10
AIR CONDITIONING SYSTEM – PREPARATION
RECOMMENDED TOOLS
09082–00050 TOYOTA Electrical Tester Set
♦
LUBRICANT
Item | Capacity | Classification
Compressor oil | – | ND–OIL 8 or equivalent
When replacing receiver | 10 cc (0.34 fl.oz.) |
When replacing condenser | 40 cc (1.4 fl.oz.) |
When replacing evaporator | 40 cc (1.4 fl.oz.) |
When replacing compressor | 140 cc (4.8 fl.oz.) |
