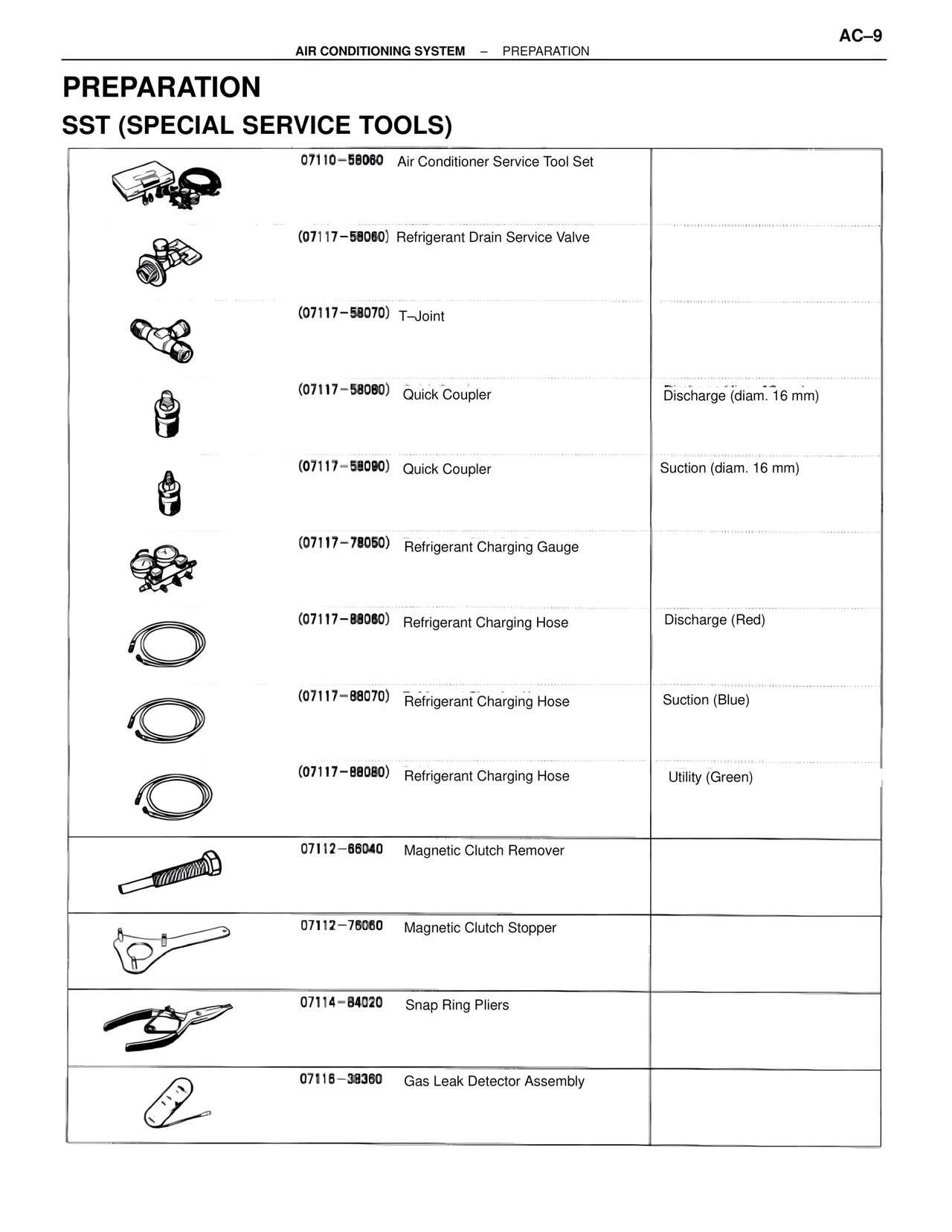

PREPARATION
SST (SPECIAL SERVICE TOOLS)
07110-58060 Air Conditioner Service Tool Set
(07117-58060) Refrigerant Drain Service Valve
(07117-58070) T-Joint
(07117-58080) Quick Coupler Discharge (diam. 16 mm)
(07117-58090) Quick Coupler Suction (diam. 16 mm)
(07117-78050) Refrigerant Charging Gauge
(07117-88060) Refrigerant Charging Hose Discharge (Red)
(07117-88070) Refrigerant Charging Hose Suction (Blue)
(07117-88080) Refrigerant Charging Hose Utility (Green)
07112-66040 Magnetic Clutch Remover
07112-76060 Magnetic Clutch Stopper
07114-84020 Snap Ring Pliers
07116-38360 Gas Leak Detector Assembly
