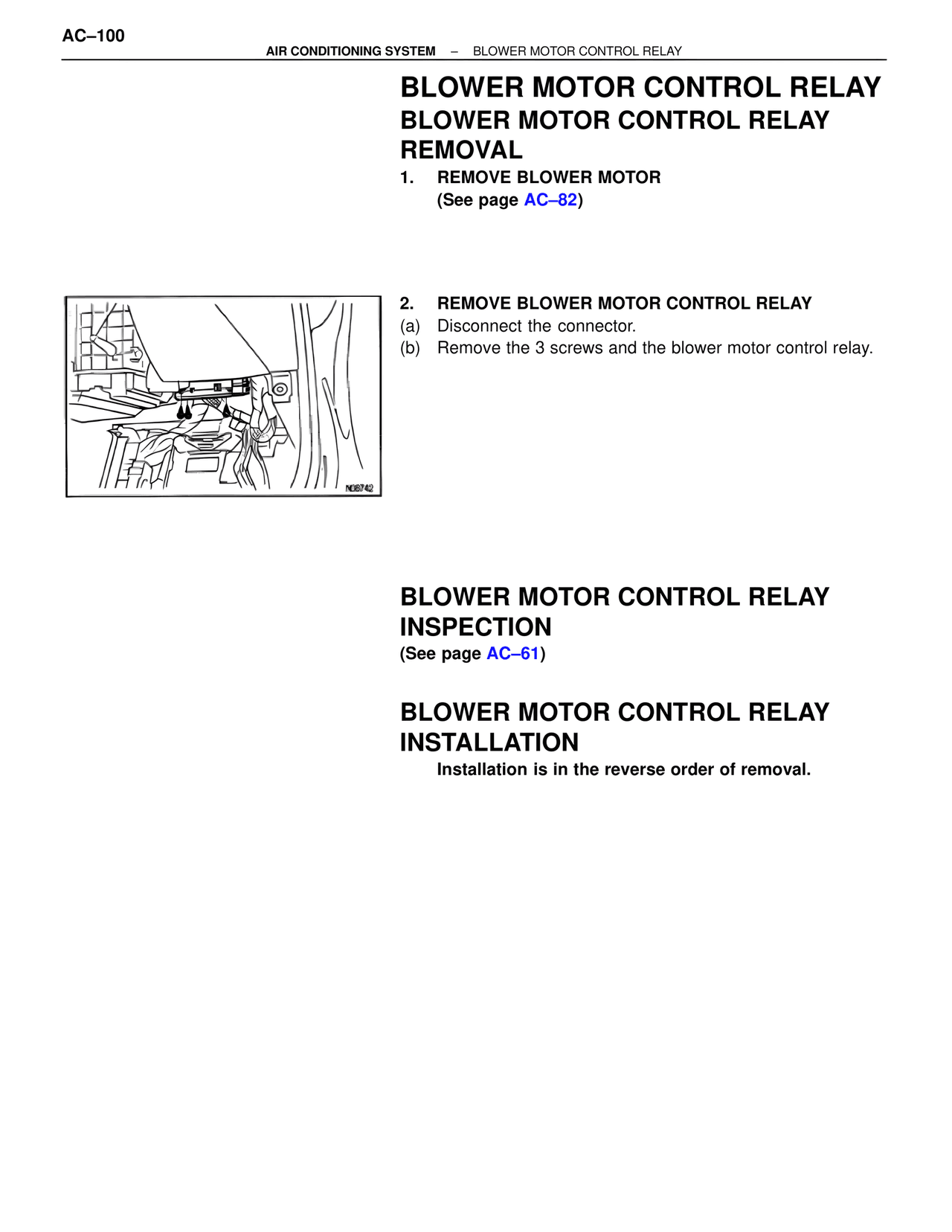

AC–100
AIR CONDITIONING SYSTEM – BLOWER MOTOR CONTROL RELAY
BLOWER MOTOR CONTROL RELAY
BLOWER MOTOR CONTROL RELAY
REMOVAL
1. REMOVE BLOWER MOTOR
(See page AC–82)
2. REMOVE BLOWER MOTOR CONTROL RELAY
(a) Disconnect the connector.
(b) Remove the 3 screws and the blower motor control relay.
N06742
BLOWER MOTOR CONTROL RELAY
INSPECTION
(See page AC–61)
BLOWER MOTOR CONTROL RELAY
INSTALLATION
Installation is in the reverse order of removal.
