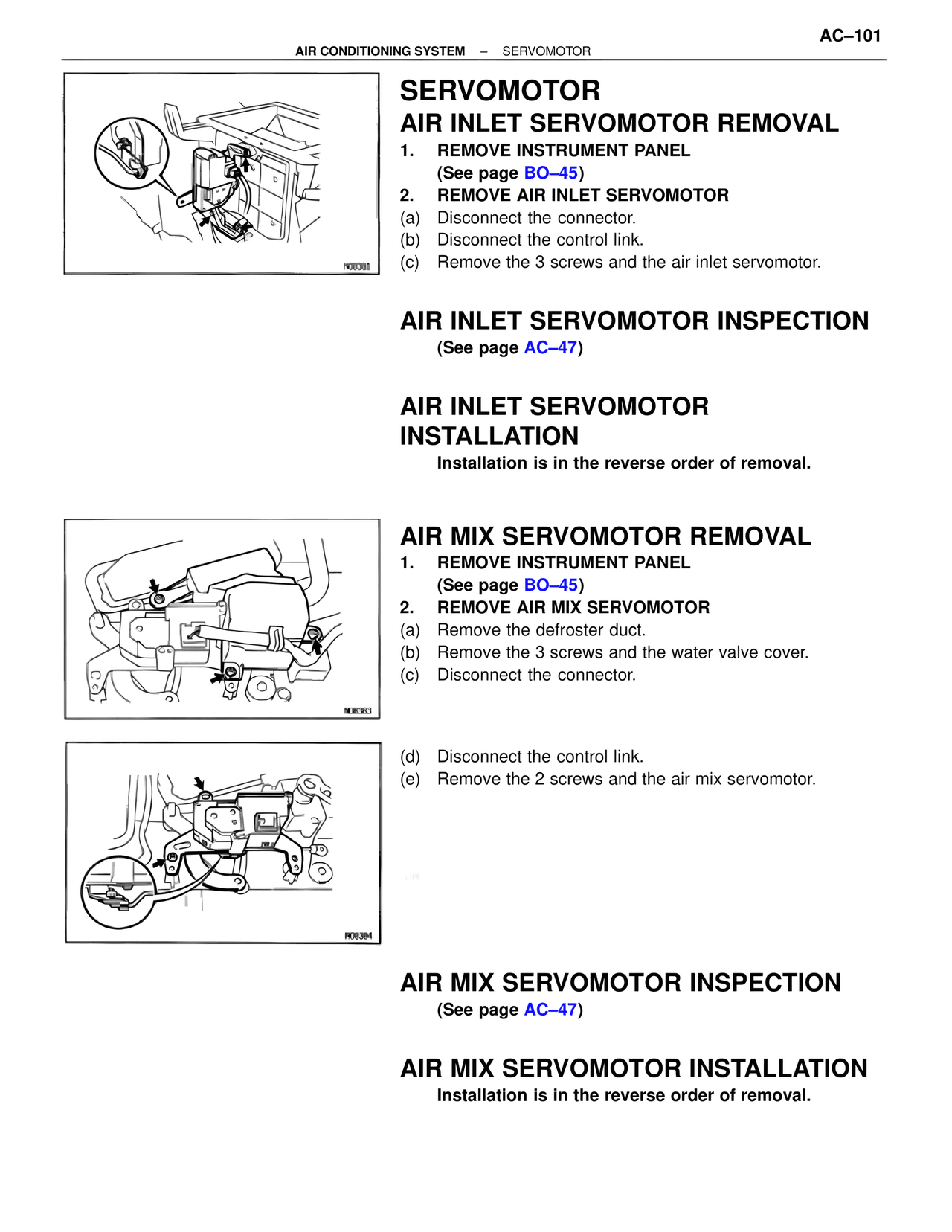

AIR CONDITIONING SYSTEM – SERVOMOTOR
SERVOMOTOR
AIR INLET SERVOMOTOR REMOVAL
1. REMOVE INSTRUMENT PANEL
(See page BO–45)
2. REMOVE AIR INLET SERVOMOTOR
(a) Disconnect the connector.
(b) Disconnect the control link.
(c) Remove the 3 screws and the air inlet servomotor.
AIR INLET SERVOMOTOR INSPECTION
(See page AC–47)
AIR INLET SERVOMOTOR
INSTALLATION
Installation is in the reverse order of removal.
AIR MIX SERVOMOTOR REMOVAL
1. REMOVE INSTRUMENT PANEL
(See page BO–45)
2. REMOVE AIR MIX SERVOMOTOR
(a) Remove the defroster duct.
(b) Remove the 3 screws and the water valve cover.
(c) Disconnect the connector.
(d) Disconnect the control link.
(e) Remove the 2 screws and the air mix servomotor.
AIR MIX SERVOMOTOR INSPECTION
(See page AC–47)
AIR MIX SERVOMOTOR INSTALLATION
Installation is in the reverse order of removal.
