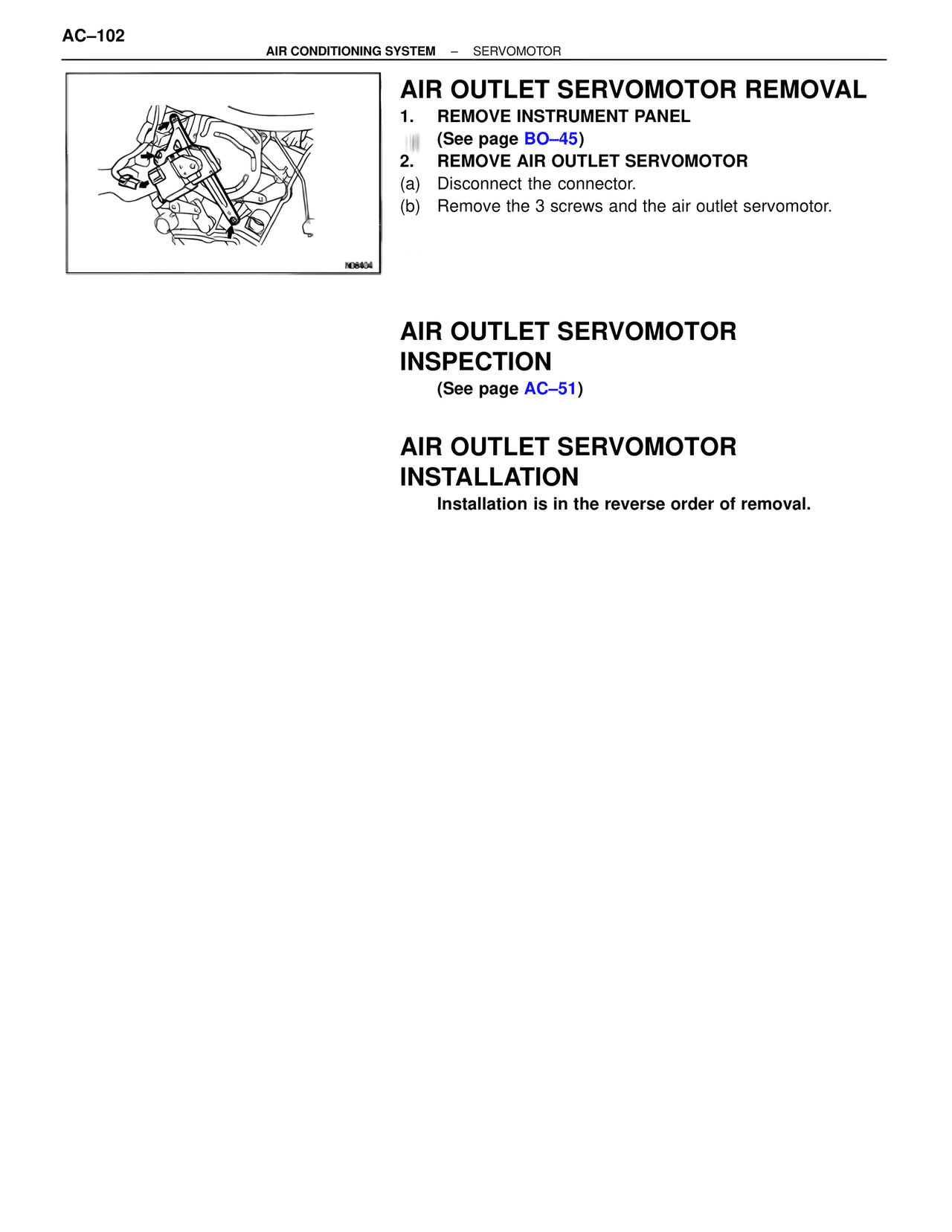

AC–102
AIR CONDITIONING SYSTEM – SERVOMOTOR
AIR OUTLET SERVOMOTOR REMOVAL
1. REMOVE INSTRUMENT PANEL
(See page BO–45)
2. REMOVE AIR OUTLET SERVOMOTOR
(a) Disconnect the connector.
(b) Remove the 3 screws and the air outlet servomotor.
ND8404
AIR OUTLET SERVOMOTOR
INSPECTION
(See page AC–51)
AIR OUTLET SERVOMOTOR
INSTALLATION
Installation is in the reverse order of removal.
