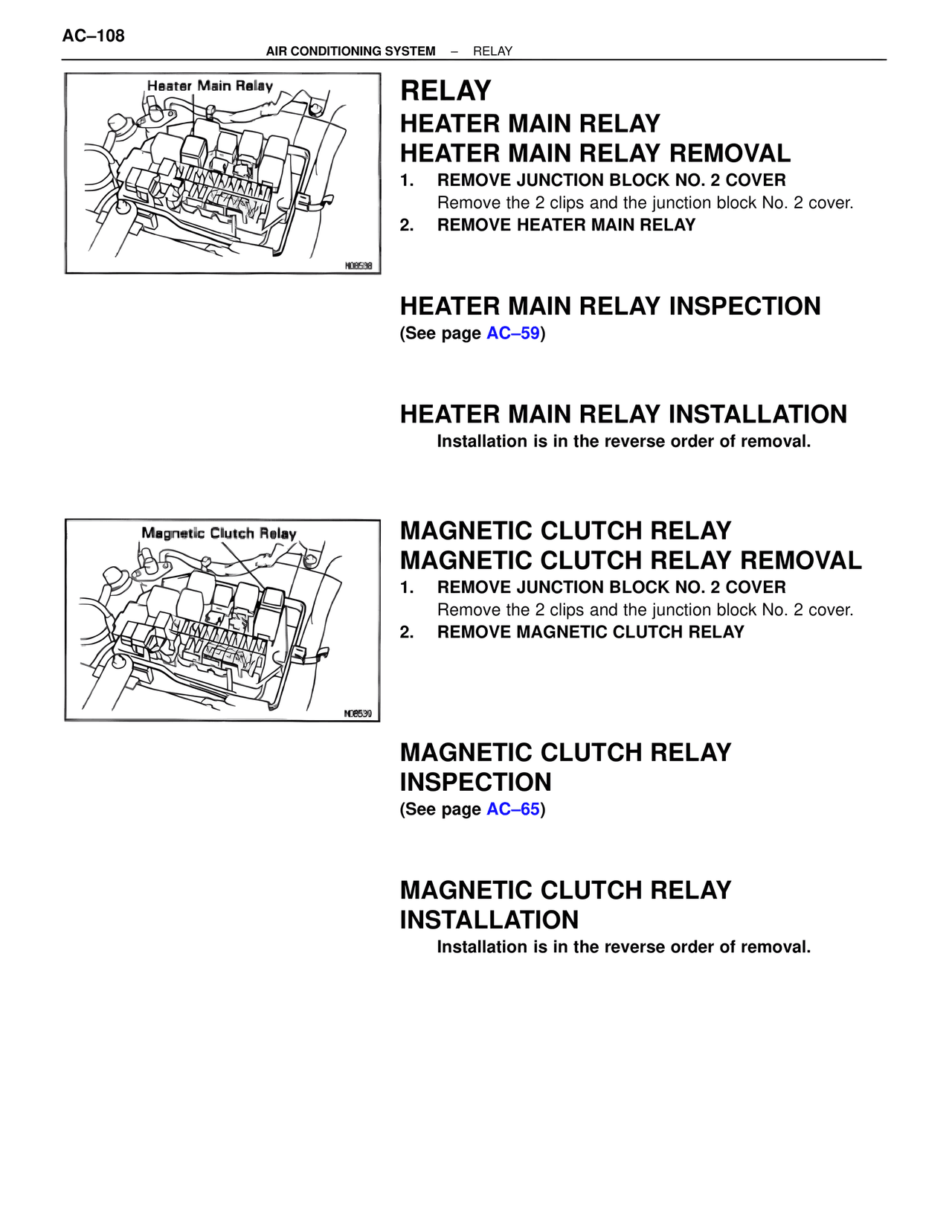

AC–108
AIR CONDITIONING SYSTEM – RELAY
Heater Main Relay
N08538
RELAY
HEATER MAIN RELAY
HEATER MAIN RELAY REMOVAL
1. REMOVE JUNCTION BLOCK NO. 2 COVER
Remove the 2 clips and the junction block No. 2 cover.
2. REMOVE HEATER MAIN RELAY
HEATER MAIN RELAY INSPECTION
(See page AC–59)
HEATER MAIN RELAY INSTALLATION
Installation is in the reverse order of removal.
Magnetic Clutch Relay
N08539
MAGNETIC CLUTCH RELAY
MAGNETIC CLUTCH RELAY REMOVAL
1. REMOVE JUNCTION BLOCK NO. 2 COVER
Remove the 2 clips and the junction block No. 2 cover.
2. REMOVE MAGNETIC CLUTCH RELAY
MAGNETIC CLUTCH RELAY
INSPECTION
(See page AC–65)
MAGNETIC CLUTCH RELAY
INSTALLATION
Installation is in the reverse order of removal.
