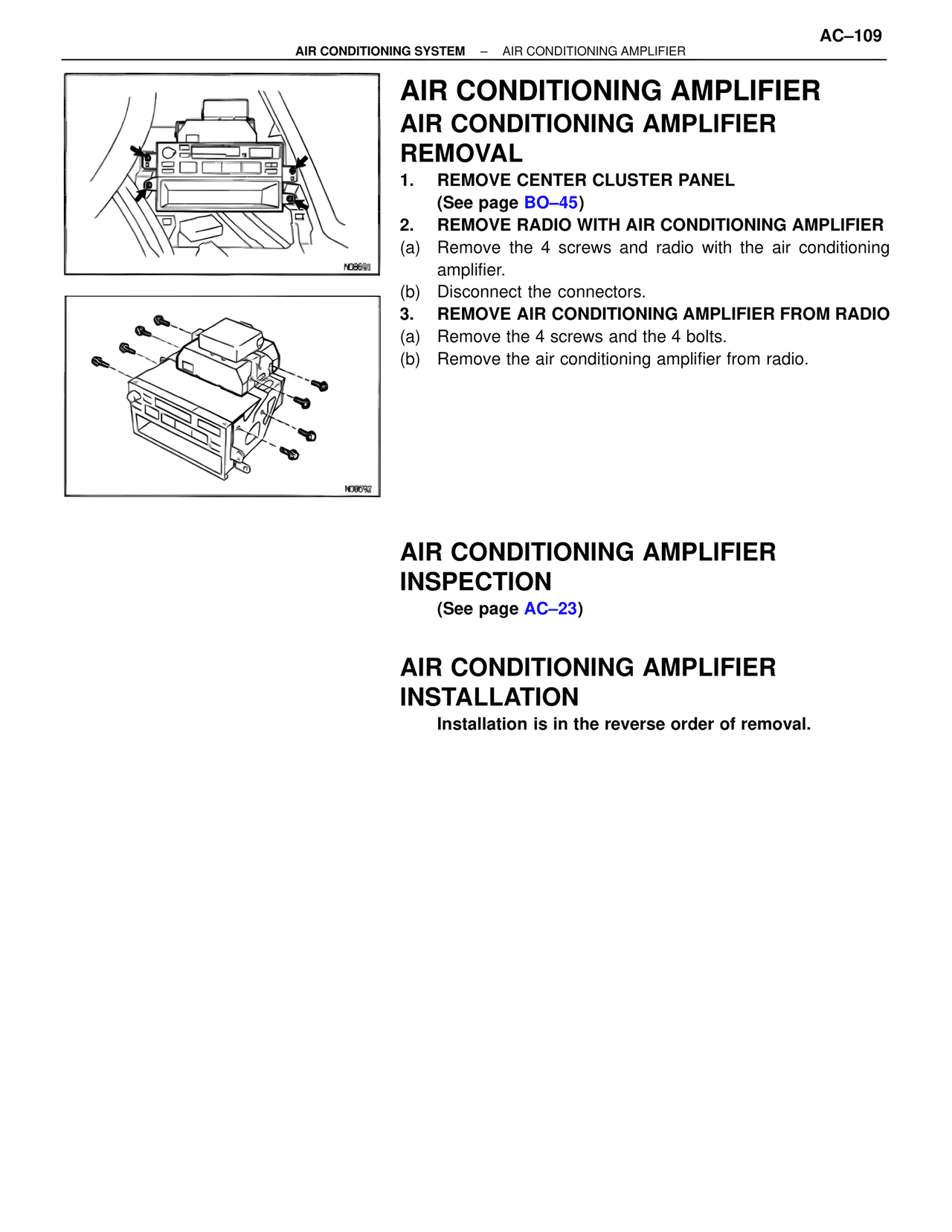

AIR CONDITIONING AMPLIFIER
AIR CONDITIONING AMPLIFIER REMOVAL
1. REMOVE CENTER CLUSTER PANEL
(See page BO–45)
2. REMOVE RADIO WITH AIR CONDITIONING AMPLIFIER
(a) Remove the 4 screws and radio with the air conditioning amplifier.
(b) Disconnect the connectors.
3. REMOVE AIR CONDITIONING AMPLIFIER FROM RADIO
(a) Remove the 4 screws and the 4 bolts.
(b) Remove the air conditioning amplifier from radio.
AIR CONDITIONING AMPLIFIER INSPECTION
(See page AC–23)
AIR CONDITIONING AMPLIFIER INSTALLATION
Installation is in the reverse order of removal.
N08699
N08692
