AC–14
AIR CONDITIONING SYSTEM – TROUBLESHOOTING

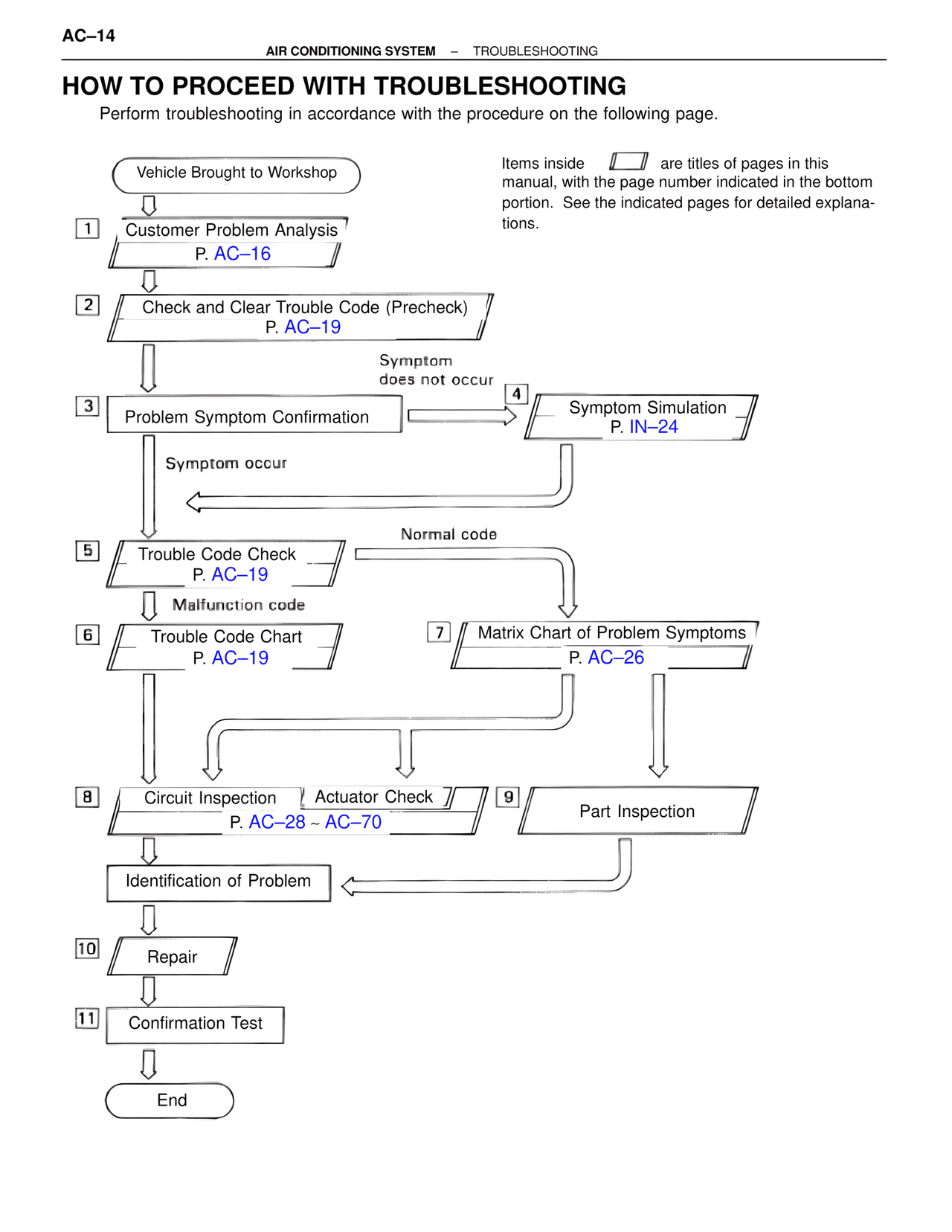

HOW TO PROCEED WITH TROUBLESHOOTING

Perform troubleshooting in accordance with the procedure on the following page.

Vehicle Brought to Workshop

1  Customer Problem Analysis
   P. AC–16

2  Check and Clear Trouble Code (Precheck)
   P. AC–19

Symptom does not occur

3  Problem Symptom Confirmation          4  Symptom Simulation
                                              P. IN–24

Symptom occur

5  Trouble Code Check                    Normal code
   P. AC–19

Malfunction code

6  Trouble Code Chart          7  Matrix Chart of Problem Symptoms
   P. AC–19                       P. AC–26

8  Circuit Inspection / Actuator Check   9  Part Inspection
   P. AC–28 ~ AC–70

Identification of Problem

10  Repair

11  Confirmation Test

End

Items inside       are titles of pages in this manual, with the page number indicated in the bottom portion. See the indicated pages for detailed explanations.
