AIR CONDITIONING SYSTEM – TROUBLESHOOTING

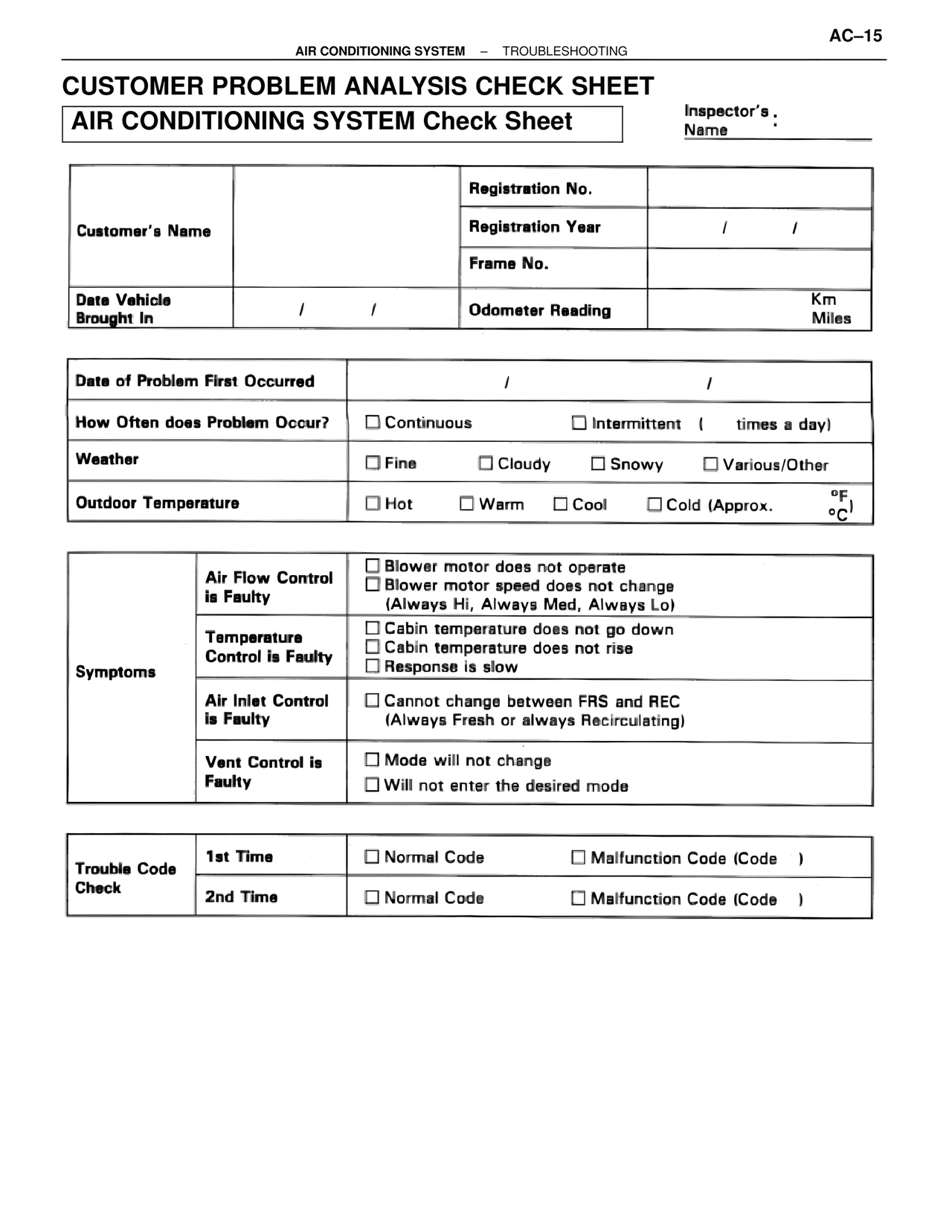

CUSTOMER PROBLEM ANALYSIS CHECK SHEET
AIR CONDITIONING SYSTEM Check Sheet

Inspector's Name:

Customer's Name

Registration No.
Registration Year          /          /
Frame No.

Date Vehicle Brought In          /          /
Odometer Reading                    Km
                                              Miles

Date of Problem First Occurred          /          /

How Often does Problem Occur?     □ Continuous          □ Intermittent  (          times a day)

Weather     □ Fine     □ Cloudy     □ Snowy     □ Various/Other

Outdoor Temperature     □ Hot     □ Warm     □ Cool     □ Cold (Approx.          °F
                                                                                                          °C)

Symptoms

Air Flow Control is Faulty
□ Blower motor does not operate
□ Blower motor speed does not change
  (Always Hi, Always Med, Always Lo)

Temperature Control is Faulty
□ Cabin temperature does not go down
□ Cabin temperature does not rise
□ Response is slow

Air Inlet Control is Faulty
□ Cannot change between FRS and REC
  (Always Fresh or always Recirculating)

Vent Control is Faulty
□ Mode will not change
□ Will not enter the desired mode

Trouble Code Check

1st Time     □ Normal Code          □ Malfunction Code (Code          )
2nd Time    □ Normal Code          □ Malfunction Code (Code          )
