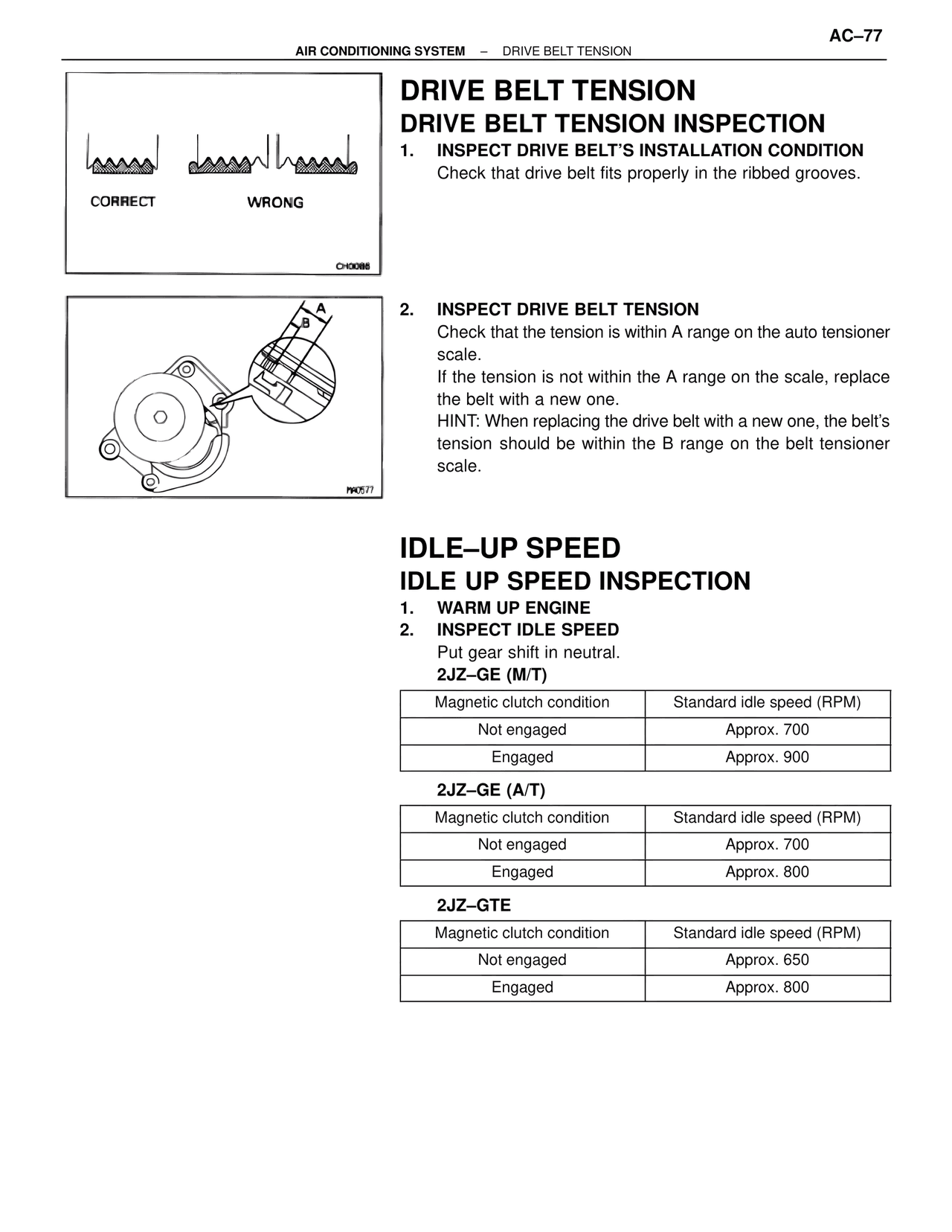

AC–77
AIR CONDITIONING SYSTEM – DRIVE BELT TENSION
CORRECT WRONG
CH0085
DRIVE BELT TENSION
DRIVE BELT TENSION INSPECTION
1. INSPECT DRIVE BELT'S INSTALLATION CONDITION
Check that drive belt fits properly in the ribbed grooves.
A
B
PA0577
2. INSPECT DRIVE BELT TENSION
Check that the tension is within A range on the auto tensioner scale.
If the tension is not within the A range on the scale, replace the belt with a new one.
HINT: When replacing the drive belt with a new one, the belt's tension should be within the B range on the belt tensioner scale.
IDLE–UP SPEED
IDLE UP SPEED INSPECTION
1. WARM UP ENGINE
2. INSPECT IDLE SPEED
Put gear shift in neutral.
2JZ–GE (M/T)
Magnetic clutch condition Standard idle speed (RPM)
Not engaged Approx. 700
Engaged Approx. 900
2JZ–GE (A/T)
Magnetic clutch condition Standard idle speed (RPM)
Not engaged Approx. 700
Engaged Approx. 800
2JZ–GTE
Magnetic clutch condition Standard idle speed (RPM)
Not engaged Approx. 650
Engaged Approx. 800
