AC–78
AIR CONDITIONING SYSTEM – REFRIGERANT LINES

REFRIGERANT LINES

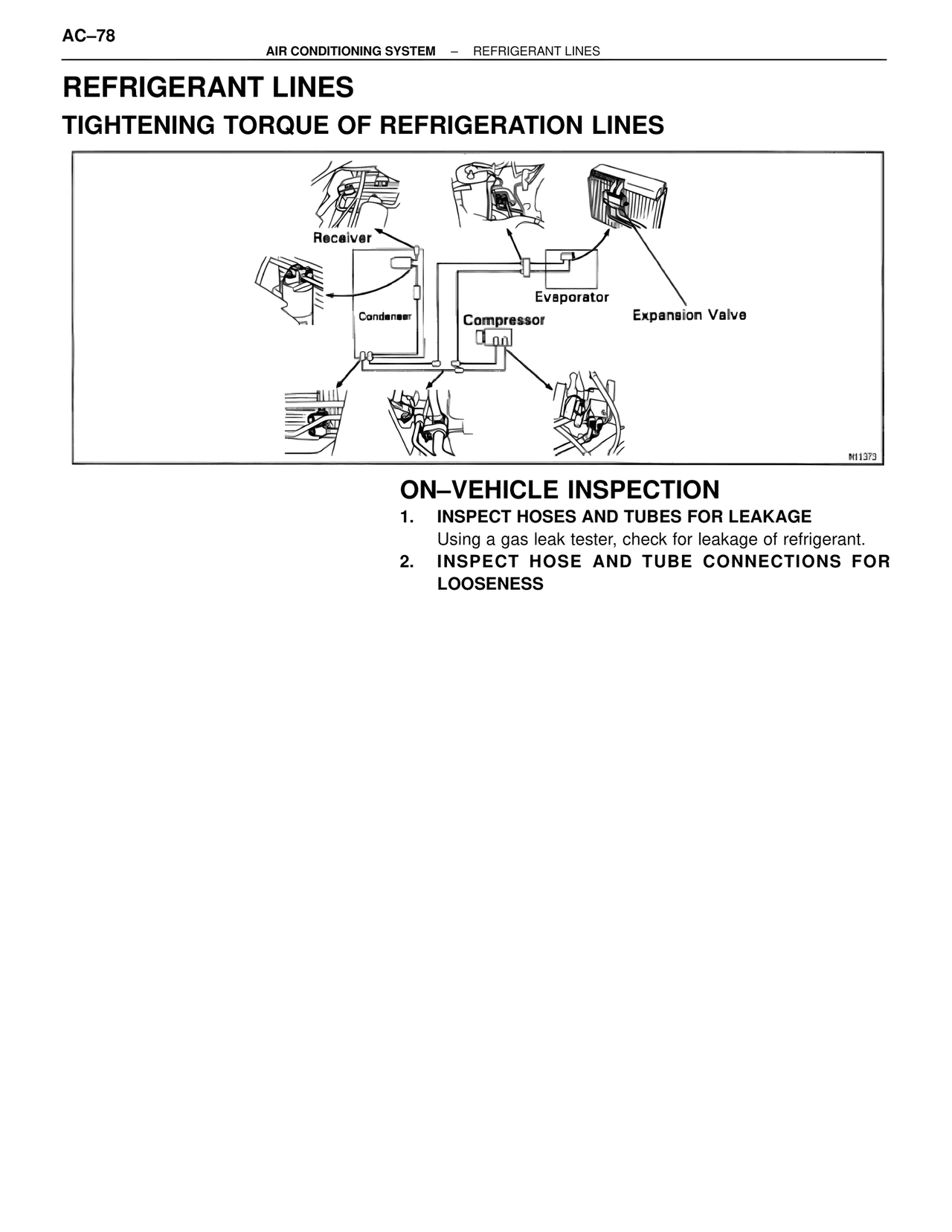

TIGHTENING TORQUE OF REFRIGERATION LINES

Receiver
Evaporator
Expansion Valve
Condenser
Compressor

N11373

ON–VEHICLE INSPECTION
1. INSPECT HOSES AND TUBES FOR LEAKAGE
Using a gas leak tester, check for leakage of refrigerant.
2. INSPECT HOSE AND TUBE CONNECTIONS FOR LOOSENESS
