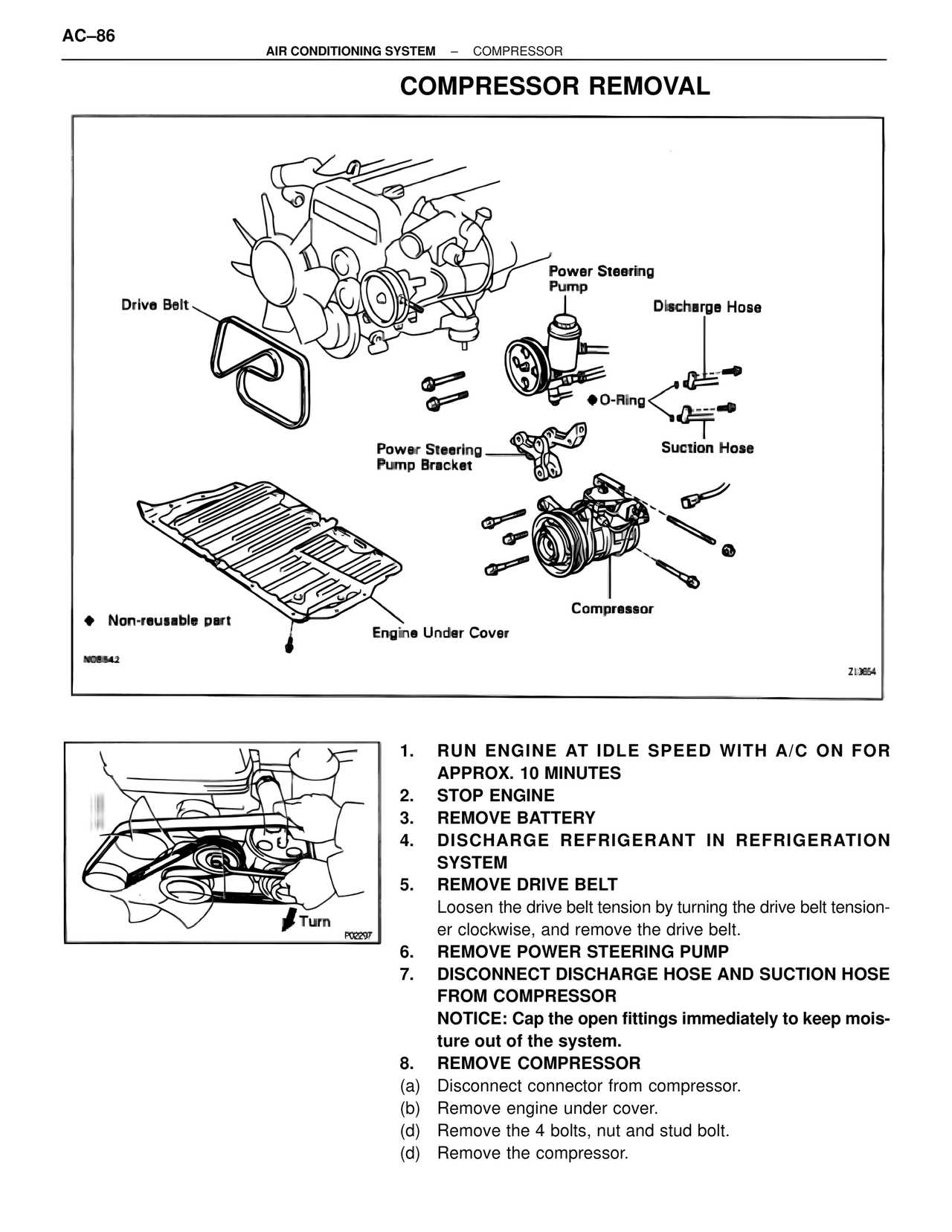

AC–86
AIR CONDITIONING SYSTEM – COMPRESSOR
COMPRESSOR REMOVAL
Drive Belt
Power Steering Pump
Discharge Hose
♦ O-Ring
Power Steering Pump Bracket
Suction Hose
Compressor
♦ Non-reusable part
Engine Under Cover
N08542
Z13654
Turn
P02297
1. RUN ENGINE AT IDLE SPEED WITH A/C ON FOR APPROX. 10 MINUTES
2. STOP ENGINE
3. REMOVE BATTERY
4. DISCHARGE REFRIGERANT IN REFRIGERATION SYSTEM
5. REMOVE DRIVE BELT
Loosen the drive belt tension by turning the drive belt tensioner clockwise, and remove the drive belt.
6. REMOVE POWER STEERING PUMP
7. DISCONNECT DISCHARGE HOSE AND SUCTION HOSE FROM COMPRESSOR
NOTICE: Cap the open fittings immediately to keep moisture out of the system.
8. REMOVE COMPRESSOR
(a) Disconnect connector from compressor.
(b) Remove engine under cover.
(d) Remove the 4 bolts, nut and stud bolt.
(d) Remove the compressor.
