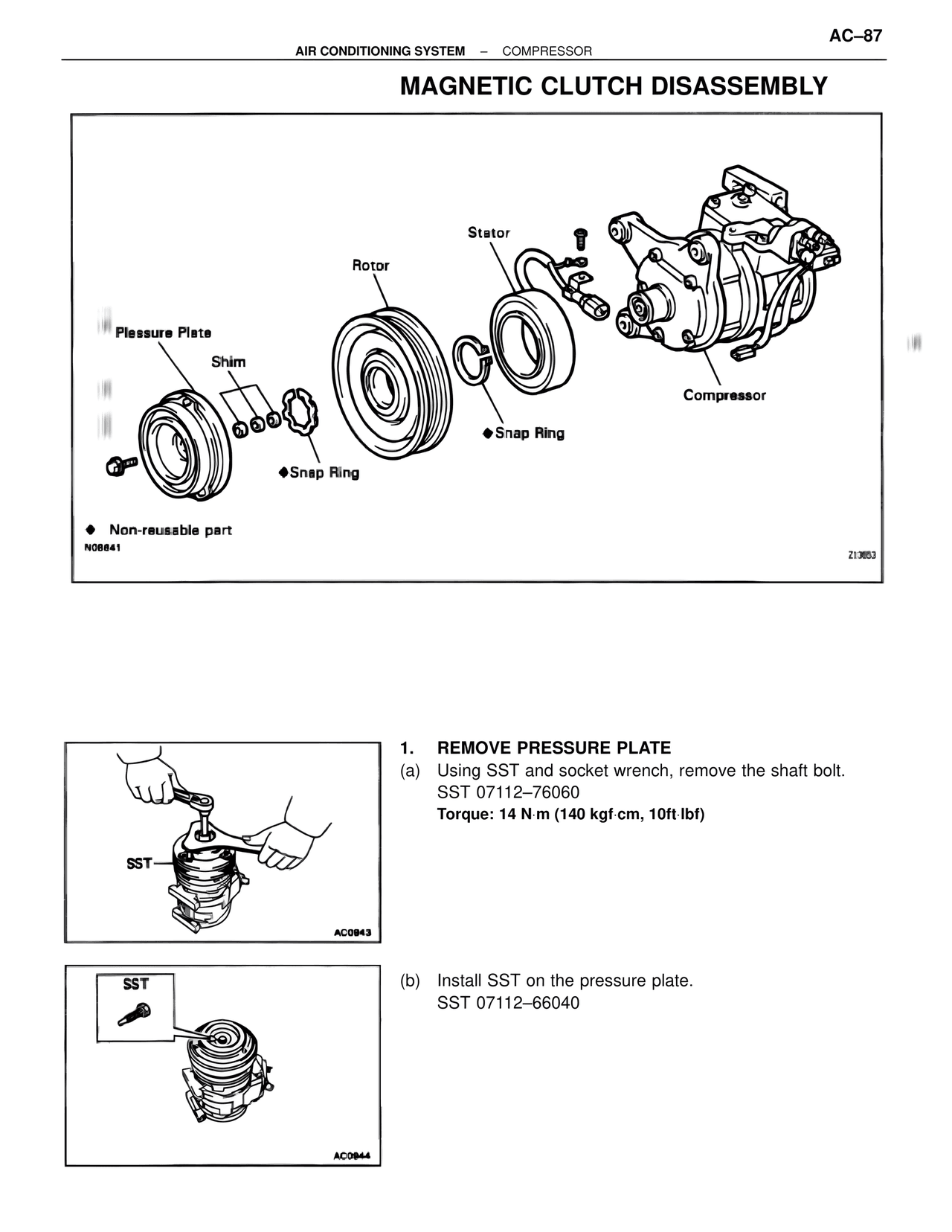

AC–87 AIR CONDITIONING SYSTEM – COMPRESSOR MAGNETIC CLUTCH DISASSEMBLY Plessure Plate Shim Rotor Stator Compressor ◆Snap Ring ◆Snap Ring ◆ Non-reusable part N08841 Z13653 1. REMOVE PRESSURE PLATE (a) Using SST and socket wrench, remove the shaft bolt. SST 07112–76060 Torque: 14 N·m (140 kgf·cm, 10ft·lbf) SST AC0943 (b) Install SST on the pressure plate. SST 07112–66040 SST AC0944
