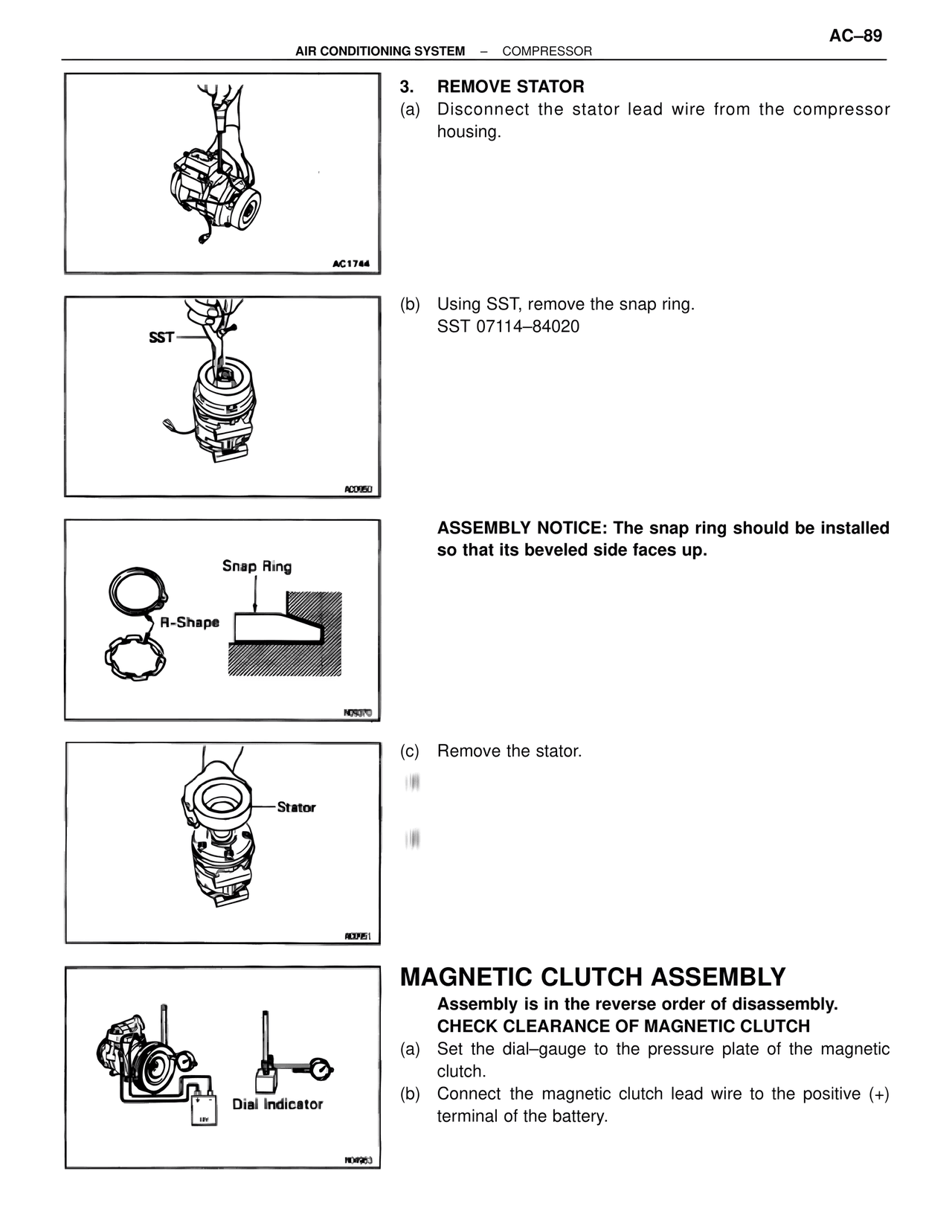

AC–89
AIR CONDITIONING SYSTEM – COMPRESSOR
3. REMOVE STATOR
(a) Disconnect the stator lead wire from the compressor housing.
AC1744
(b) Using SST, remove the snap ring.
SST 07114–84020
SST
AC0050
ASSEMBLY NOTICE: The snap ring should be installed so that its beveled side faces up.
Snap Ring
R-Shape
N09370
(c) Remove the stator.
Stator
AC0051
MAGNETIC CLUTCH ASSEMBLY
Assembly is in the reverse order of disassembly.
CHECK CLEARANCE OF MAGNETIC CLUTCH
(a) Set the dial–gauge to the pressure plate of the magnetic clutch.
(b) Connect the magnetic clutch lead wire to the positive (+) terminal of the battery.
Dial Indicator
N04963
