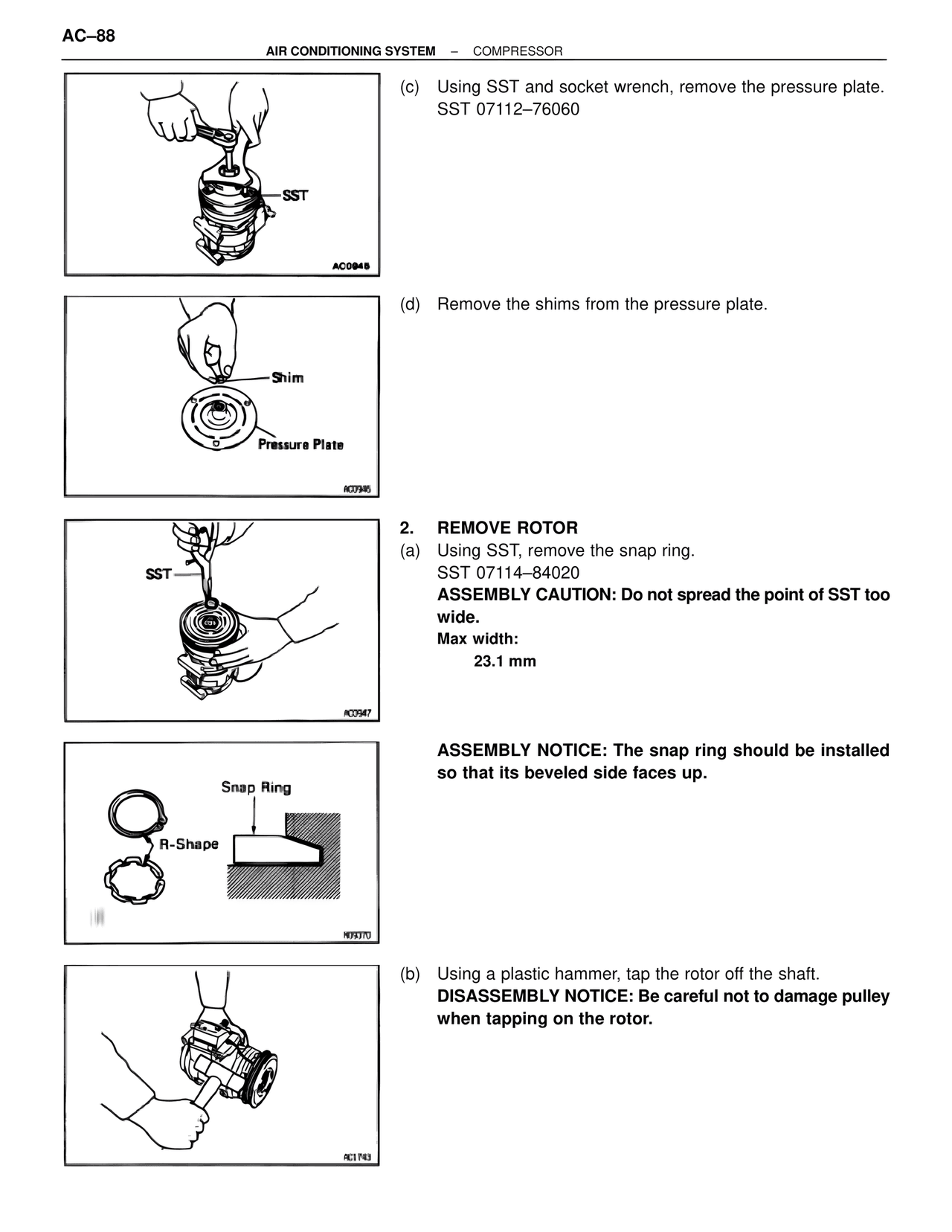

AC–88
AIR CONDITIONING SYSTEM – COMPRESSOR
(c) Using SST and socket wrench, remove the pressure plate.
SST 07112–76060
SST
AC0948
(d) Remove the shims from the pressure plate.
Shim
Pressure Plate
AC0945
2. REMOVE ROTOR
(a) Using SST, remove the snap ring.
SST 07114–84020
ASSEMBLY CAUTION: Do not spread the point of SST too
wide.
Max width:
23.1 mm
SST
AC0947
ASSEMBLY NOTICE: The snap ring should be installed
so that its beveled side faces up.
Snap Ring
R-Shape
N09370
(b) Using a plastic hammer, tap the rotor off the shaft.
DISASSEMBLY NOTICE: Be careful not to damage pulley
when tapping on the rotor.
AC1743
