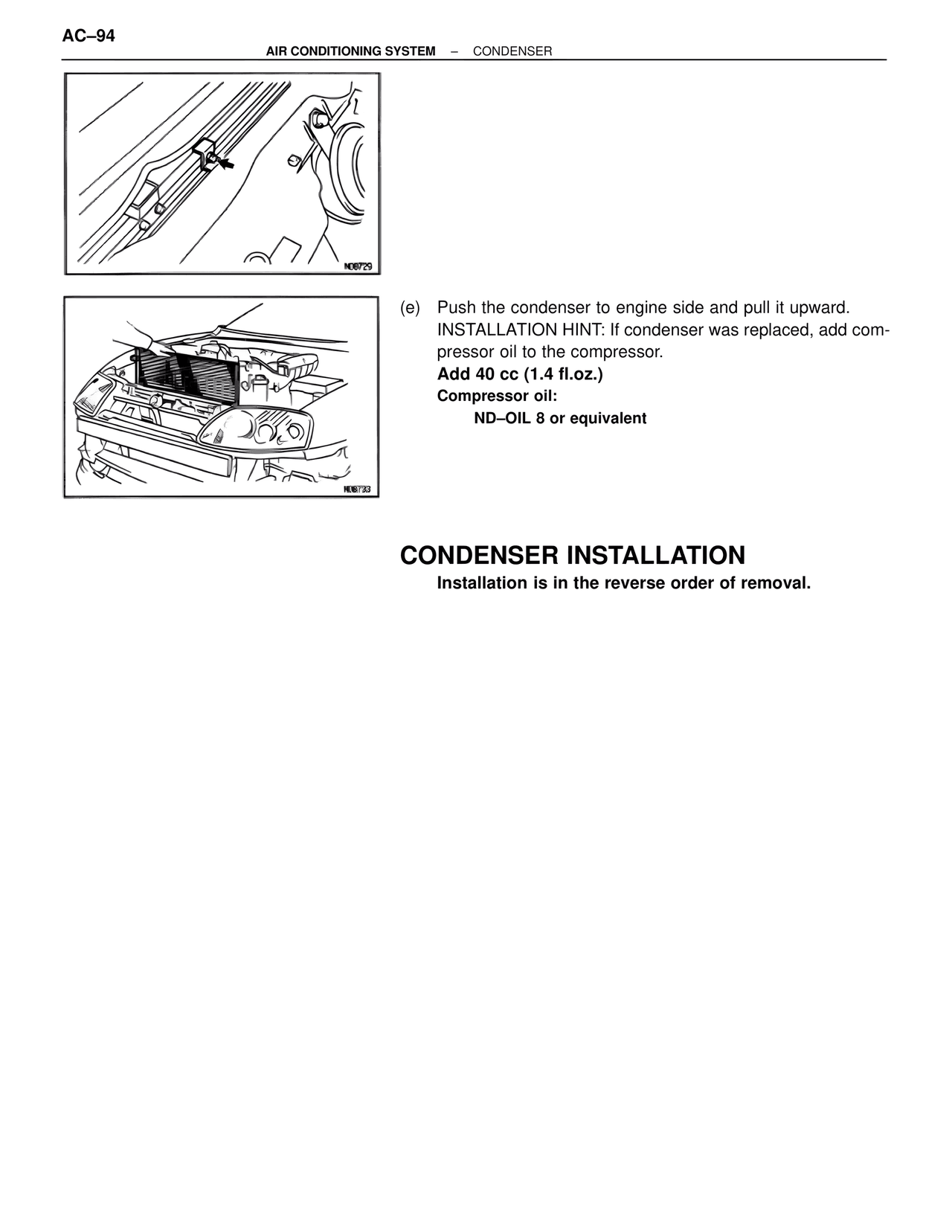

AC–94
AIR CONDITIONING SYSTEM – CONDENSER
(e) Push the condenser to engine side and pull it upward.
INSTALLATION HINT: If condenser was replaced, add compressor oil to the compressor.
Add 40 cc (1.4 fl.oz.)
Compressor oil:
ND–OIL 8 or equivalent
CONDENSER INSTALLATION
Installation is in the reverse order of removal.
