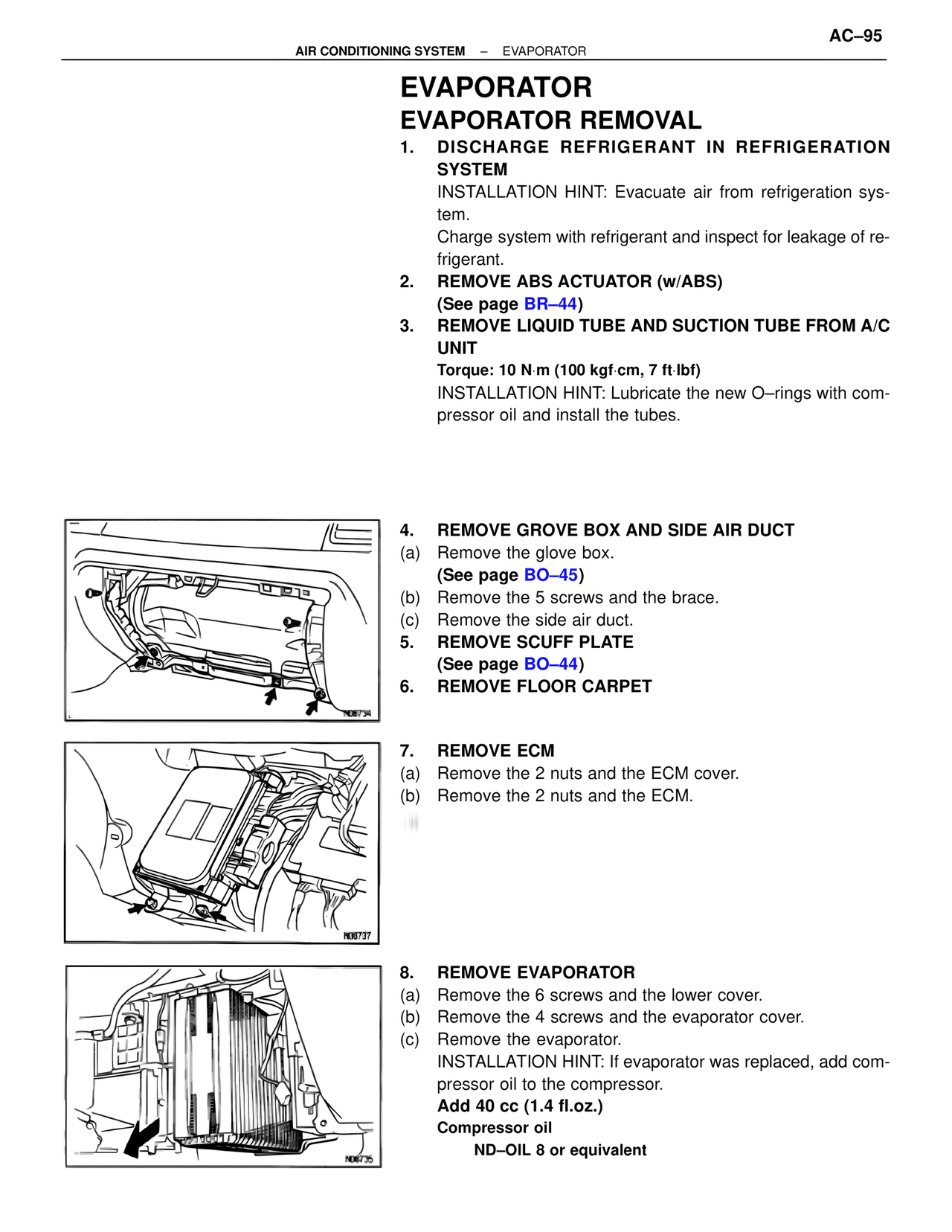

AC–95
AIR CONDITIONING SYSTEM – EVAPORATOR
EVAPORATOR
EVAPORATOR REMOVAL
1. DISCHARGE REFRIGERANT IN REFRIGERATION SYSTEM
INSTALLATION HINT: Evacuate air from refrigeration system.
Charge system with refrigerant and inspect for leakage of refrigerant.
2. REMOVE ABS ACTUATOR (w/ABS)
(See page BR–44)
3. REMOVE LIQUID TUBE AND SUCTION TUBE FROM A/C UNIT
Torque: 10 N·m (100 kgf·cm, 7 ft·lbf)
INSTALLATION HINT: Lubricate the new O–rings with compressor oil and install the tubes.
4. REMOVE GROVE BOX AND SIDE AIR DUCT
(a) Remove the glove box.
(See page BO–45)
(b) Remove the 5 screws and the brace.
(c) Remove the side air duct.
5. REMOVE SCUFF PLATE
(See page BO–44)
6. REMOVE FLOOR CARPET
7. REMOVE ECM
(a) Remove the 2 nuts and the ECM cover.
(b) Remove the 2 nuts and the ECM.
8. REMOVE EVAPORATOR
(a) Remove the 6 screws and the lower cover.
(b) Remove the 4 screws and the evaporator cover.
(c) Remove the evaporator.
INSTALLATION HINT: If evaporator was replaced, add compressor oil to the compressor.
Add 40 cc (1.4 fl.oz.)
Compressor oil
ND–OIL 8 or equivalent
N08734
N08737
N08735
