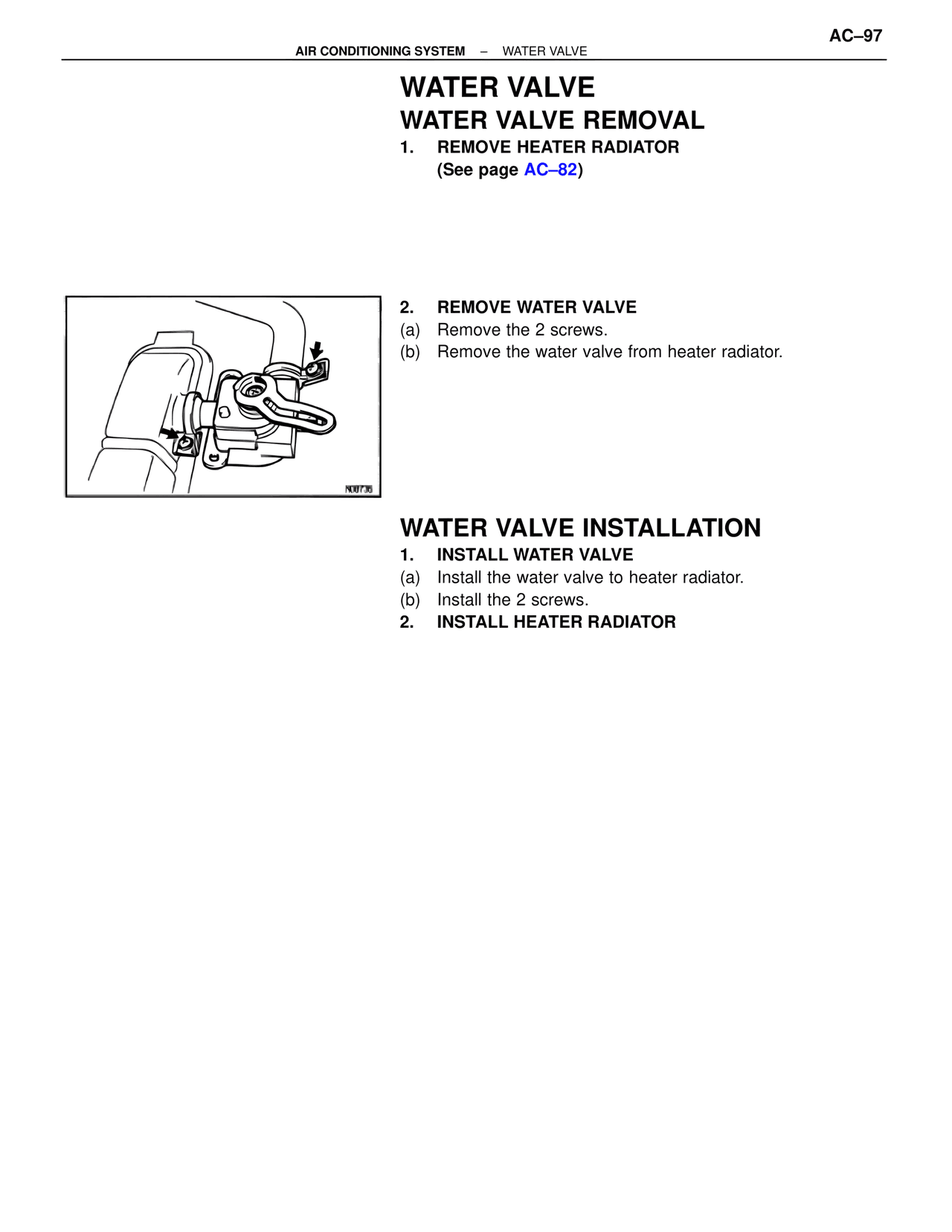

AC/Air Conditioning — Water Valve, page 97

WATER VALVE
WATER VALVE REMOVAL
1. REMOVE HEATER RADIATOR
(See page AC–82)

2. REMOVE WATER VALVE
(a) Remove the 2 screws.
(b) Remove the water valve from heater radiator.

MO8736

WATER VALVE INSTALLATION
1. INSTALL WATER VALVE
(a) Install the water valve to heater radiator.
(b) Install the 2 screws.
2. INSTALL HEATER RADIATOR
