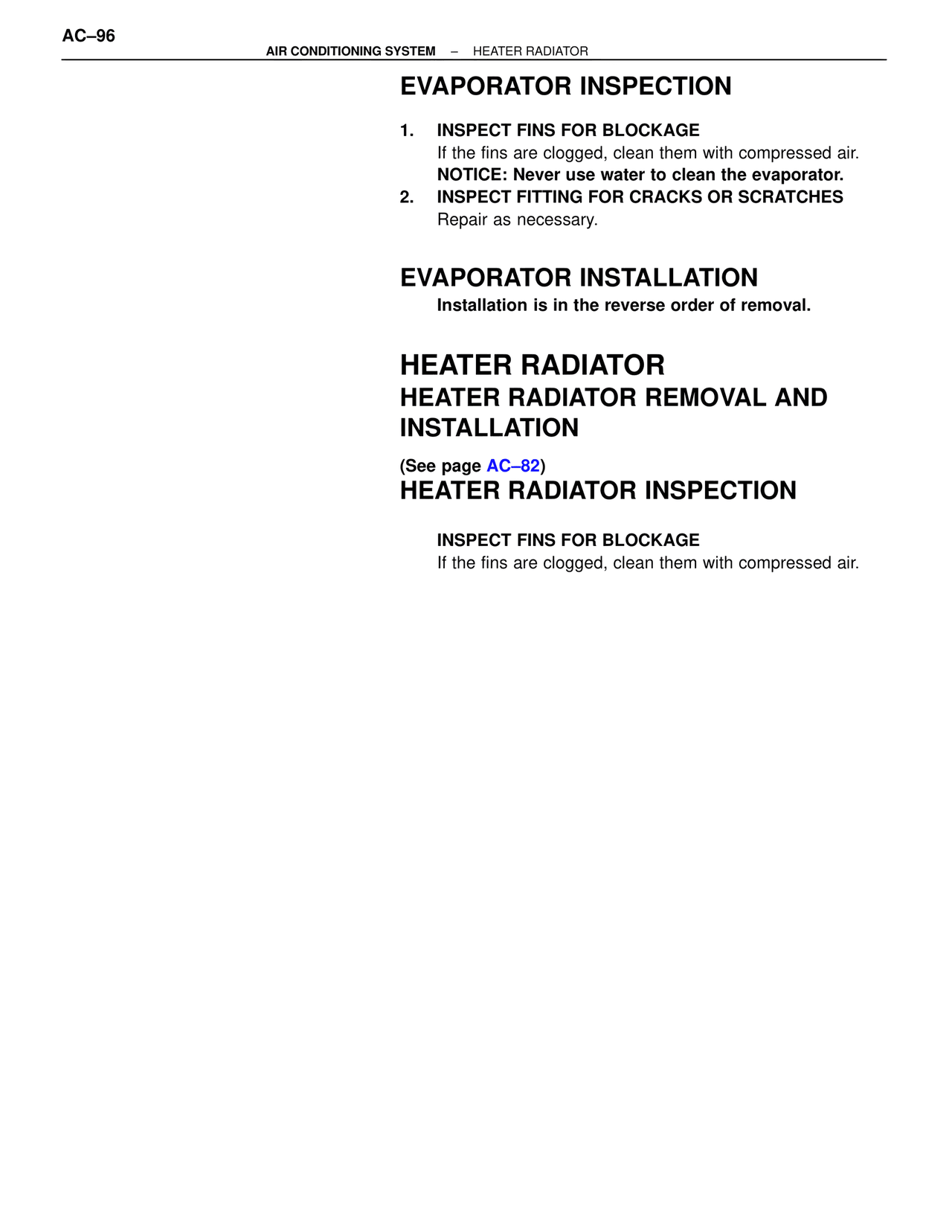

AC–96
AIR CONDITIONING SYSTEM – HEATER RADIATOR
EVAPORATOR INSPECTION
1. INSPECT FINS FOR BLOCKAGE
If the fins are clogged, clean them with compressed air.
NOTICE: Never use water to clean the evaporator.
2. INSPECT FITTING FOR CRACKS OR SCRATCHES
Repair as necessary.
EVAPORATOR INSTALLATION
Installation is in the reverse order of removal.
HEATER RADIATOR
HEATER RADIATOR REMOVAL AND INSTALLATION
(See page AC–82)
HEATER RADIATOR INSPECTION
INSPECT FINS FOR BLOCKAGE
If the fins are clogged, clean them with compressed air.
