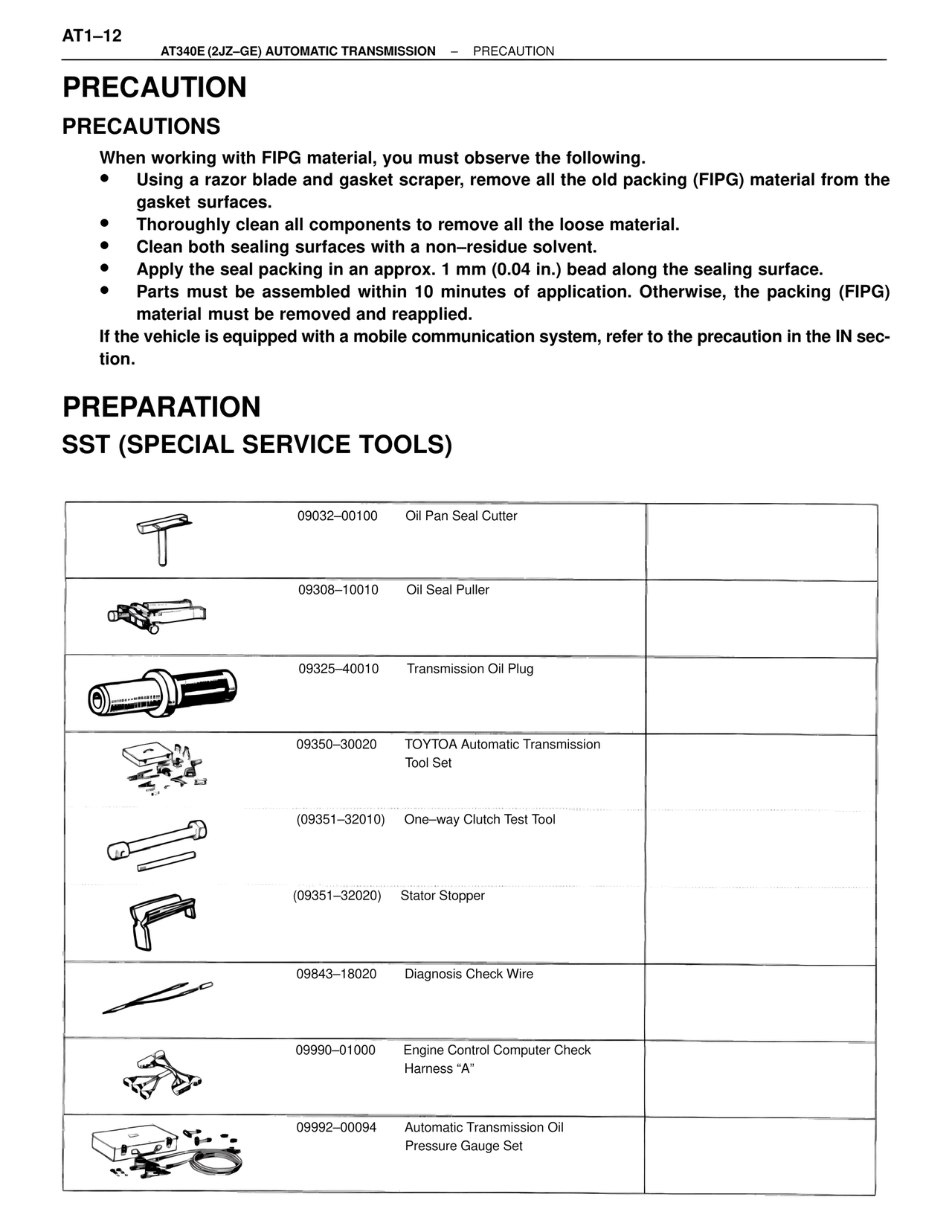

AT1–12
AT340E (2JZ–GE) AUTOMATIC TRANSMISSION – PRECAUTION
PRECAUTION
PRECAUTIONS
When working with FIPG material, you must observe the following.
• Using a razor blade and gasket scraper, remove all the old packing (FIPG) material from the gasket surfaces.
• Thoroughly clean all components to remove all the loose material.
• Clean both sealing surfaces with a non–residue solvent.
• Apply the seal packing in an approx. 1 mm (0.04 in.) bead along the sealing surface.
• Parts must be assembled within 10 minutes of application. Otherwise, the packing (FIPG) material must be removed and reapplied.
If the vehicle is equipped with a mobile communication system, refer to the precaution in the IN section.
PREPARATION
SST (SPECIAL SERVICE TOOLS)
09032–00100 Oil Pan Seal Cutter
09308–10010 Oil Seal Puller
09325–40010 Transmission Oil Plug
09350–30020 TOYTOA Automatic Transmission Tool Set
(09351–32010) One–way Clutch Test Tool
(09351–32020) Stator Stopper
09843–18020 Diagnosis Check Wire
09990–01000 Engine Control Computer Check Harness "A"
09992–00094 Automatic Transmission Oil Pressure Gauge Set
