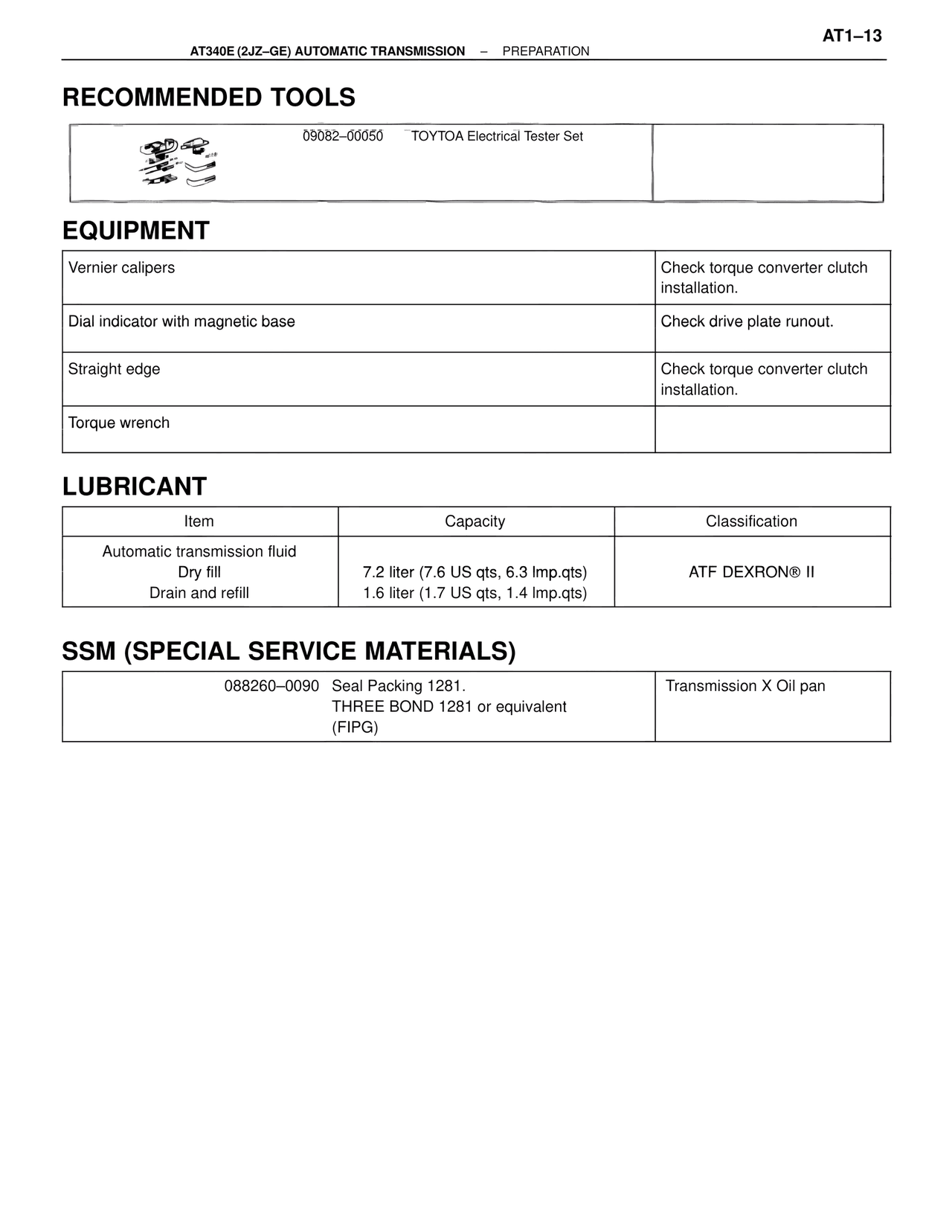

RECOMMENDED TOOLS
09082-00050 TOYTOA Electrical Tester Set
EQUIPMENT
Vernier calipers Check torque converter clutch installation.
Dial indicator with magnetic base Check drive plate runout.
Straight edge Check torque converter clutch installation.
Torque wrench
LUBRICANT
Item Capacity Classification
Automatic transmission fluid
Dry fill 7.2 liter (7.6 US qts, 6.3 Imp.qts) ATF DEXRON® II
Drain and refill 1.6 liter (1.7 US qts, 1.4 Imp.qts)
SSM (SPECIAL SERVICE MATERIALS)
088260-0090 Seal Packing 1281. Transmission X Oil pan
THREE BOND 1281 or equivalent
(FIPG)
