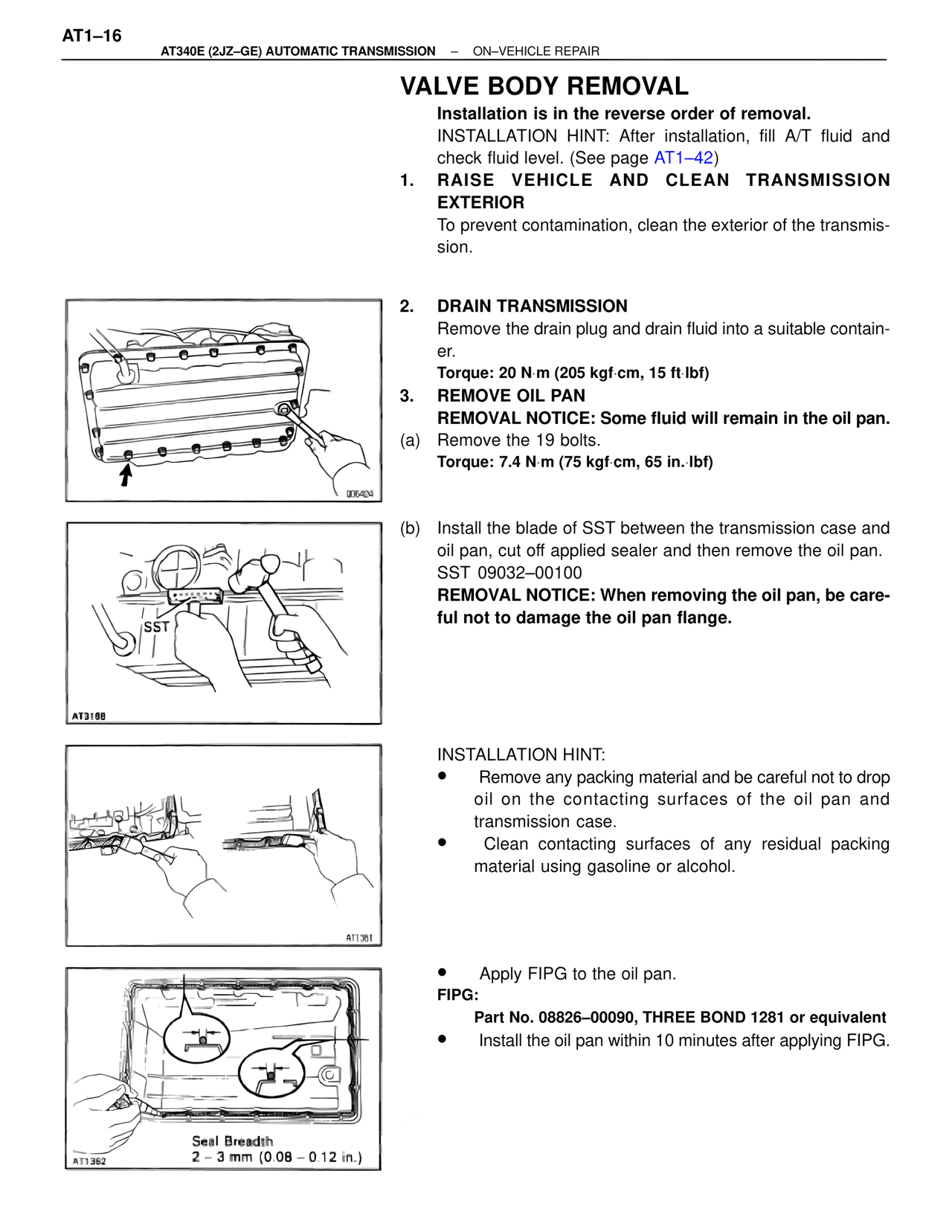

AT340E (2JZ–GE) AUTOMATIC TRANSMISSION – ON–VEHICLE REPAIR
VALVE BODY REMOVAL
Installation is in the reverse order of removal.
INSTALLATION HINT: After installation, fill A/T fluid and check fluid level. (See page AT1–42)
1. RAISE VEHICLE AND CLEAN TRANSMISSION EXTERIOR
To prevent contamination, clean the exterior of the transmission.
2. DRAIN TRANSMISSION
Remove the drain plug and drain fluid into a suitable container.
Torque: 20 N·m (205 kgf·cm, 15 ft·lbf)
3. REMOVE OIL PAN
REMOVAL NOTICE: Some fluid will remain in the oil pan.
(a) Remove the 19 bolts.
Torque: 7.4 N·m (75 kgf·cm, 65 in.·lbf)
006424
(b) Install the blade of SST between the transmission case and oil pan, cut off applied sealer and then remove the oil pan.
SST 09032–00100
REMOVAL NOTICE: When removing the oil pan, be careful not to damage the oil pan flange.
SST
AT3168
AT1361
INSTALLATION HINT:
• Remove any packing material and be careful not to drop oil on the contacting surfaces of the oil pan and transmission case.
• Clean contacting surfaces of any residual packing material using gasoline or alcohol.
• Apply FIPG to the oil pan.
FIPG:
Part No. 08826–00090, THREE BOND 1281 or equivalent
• Install the oil pan within 10 minutes after applying FIPG.
Seal Breadth
2 – 3 mm (0.08 – 0.12 in.)
AT1362
