AT1–19

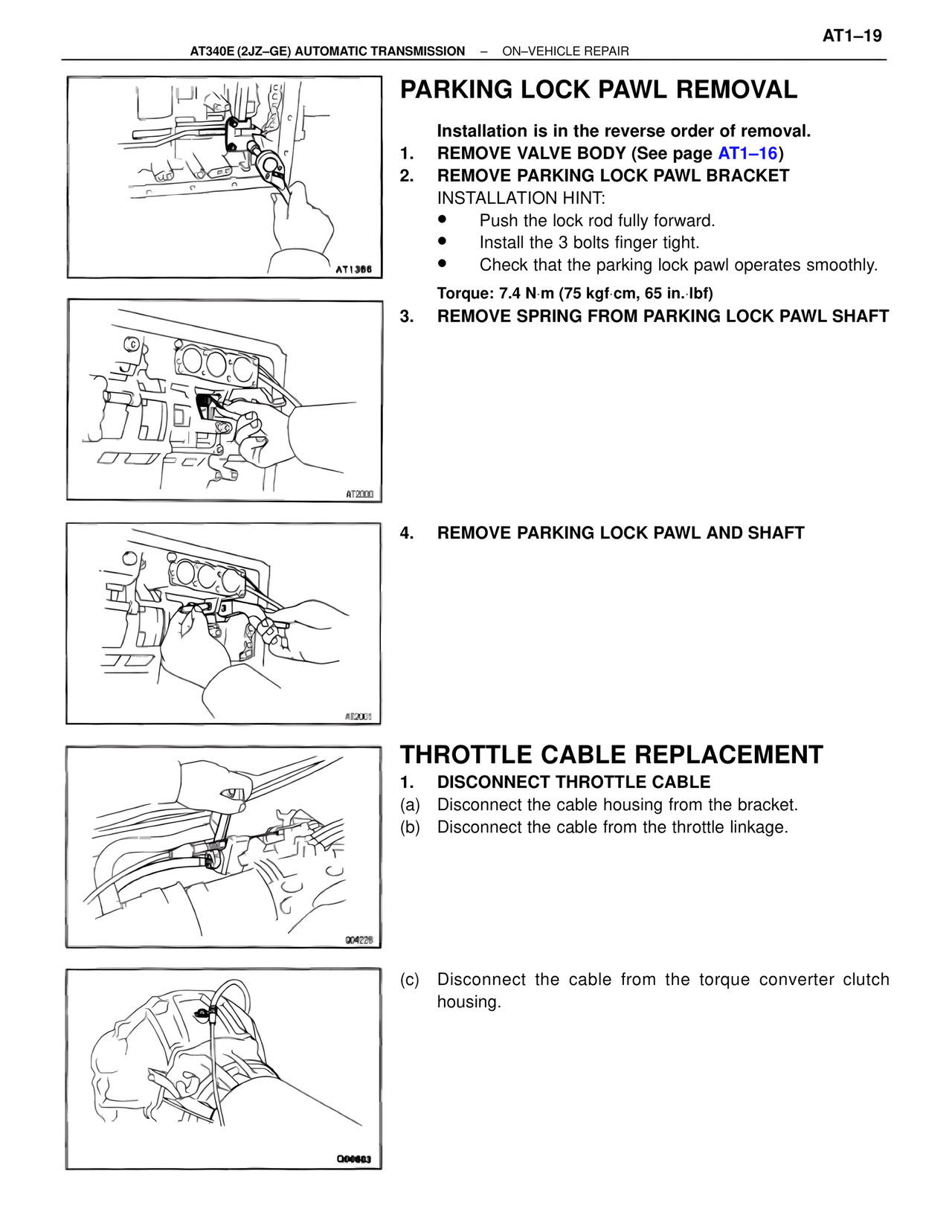

AT340E (2JZ–GE) AUTOMATIC TRANSMISSION – ON–VEHICLE REPAIR
PARKING LOCK PAWL REMOVAL
Installation is in the reverse order of removal.
1. REMOVE VALVE BODY (See page AT1–16)
2. REMOVE PARKING LOCK PAWL BRACKET
INSTALLATION HINT:
• Push the lock rod fully forward.
• Install the 3 bolts finger tight.
• Check that the parking lock pawl operates smoothly.
Torque: 7.4 N·m (75 kgf·cm, 65 in.·lbf)
3. REMOVE SPRING FROM PARKING LOCK PAWL SHAFT
4. REMOVE PARKING LOCK PAWL AND SHAFT
THROTTLE CABLE REPLACEMENT
1. DISCONNECT THROTTLE CABLE
(a) Disconnect the cable housing from the bracket.
(b) Disconnect the cable from the throttle linkage.
(c) Disconnect the cable from the torque converter clutch housing.
AT1388
AT2000
AT2001
Q04226
Q00463
