AT1-23

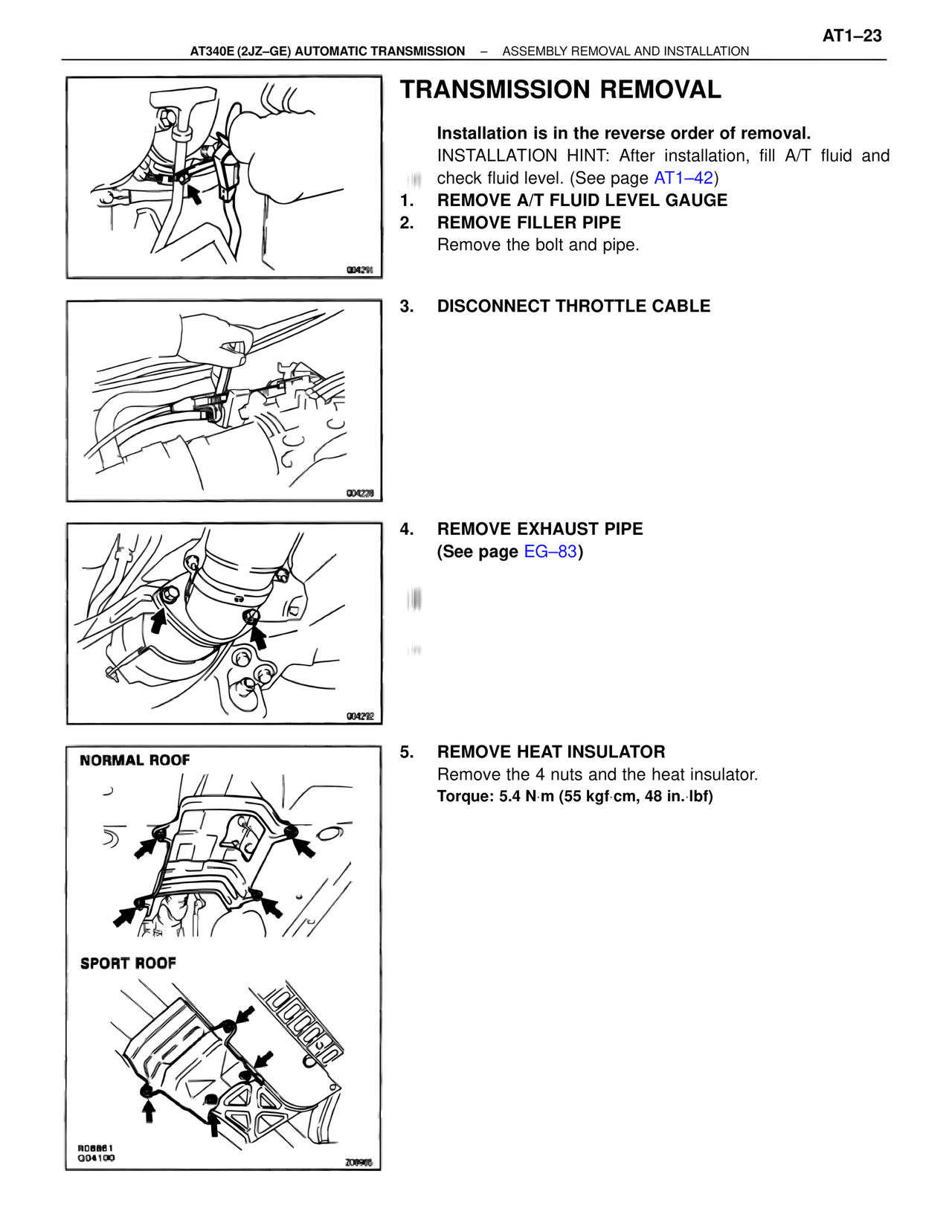

AT340E (2JZ-GE) AUTOMATIC TRANSMISSION – ASSEMBLY REMOVAL AND INSTALLATION
TRANSMISSION REMOVAL
Installation is in the reverse order of removal.
INSTALLATION HINT: After installation, fill A/T fluid and check fluid level. (See page AT1-42)
1. REMOVE A/T FLUID LEVEL GAUGE
2. REMOVE FILLER PIPE
Remove the bolt and pipe.
3. DISCONNECT THROTTLE CABLE
4. REMOVE EXHAUST PIPE
(See page EG-83)
5. REMOVE HEAT INSULATOR
Remove the 4 nuts and the heat insulator.
Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf)
NORMAL ROOF
SPORT ROOF
Q04291
Q04228
Q04292
R08861
Q04100
Z09965
