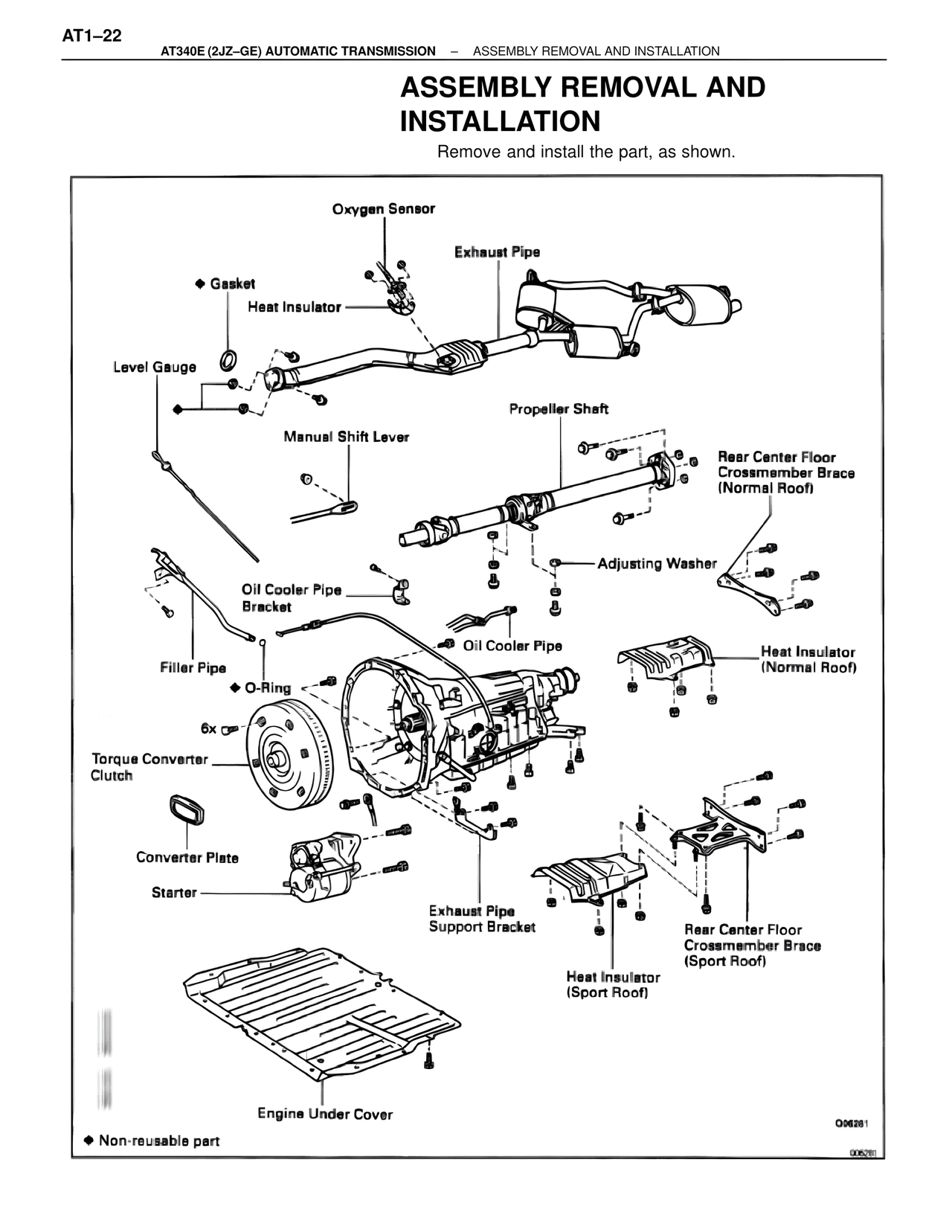

AT1–22 AT340E (2JZ–GE) AUTOMATIC TRANSMISSION – ASSEMBLY REMOVAL AND INSTALLATION ASSEMBLY REMOVAL AND INSTALLATION Remove and install the part, as shown. Oxygen Sensor Exhaust Pipe ♦ Gasket Heat Insulator Level Gauge Propeller Shaft Manual Shift Lever Rear Center Floor Crossmember Brace (Normal Roof) Adjusting Washer Oil Cooler Pipe Bracket Oil Cooler Pipe Heat Insulator (Normal Roof) Filler Pipe ♦ O-Ring 6x Torque Converter Clutch Converter Plate Starter Exhaust Pipe Support Bracket Rear Center Floor Crossmember Brace (Sport Roof) Heat Insulator (Sport Roof) Engine Under Cover ♦ Non-reusable part Q06281
