AT1–25

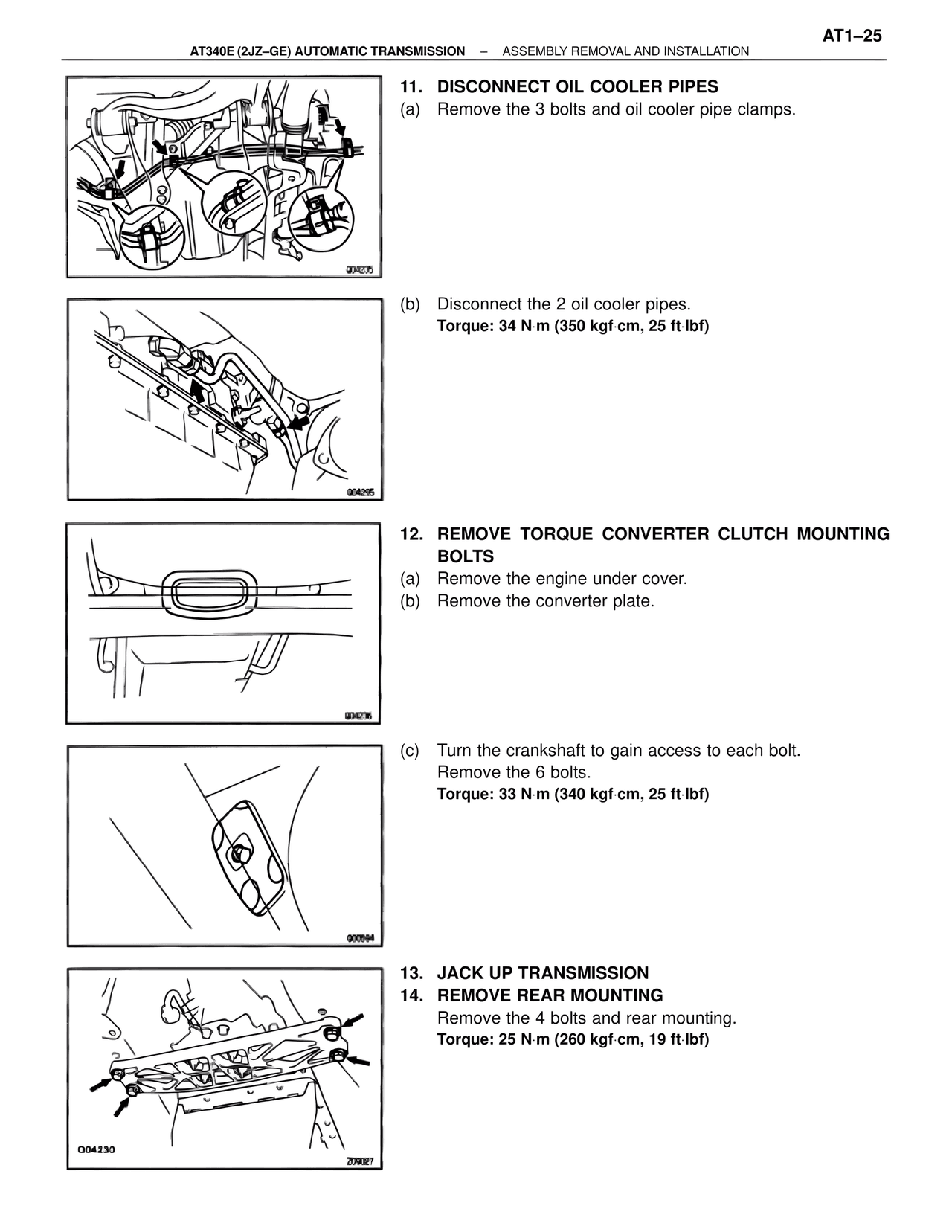

AT340E (2JZ–GE) AUTOMATIC TRANSMISSION – ASSEMBLY REMOVAL AND INSTALLATION

11. DISCONNECT OIL COOLER PIPES
(a) Remove the 3 bolts and oil cooler pipe clamps.

Q04295

(b) Disconnect the 2 oil cooler pipes.
Torque: 34 N·m (350 kgf·cm, 25 ft·lbf)

Q04295

12. REMOVE TORQUE CONVERTER CLUTCH MOUNTING BOLTS
(a) Remove the engine under cover.
(b) Remove the converter plate.

Q04236

(c) Turn the crankshaft to gain access to each bolt.
Remove the 6 bolts.
Torque: 33 N·m (340 kgf·cm, 25 ft·lbf)

Q00594

13. JACK UP TRANSMISSION
14. REMOVE REAR MOUNTING
Remove the 4 bolts and rear mounting.
Torque: 25 N·m (260 kgf·cm, 19 ft·lbf)

Q04230
Z09027
