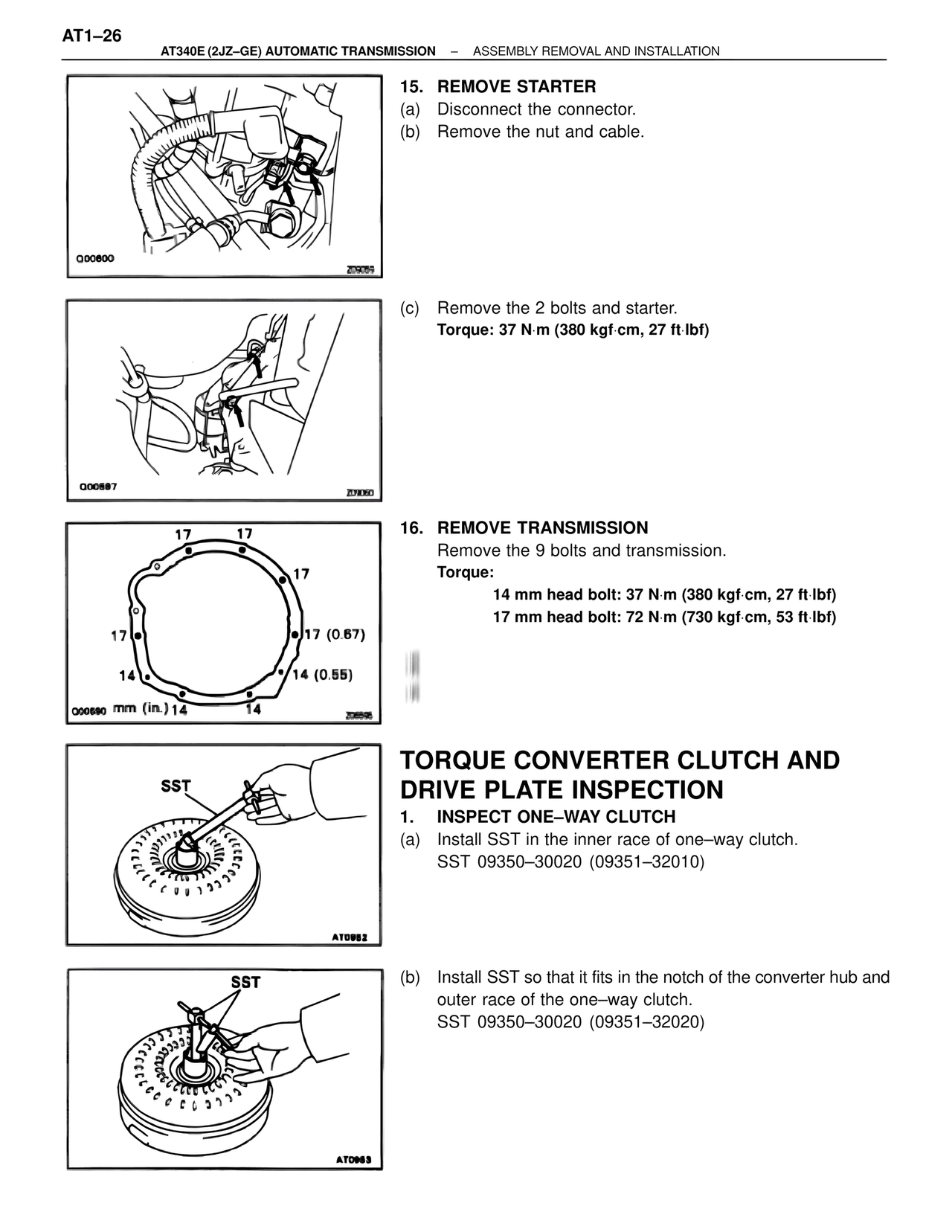

ATGE/A340 Automatic Trans (GE) — Torque Converter Clutch and Drive Plate Inspection, page 26

AT1–26
AT340E (2JZ–GE) AUTOMATIC TRANSMISSION – ASSEMBLY REMOVAL AND INSTALLATION

15. REMOVE STARTER
(a) Disconnect the connector.
(b) Remove the nut and cable.

(c) Remove the 2 bolts and starter.
Torque: 37 N·m (380 kgf·cm, 27 ft·lbf)

16. REMOVE TRANSMISSION
Remove the 9 bolts and transmission.
Torque:
14 mm head bolt: 37 N·m (380 kgf·cm, 27 ft·lbf)
17 mm head bolt: 72 N·m (730 kgf·cm, 53 ft·lbf)

17 17
17
17 (0.67)
14 14 (0.55)
mm (in.) 14 14

TORQUE CONVERTER CLUTCH AND
DRIVE PLATE INSPECTION

1. INSPECT ONE–WAY CLUTCH
(a) Install SST in the inner race of one–way clutch.
SST 09350–30020 (09351–32010)

(b) Install SST so that it fits in the notch of the converter hub and
outer race of the one–way clutch.
SST 09350–30020 (09351–32020)
