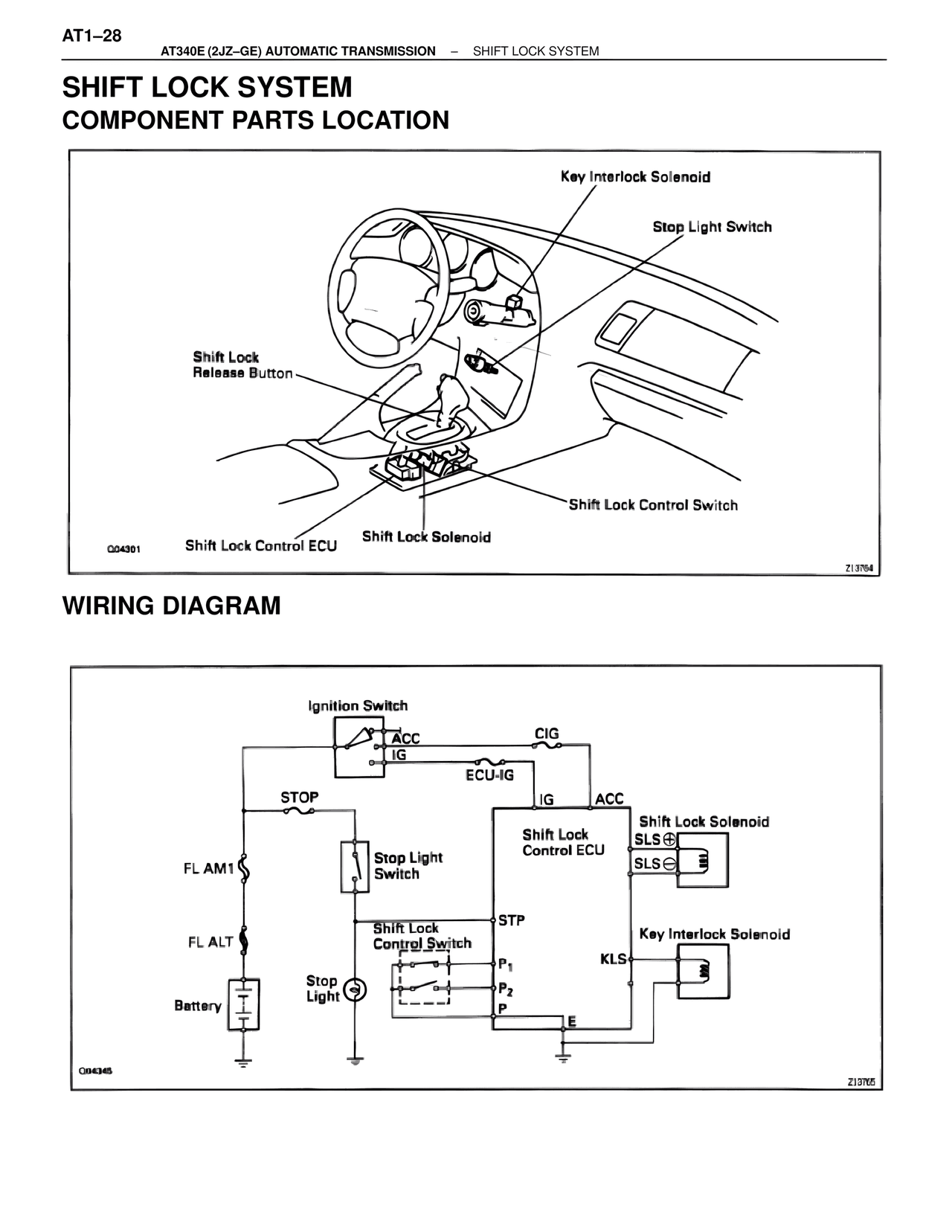

ATGE/A340 Automatic Trans (GE) — Shift Lock System Component Parts Location, page 28

AT1–28
AT340E (2JZ–GE) AUTOMATIC TRANSMISSION – SHIFT LOCK SYSTEM

SHIFT LOCK SYSTEM
COMPONENT PARTS LOCATION

Key Interlock Solenoid
Stop Light Switch
Shift Lock
Release Button
Shift Lock Control Switch
Q04301
Shift Lock Control ECU
Shift Lock Solenoid
Z13764

WIRING DIAGRAM

Ignition Switch
ACC
CIG
IG
ECU-IG
STOP
IG
ACC
Shift Lock Solenoid
FL AM1
Stop Light
Switch
Shift Lock
Control ECU
SLS⊕
SLS⊖
FL ALT
Shift Lock
Control Switch
STP
Key Interlock Solenoid
Battery
Stop
Light
P1
KLS
P2
P
E
Q04345
Z13765
