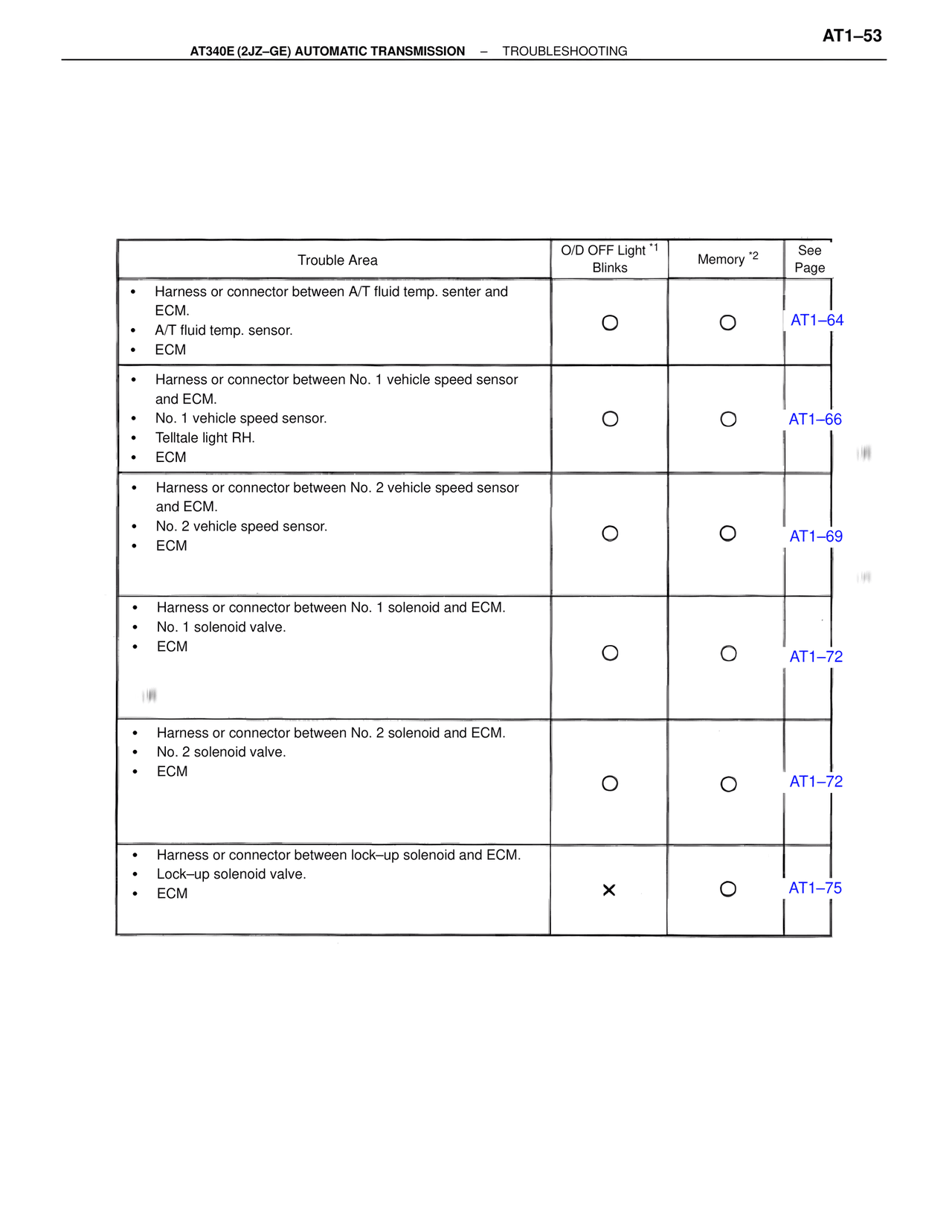

AT1-53
AT340E (2JZ-GE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING
Trouble Area | O/D OFF Light *1 Blinks | Memory *2 | See Page
• Harness or connector between A/T fluid temp. senter and ECM.
• A/T fluid temp. sensor.
• ECM
O | O | AT1-64
• Harness or connector between No. 1 vehicle speed sensor and ECM.
• No. 1 vehicle speed sensor.
• Telltale light RH.
• ECM
O | O | AT1-66
• Harness or connector between No. 2 vehicle speed sensor and ECM.
• No. 2 vehicle speed sensor.
• ECM
O | O | AT1-69
• Harness or connector between No. 1 solenoid and ECM.
• No. 1 solenoid valve.
• ECM
O | O | AT1-72
• Harness or connector between No. 2 solenoid and ECM.
• No. 2 solenoid valve.
• ECM
O | O | AT1-72
• Harness or connector between lock-up solenoid and ECM.
• Lock-up solenoid valve.
• ECM
X | O | AT1-75
