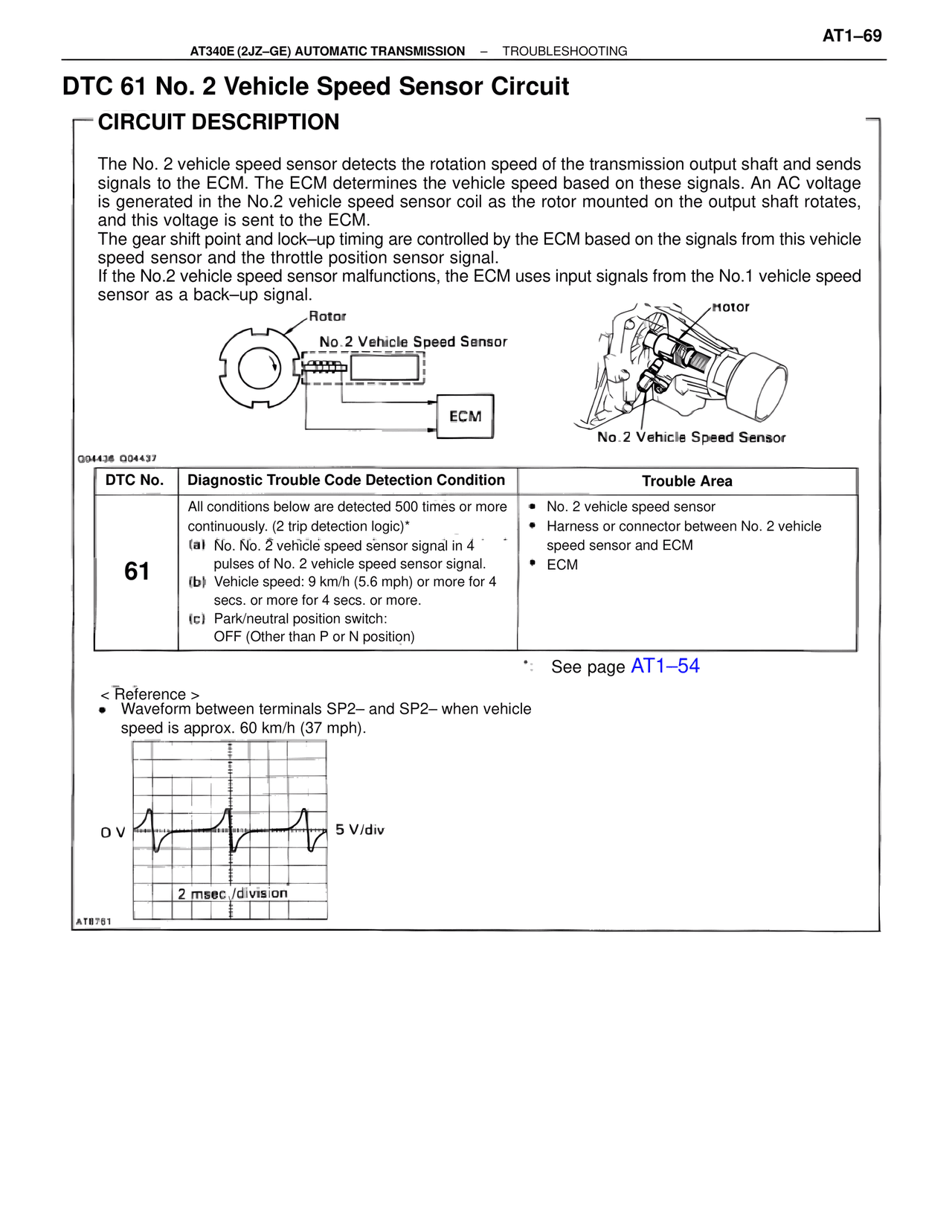

DTC 61 No. 2 Vehicle Speed Sensor Circuit — MK4 Supra A340 Automatic Trans (GE), page 69
100%
AT1–69 AT340E (2JZ–GE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING DTC 61 No. 2 Vehicle Speed Sensor Circuit CIRCUIT DESCRIPTION The No. 2 vehicle speed sensor detects the rotation speed of the transmission output shaft and sends signals to the ECM. The ECM determines the vehicle speed based on these signals. An AC voltage is generated in the No.2 vehicle speed sensor coil as the rotor mounted on the output shaft rotates, and this voltage is sent to the ECM. The gear shift point and lock–up timing are controlled by the ECM based on the signals from this vehicle speed sensor and the throttle position sensor signal. If the No.2 vehicle speed sensor malfunctions, the ECM uses input signals from the No.1 vehicle speed sensor as a back–up signal. Rotor No. 2 Vehicle Speed Sensor ECM Motor No. 2 Vehicle Speed Sensor Q04436 Q04437 DTC No. | Diagnostic Trouble Code Detection Condition | Trouble Area All conditions below are detected 500 times or more continuously. (2 trip detection logic)* (a) No. No. 2 vehicle speed sensor signal in 4 pulses of No. 2 vehicle speed sensor signal. (b) Vehicle speed: 9 km/h (5.6 mph) or more for 4 secs. or more for 4 secs. or more. (c) Park/neutral position switch: OFF (Other than P or N position) 61 • No. 2 vehicle speed sensor • Harness or connector between No. 2 vehicle speed sensor and ECM • ECM *: See page AT1–54 < Reference > • Waveform between terminals SP2– and SP2– when vehicle speed is approx. 60 km/h (37 mph). 0 V 5 V/div 2 msec./division AT8761
