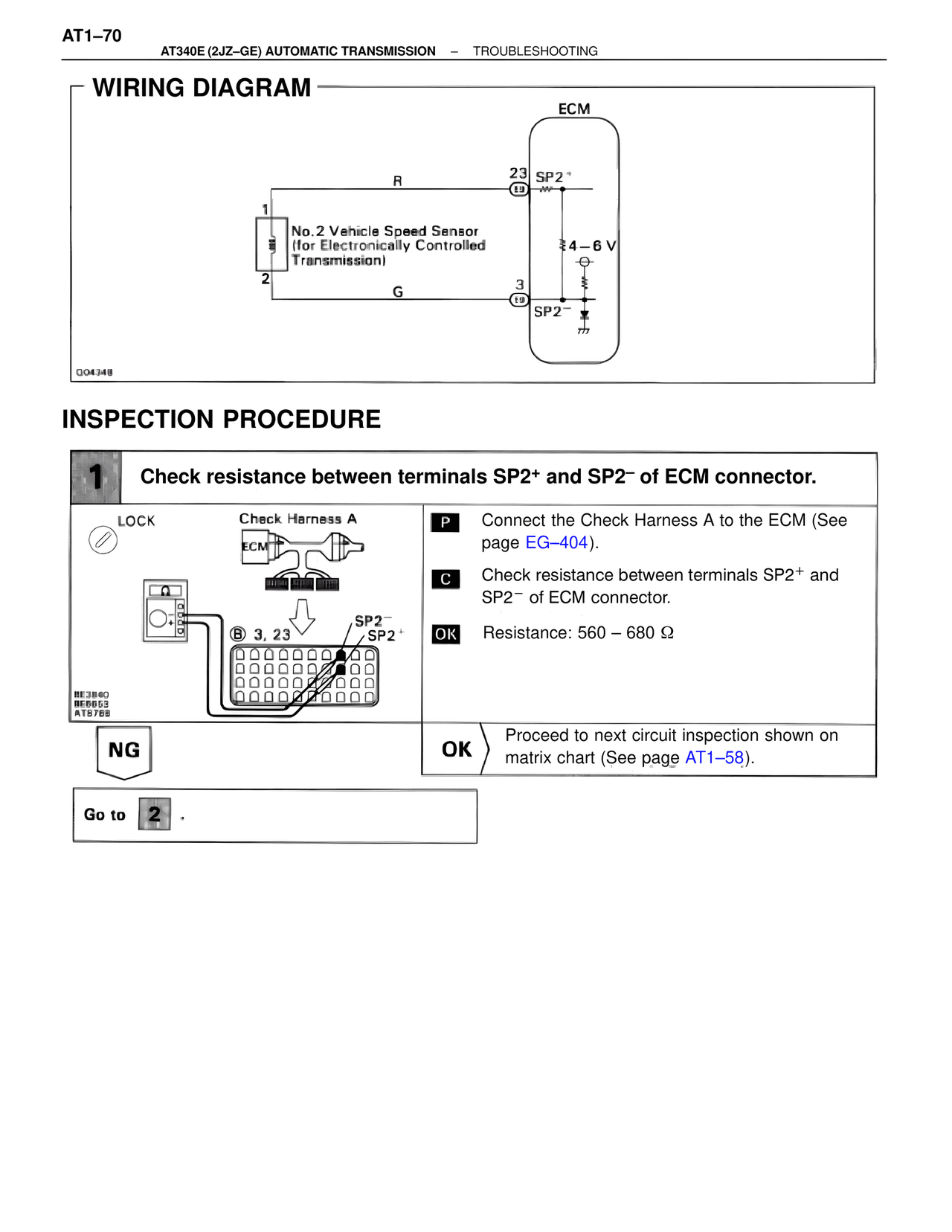

AT1–70
AT340E (2JZ–GE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING

WIRING DIAGRAM

ECM

R
23 SP2+
19

1
No.2 Vehicle Speed Sensor
(for Electronically Controlled
Transmission)
2

4–6 V

G
3
19
SP2–

G04348

INSPECTION PROCEDURE

1 Check resistance between terminals SP2+ and SP2– of ECM connector.

LOCK Check Harness A
ECM

B 3, 23 SP2–
SP2+

BE3840
BE6653
AT8788

P Connect the Check Harness A to the ECM (See page EG–404).

C Check resistance between terminals SP2+ and SP2– of ECM connector.

OK Resistance: 560 – 680 Ω

NG OK Proceed to next circuit inspection shown on matrix chart (See page AT1–58).

Go to 2 .
