AT340E (2JZ-GE) AUTOMATIC TRANSMISSION – OPERATION

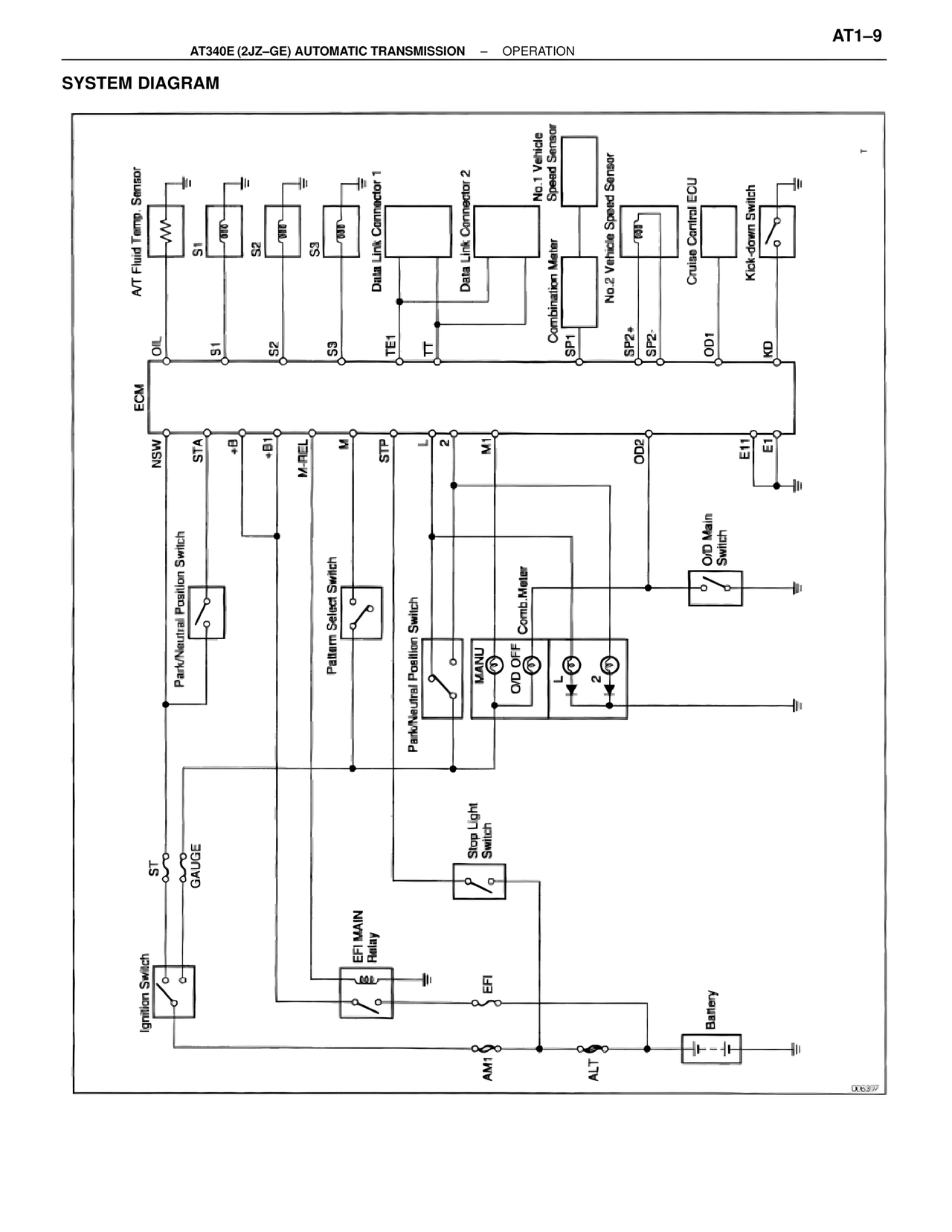

SYSTEM DIAGRAM
A/T Fluid Temp. Sensor
S1
S2
S3
Data Link Connector 1
Data Link Connector 2
No.1 Vehicle Speed Sensor
Combination Meter
No.2 Vehicle Speed Sensor
Cruise Control ECU
Kick-down Switch
OIL
S1
S2
S3
TE1
TT
SP1
SP2+
SP2-
OD1
KD
ECM
NSW
STA
+B
+B1
M-REL
M
STP
N
2
M1
OD2
E11
E1
Park/Neutral Position Switch
Pattern Select Switch
Park/Neutral Position Switch
Comb.Meter
MANU
O/D OFF
L
2
O/D Main Switch
Stop Light Switch
ST
GAUGE
EFI MAIN Relay
EFI
Ignition Switch
AM1
ALT
Battery
