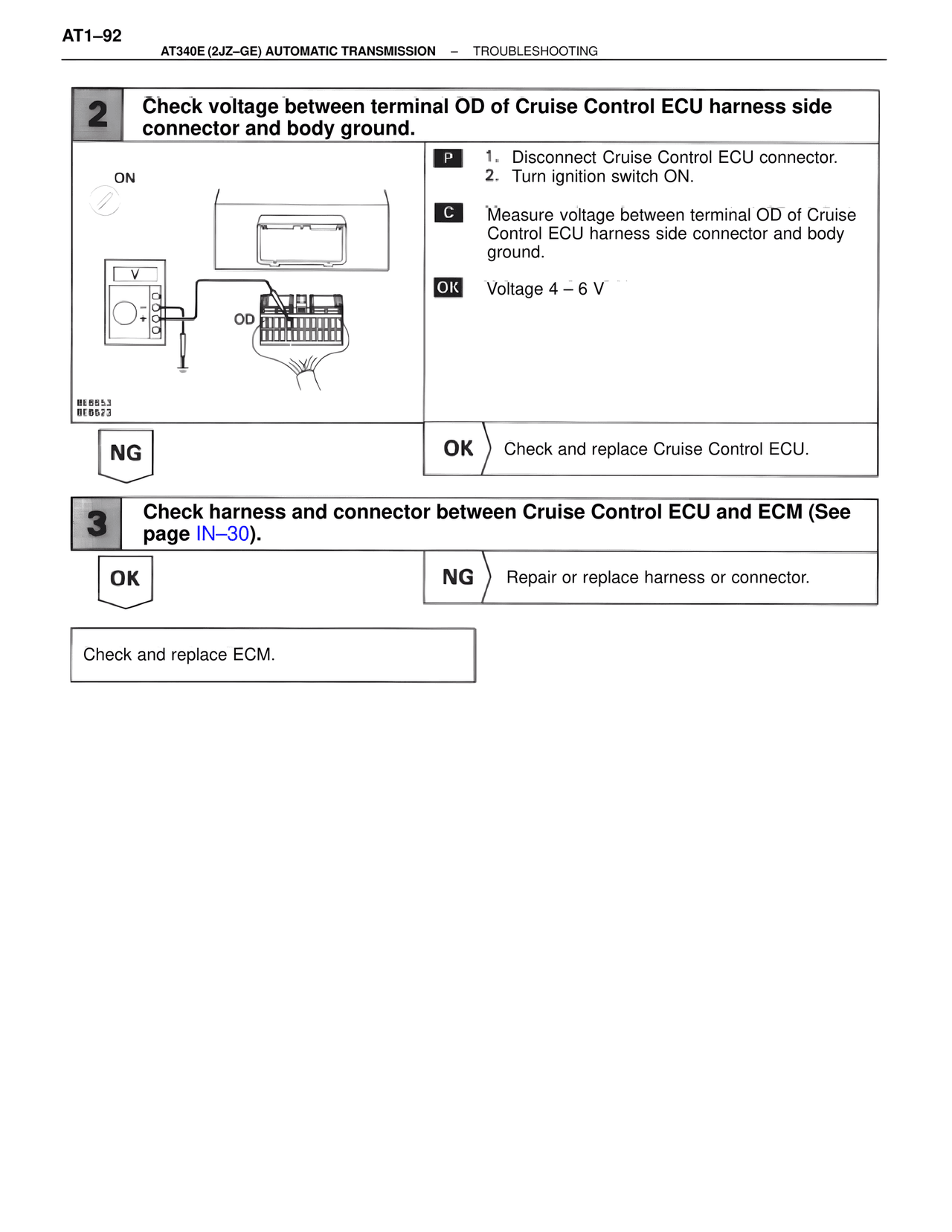

AT1–92
AT340E (2JZ–GE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING
2 Check voltage between terminal OD of Cruise Control ECU harness side connector and body ground.
ON
P 1. Disconnect Cruise Control ECU connector.
2. Turn ignition switch ON.
C Measure voltage between terminal OD of Cruise Control ECU harness side connector and body ground.
OK Voltage 4 – 6 V
OD
BE6653
BE6623
NG OK Check and replace Cruise Control ECU.
3 Check harness and connector between Cruise Control ECU and ECM (See page IN–30).
OK NG Repair or replace harness or connector.
Check and replace ECM.
