AT1-93

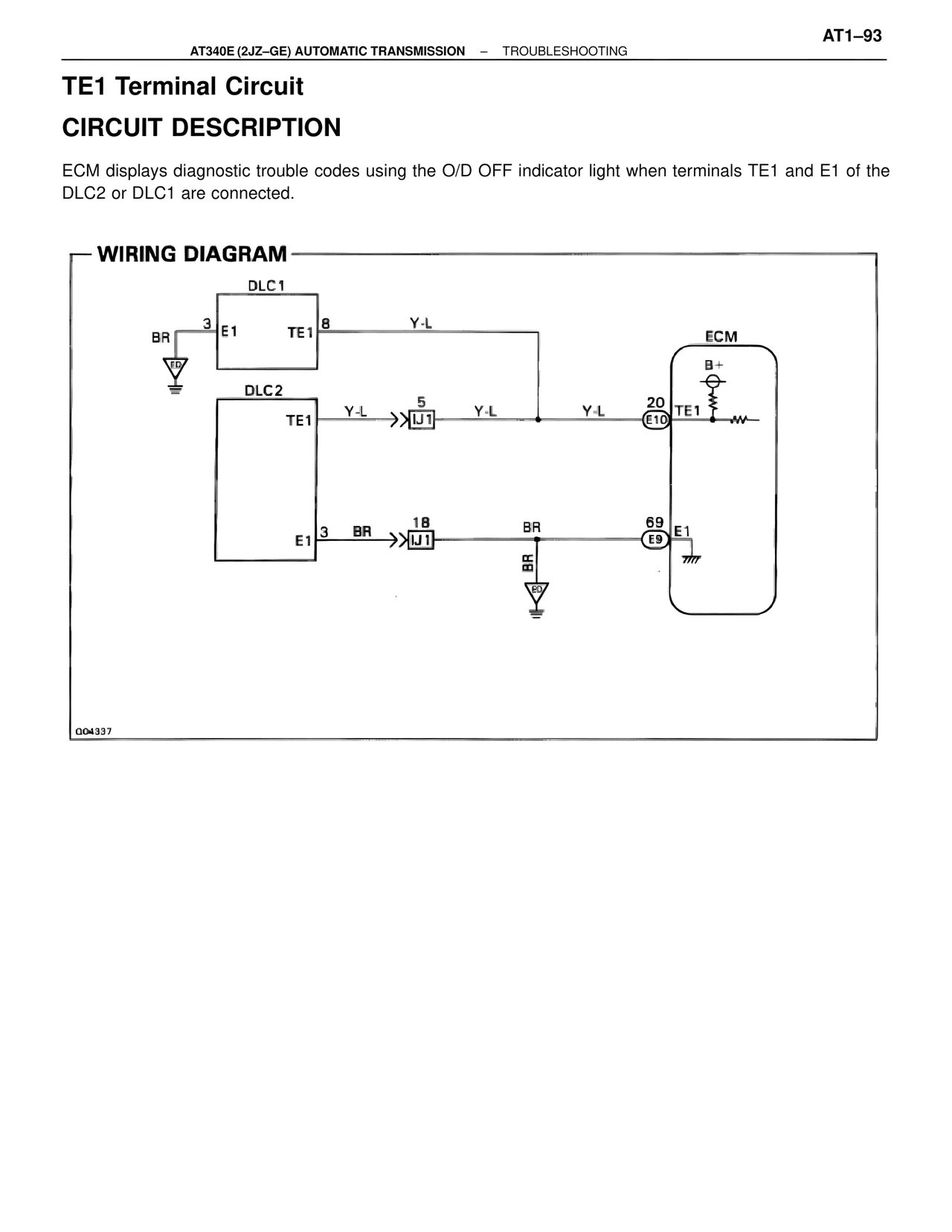

AT340E (2JZ-GE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING

TE1 Terminal Circuit

CIRCUIT DESCRIPTION

ECM displays diagnostic trouble codes using the O/D OFF indicator light when terminals TE1 and E1 of the DLC2 or DLC1 are connected.

WIRING DIAGRAM

DLC1
3  E1     TE1  8          Y-L                    ECM
BR                                               B+
                                          20  TE1
DLC2                                      E10
TE1     Y-L    5   Y-L      Y-L
                IJ1

E1   3   BR    18   BR            69  E1
              IJ1               E9
         BR

Q04337
