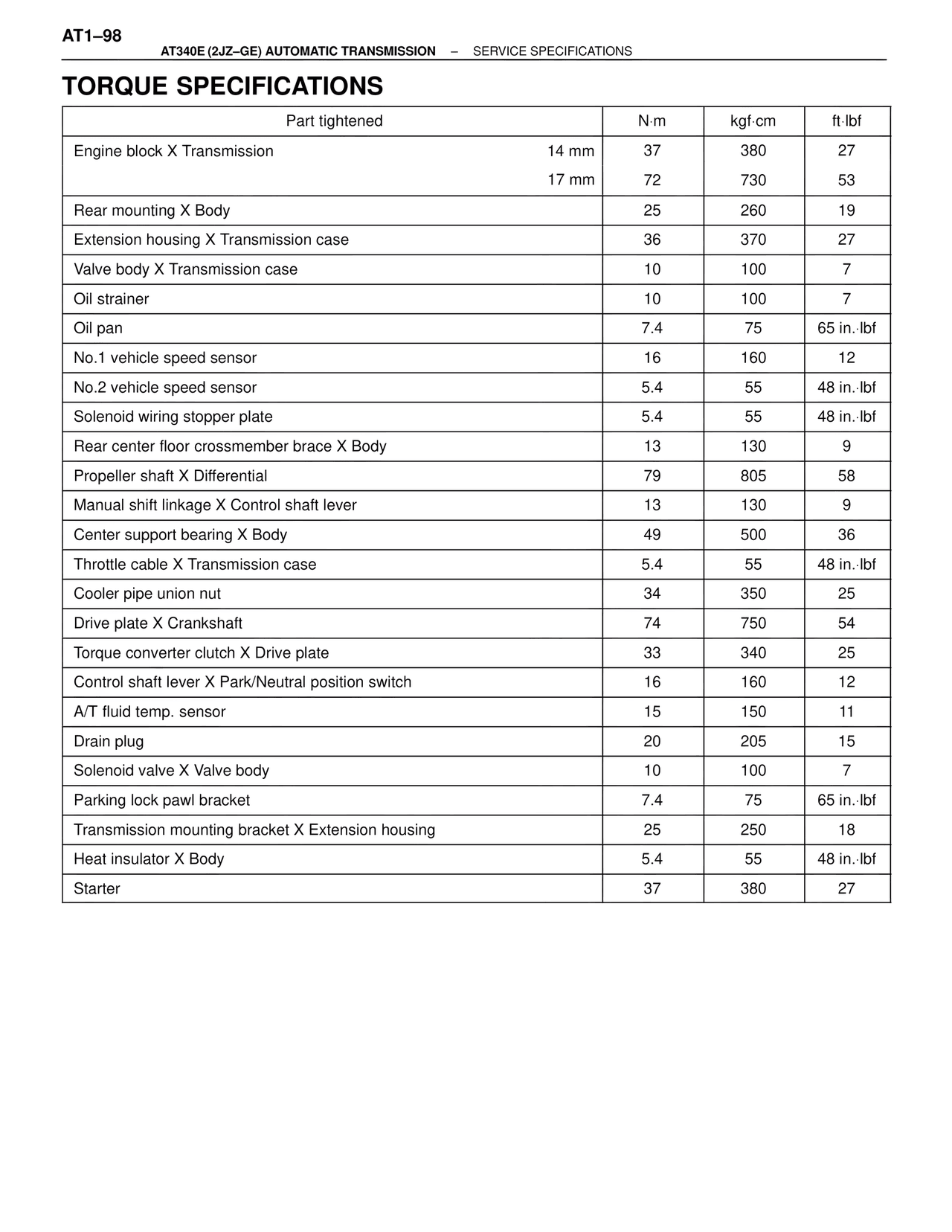

AT1–98
AT340E (2JZ–GE) AUTOMATIC TRANSMISSION – SERVICE SPECIFICATIONS
TORQUE SPECIFICATIONS
Part tightened | N·m | kgf·cm | ft·lbf
Engine block X Transmission 14 mm 37 380 27
17 mm 72 730 53
Rear mounting X Body 25 260 19
Extension housing X Transmission case 36 370 27
Valve body X Transmission case 10 100 7
Oil strainer 10 100 7
Oil pan 7.4 75 65 in.·lbf
No.1 vehicle speed sensor 16 160 12
No.2 vehicle speed sensor 5.4 55 48 in.·lbf
Solenoid wiring stopper plate 5.4 55 48 in.·lbf
Rear center floor crossmember brace X Body 13 130 9
Propeller shaft X Differential 79 805 58
Manual shift linkage X Control shaft lever 13 130 9
Center support bearing X Body 49 500 36
Throttle cable X Transmission case 5.4 55 48 in.·lbf
Cooler pipe union nut 34 350 25
Drive plate X Crankshaft 74 750 54
Torque converter clutch X Drive plate 33 340 25
Control shaft lever X Park/Neutral position switch 16 160 12
A/T fluid temp. sensor 15 150 11
Drain plug 20 205 15
Solenoid valve X Valve body 10 100 7
Parking lock pawl bracket 7.4 75 65 in.·lbf
Transmission mounting bracket X Extension housing 25 250 18
Heat insulator X Body 5.4 55 48 in.·lbf
Starter 37 380 27
