AT1–97

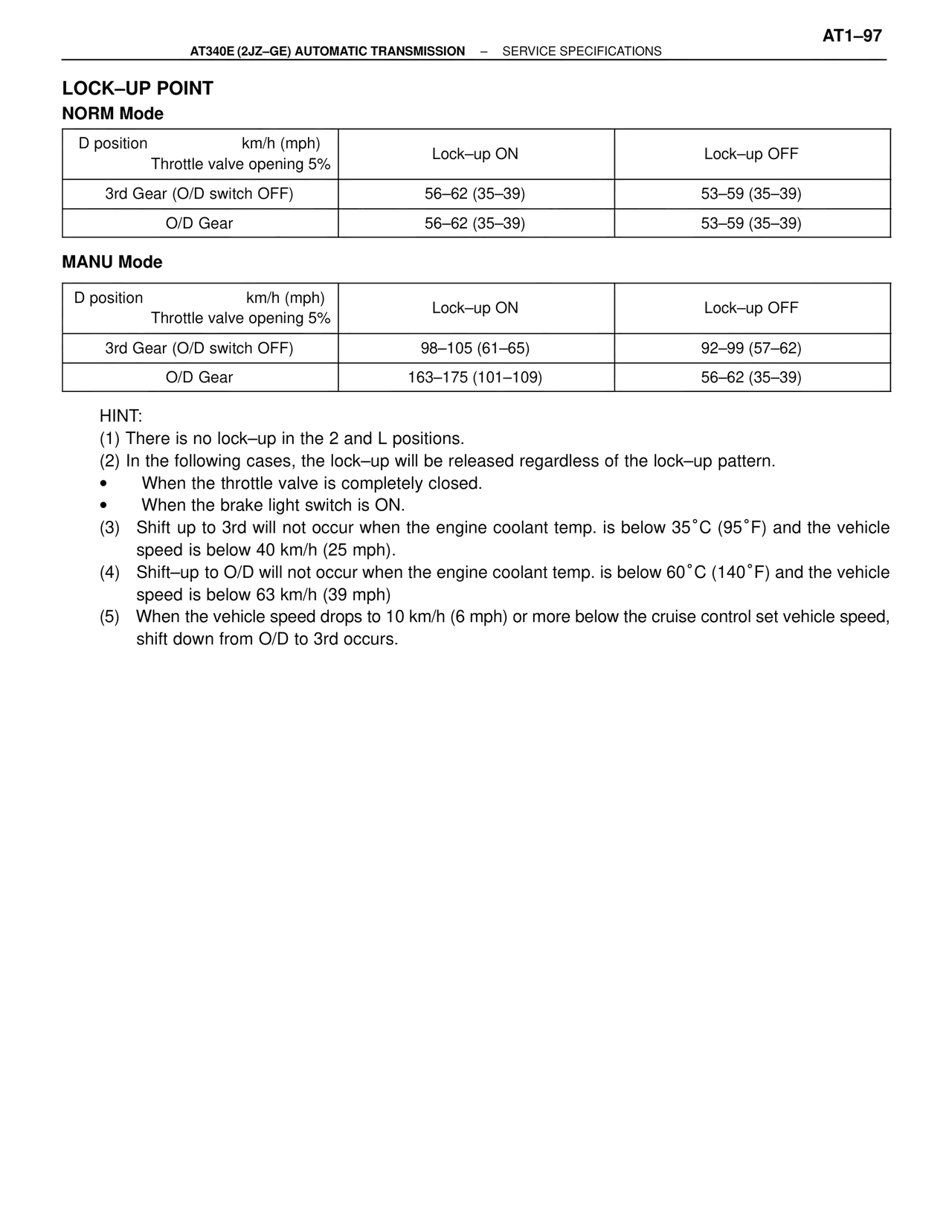

AT340E (2JZ–GE) AUTOMATIC TRANSMISSION – SERVICE SPECIFICATIONS
LOCK–UP POINT
NORM Mode
D position km/h (mph)
Throttle valve opening 5% Lock–up ON Lock–up OFF
3rd Gear (O/D switch OFF) 56–62 (35–39) 53–59 (35–39)
O/D Gear 56–62 (35–39) 53–59 (35–39)
MANU Mode
D position km/h (mph)
Throttle valve opening 5% Lock–up ON Lock–up OFF
3rd Gear (O/D switch OFF) 98–105 (61–65) 92–99 (57–62)
O/D Gear 163–175 (101–109) 56–62 (35–39)
HINT:
(1) There is no lock–up in the 2 and L positions.
(2) In the following cases, the lock–up will be released regardless of the lock–up pattern.
• When the throttle valve is completely closed.
• When the brake light switch is ON.
(3) Shift up to 3rd will not occur when the engine coolant temp. is below 35˚C (95˚F) and the vehicle
speed is below 40 km/h (25 mph).
(4) Shift–up to O/D will not occur when the engine coolant temp. is below 60˚C (140˚F) and the vehicle
speed is below 63 km/h (39 mph)
(5) When the vehicle speed drops to 10 km/h (6 mph) or more below the cruise control set vehicle speed,
shift down from O/D to 3rd occurs.
