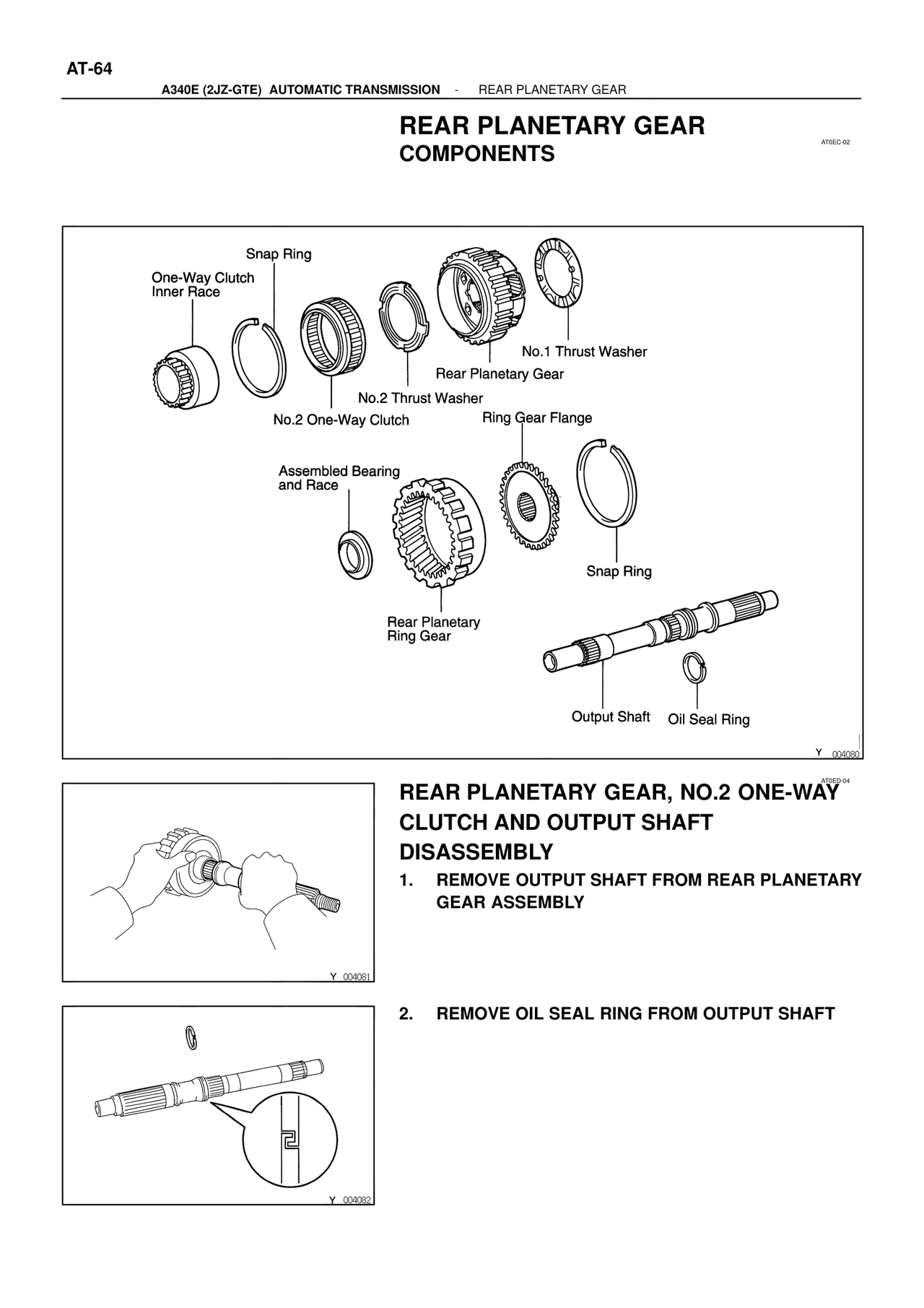

ATR/ATM Unit Repair — Rear Planetary Gear Components, page 101

AT-64
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - REAR PLANETARY GEAR

REAR PLANETARY GEAR COMPONENTS
AT0EC-02

Snap Ring
One-Way Clutch Inner Race
No.2 One-Way Clutch
No.2 Thrust Washer
Rear Planetary Gear
No.1 Thrust Washer
Ring Gear Flange
Assembled Bearing and Race
Rear Planetary Ring Gear
Snap Ring
Output Shaft
Oil Seal Ring

Y 004080

AT0ED-04
REAR PLANETARY GEAR, NO.2 ONE-WAY CLUTCH AND OUTPUT SHAFT DISASSEMBLY

1. REMOVE OUTPUT SHAFT FROM REAR PLANETARY GEAR ASSEMBLY

Y 004081

2. REMOVE OIL SEAL RING FROM OUTPUT SHAFT

Y 004082
