AT-65

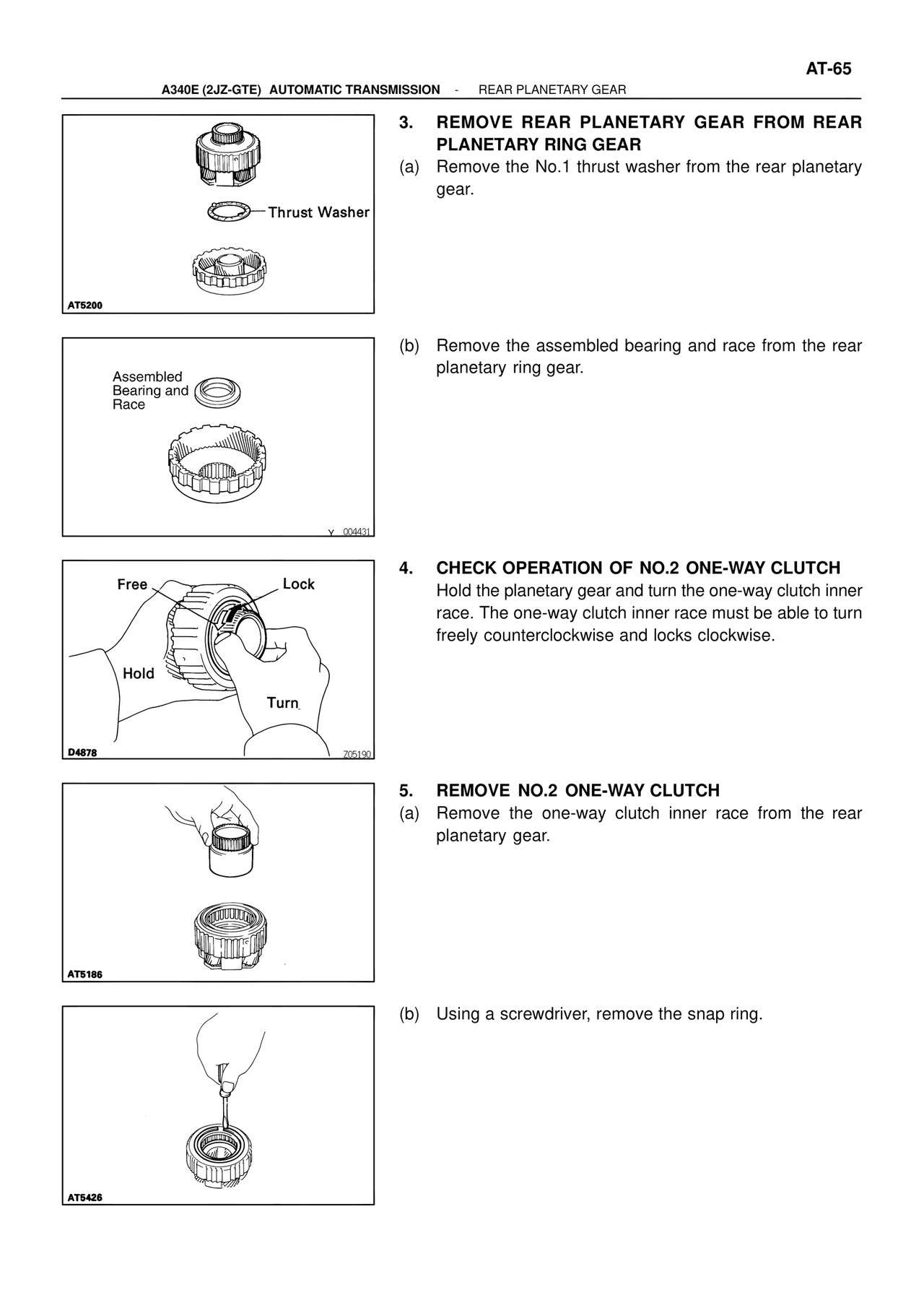

A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - REAR PLANETARY GEAR
Thrust Washer
AT5200
Assembled
Bearing and
Race
y_004421
Free
Lock
Hold
Turn
D4878
Z05190
AT5186
AT5426
3. REMOVE REAR PLANETARY GEAR FROM REAR
PLANETARY RING GEAR
(a) Remove the No.1 thrust washer from the rear planetary
gear.
(b) Remove the assembled bearing and race from the rear
planetary ring gear.
4. CHECK OPERATION OF NO.2 ONE-WAY CLUTCH
Hold the planetary gear and turn the one-way clutch inner
race. The one-way clutch inner race must be able to turn
freely counterclockwise and locks clockwise.
5. REMOVE NO.2 ONE-WAY CLUTCH
(a) Remove the one-way clutch inner race from the rear
planetary gear.
(b) Using a screwdriver, remove the snap ring.
