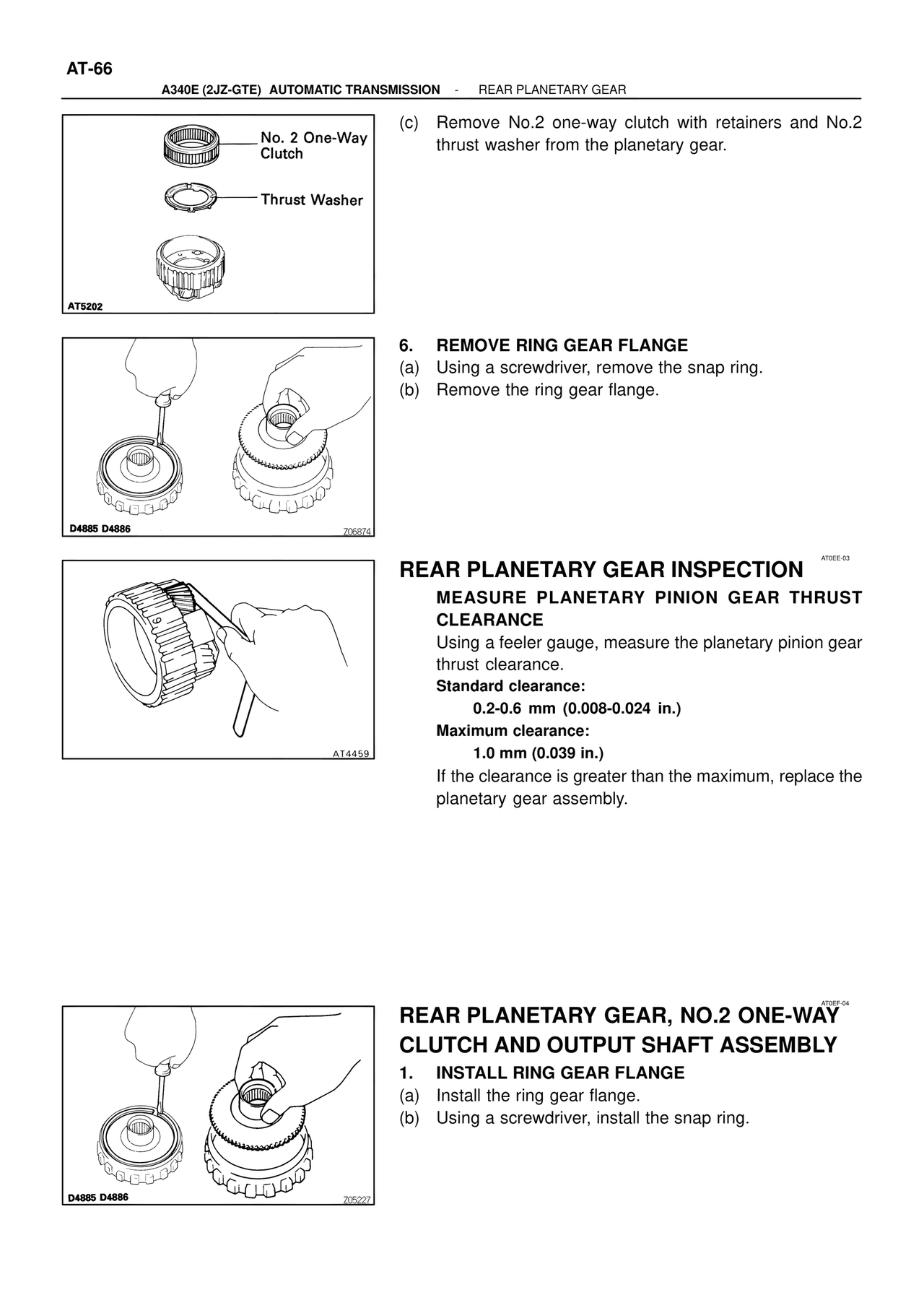

ATR/ATM Unit Repair — Rear Planetary Gear Inspection, page 103

AT-66
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - REAR PLANETARY GEAR

No. 2 One-Way
Clutch

Thrust Washer

AT5202

(c) Remove No.2 one-way clutch with retainers and No.2
thrust washer from the planetary gear.

D4885 D4886                                                Z06874

6. REMOVE RING GEAR FLANGE
(a) Using a screwdriver, remove the snap ring.
(b) Remove the ring gear flange.

AT4459

REAR PLANETARY GEAR INSPECTION                    AT0EE-03
    MEASURE PLANETARY PINION GEAR THRUST
    CLEARANCE
    Using a feeler gauge, measure the planetary pinion gear
    thrust clearance.
    Standard clearance:
        0.2-0.6 mm (0.008-0.024 in.)
    Maximum clearance:
        1.0 mm (0.039 in.)
    If the clearance is greater than the maximum, replace the
    planetary gear assembly.

REAR PLANETARY GEAR, NO.2 ONE-WAY              AT0EF-04
CLUTCH AND OUTPUT SHAFT ASSEMBLY
1. INSTALL RING GEAR FLANGE
(a) Install the ring gear flange.
(b) Using a screwdriver, install the snap ring.

D4885 D4886                                                Z05227
